| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | NAIKE |
| Model Number: | NK-RR-0001 |
| Minimum Order Quantity: | 1.0 Cubic Meter/Cubic Meters (Min. Order) |
| Price: | CN¥2,097.18 - CN¥4,194.36 |
| Packaging Details: | 1 cbm jumbo bag or customized |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 3000 Cubic Meter/Cubic Meters per Year |
| Shape: | Ring, Ring | Classification: | Tower Ring, Tower Packing, Column Packing |
|---|---|---|---|
| Dimension: | 16, 25, 38, 50, 76, 80, 90mm | Bulk Density: | >400kg/m3 |
| Application: | Tower Packing | Materail: | SS304 304L 316 316L 410 |
| Highlight: | Metal Raschig Ring,Raschig Ring Metal Tower Packing,Industry Rasching Ring |
||

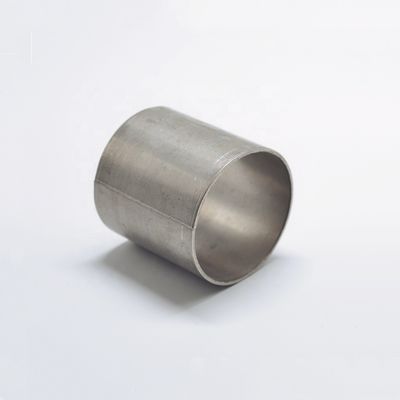

Metal Raschig Ring manufacturer
Metal Raschig Ring manufacturer metal tower packing chemical fertilizer industry rasching ring
Metal rasching ring is made of materi als like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Technical data
| Size mm |
Bulk density kg/m3 |
Number per m3 |
Surface area m2/m3 |
Free volume % |
| 15×15×0.3 | 379 | 230000 | 350 | 95 |
| 25×25×0.4 | 318 | 51000 | 216 | 96 |
| 25×25×0.5 | 400 | 51000 | 220 | 95 |
| 35×35×0.8 | 430 | 19000 | 150 | 93 |
| 50×50×0.5 | 203 | 6500 | 106 | 97.4 |
| 50×50×0.7 | 285 | 6500 | 108 | 96.4 |
| 50×50×0.8 | 325 | 7000 | 109 | 95 |
| 76×76×0.8 | 212 | 1830 | 69 | 97.3 |
| 80×80×1.2 | 300 | 1600 | 65 | 96 |
| 90×90×1.0 | 236 | 1160 | 62 | 97 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Material available:
carbon steel, stainless steel including 304, 304L, 410,316, 316L.
1. We promise to reply your inquiry within 24 hours.
2. OEM & ODM service for your unique idea with absolute convenience.
3. Experienced salesmen with professional industry knowledge.
4. We value our business credit, promise to keep your company information confidential
5. Please add my Trade Manager: cn220021241 for prompt service.
