| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | NAIKE |
| Model Number: | NK-MSP |
| Minimum Order Quantity: | 1.0 Cubic Meter/Cubic Meters (Min. Order) |
| Price: | CN¥3,501.90 - CN¥10,505.70 |
| Packaging Details: | BY carton box or wrap with film on pallet |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 3000 Cubic Meter/Cubic Meters per Year |
| Shape: | Plate | Diameter: | 0.1-12m |
|---|---|---|---|
| Classification: | Metal Structured Packing | Product Name: | Stainless 304 Metal Steel Structured Packing |
| Liquid Lood: | 0.2-.00M3/M2.H |

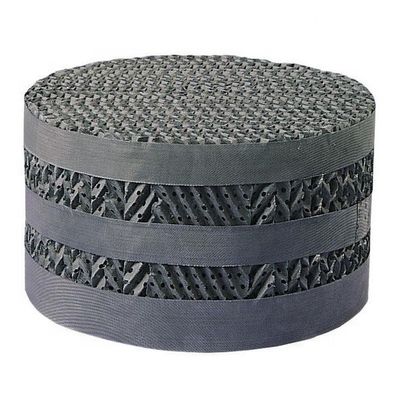

Stainless 304 Metal Steel Structured Packing
Sulzer is famous brand in chemical packing industry. Sulzer register a patent 'Mellapak' for metal structured packing, Naike is the appointed China supplier for Sulzer Mellapak.
Metal Structured Packing introduction
(Metal Perforated Plate Corrugated Packing) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
Material
Metal perforated plate corrugated packing is available in a wide range of materials, including stainless steels, 304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.
Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
The technical specification:
|
Type |
specific surface are m2/m3 |
Void Volume % |
Heaping Weight Kg/m3 |
Wave Height mm |
Theoretical plate number m-1 |
Δ P Pa/m |
Max F-factor m/s(kg/m3)0.5 |
| 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3.0 |
| 250Y | 250 | 97 | 170-200 | 12.5 | 2.0-3.0 | 200 | 2.6 |
| 350Y | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 |
1.8
|
