| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001 |
| Model Number: | 250Y,500Y,700Y |
| Minimum Order Quantity: | 1 cubic meter/cubic meters(Min. order) |
| Price: | $800.00 - $1,500.00/ cubic meter | |
| Packaging Details: | Conventional packing |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 300 set / sets per Month |
| Usage: | Filter | Type: | Black Wire Mesh, York Mesh 431 Demister Pad |
|---|---|---|---|
| Material: | SS304,SS316,SS316L | Hole Shape: | Round |
| Product Name: | Stainless Steel Metal Structured Packing Column Packing | Keyword1: | Column Packing |
| Keyword2: | Metal Structured Packing | Keyword3: | Stainless Steel Structured Packing |
| Highlight: | Stainless Steel Metal Structured Packing,Structured Packing Column,Column Packing For Distillation |
||

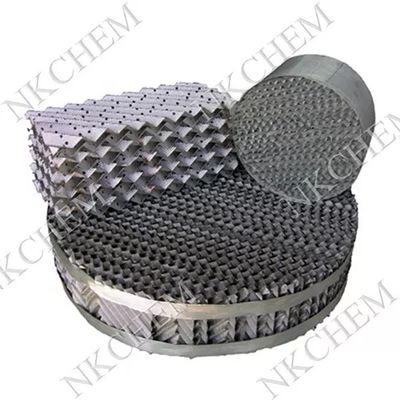

Stainless Steel Metal Structured Packing Column Packing For Distillation Column (Stainless Steel Metal Structured Packing Column Packing For Distillation Column) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
Stainless Steel Metal Structured Packing Column Packing For Distillation Column detail:

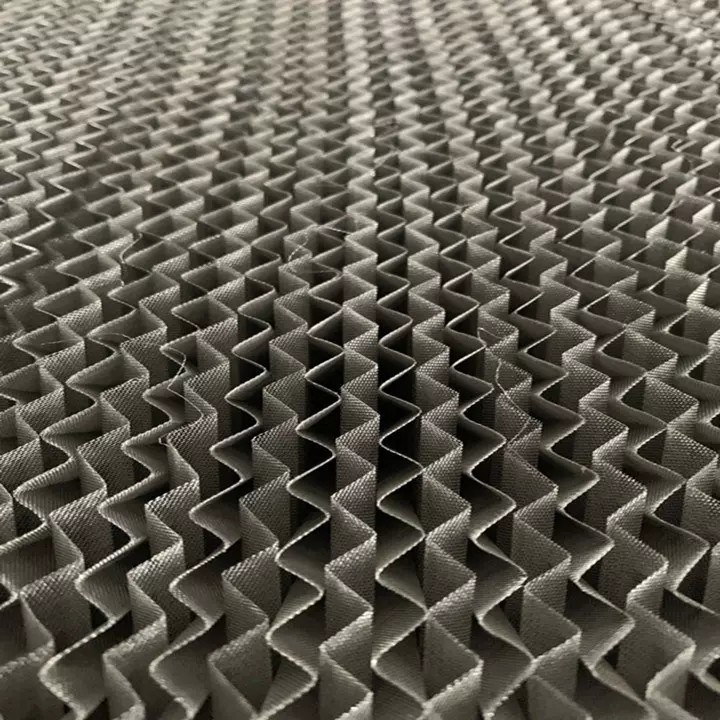

Stainless Steel Metal Structured Packing Column Packing For Distillation Column (Stainless Steel Metal Structured Packing Column Packing For Distillation Column) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
Material
Stainless Steel Metal Structured Packing Column Packing For Distillation Column is available in a wide range of materials, including stainless steels, 304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.
Application
Stainless Steel Metal Structured Packing Column Packing For Distillation Column with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
The technical specification:
|
Type |
specific surface are m2/m3 |
Void Volume % |
Heaping Weight Kg/m3 |
Wave Height mm |
Theoretical plate number m-1 |
Δ P Pa/m |
Max F-factor m/s(kg/m3)0.5 |
| 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3.0 |
| 250Y | 250 | 97 | 170-200 | 12.5 | 2.0-3.0 | 200 | 2.6 |
| 350Y | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 |
