| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NAIKE |
| Certification: | ISO9001:2000 |
| Model Number: | NK-MSP |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $500.00 - $1,100.00/ cubic meter |
| Packaging Details: | carton box, wooden box |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 3000 cubic meters per Month |
| Material: | SS304, SS316, SS304l, SS316L | Application: | Petrochemical Industry,Chemical Industry,gasoline |
|---|---|---|---|
| Type: | Column Internal | Size: | Customized |
| Usage: | Towers,vacuum Distillation Tower,Towers &RTO Media,vapor Liquid Seperation | Package: | Wooden Box,Ton Bags+Palletize,On Request |
| Shape: | Customized Shape,Cyliner | Response Time: | Within 24 Hours |
| After-sales Service Provided: | Yes | Advantages: | Big Operation Flexibility |
| Classification: | Metal Structured Packing |

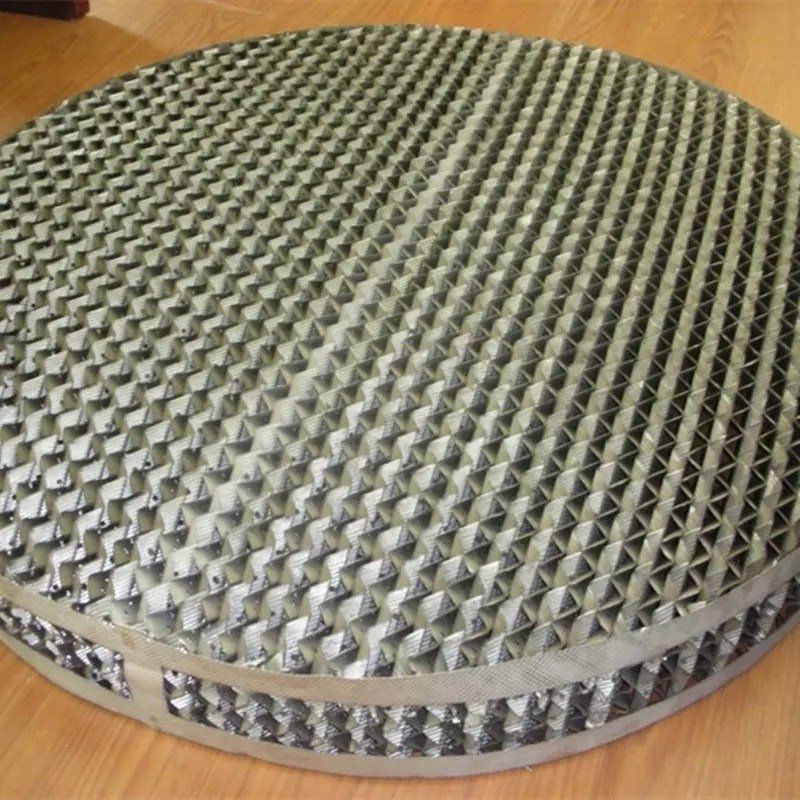

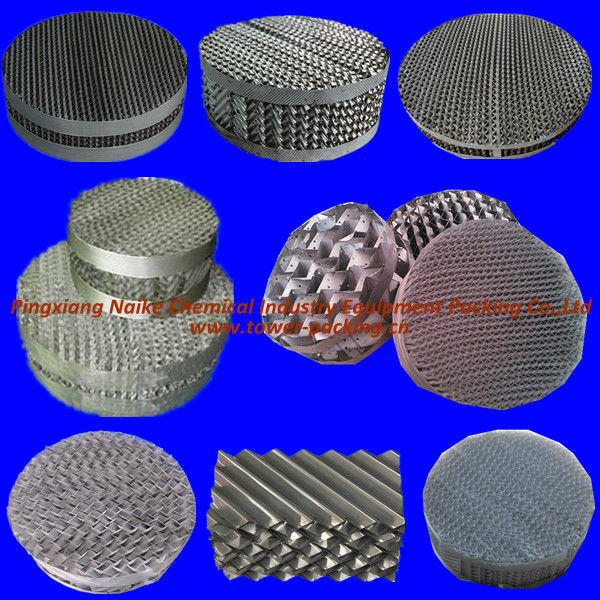

Metal structured packing detail:
Metallic Structured Packing is typically to improve contact between two phases in a chemical or similar process. It can be used in a chemical reactor, a distillation process, or a scrubber.
The metallic structured packing refers to a range of specially designed materials for use in absorption and distillation columns and chemical reactors.
Structured packings typically consist of thin corrugated metal plates or gauzes arranged in a way that they force fluids to take complicated paths through the column, thereby creating a large surface area for contact between different phases.
MECHANISM:
The principle of structured packing operation is based on having a large number of obstacles intercepting entrained droplets in a vapour flow.Structured columns packing consist of metal wire mesh with corrugated sheets which are aligned and placed vertically.
The wire structure slopes are reversed in other sheets stacked with alternating 90 degree orientation of each layer resulting in inclined flow passages and a relatively high surface area.
This arrangement allows thin liquid films to be continuously spread across the tower as liquid flows through the packing. Capillary action and high surface areas result in maximum exposure to high mass transfer efficiency.
Characteristic Indexes of Metallic Structured Packings
| Name | Type | Surface area m2/m3 | Void fraction % | Bulk density kg/m3 | Wave height mm | Nt m-1 | P Pa/m | Max.F-factor m/s.(kg/m3)0.5 |
| Perforated corrugated plate | 125 | 125 | 98 | 85-100 | 25.4 | 1-2 | 150 | 3 |
| 250 | 250 | 97 | 170-200 | 12.5 | 2--3 | 200 | 2.6 | |
| 350 | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 | |
| 500 | 500 | 92 | 360-400 | 6.3 | 4-5 | 180 | 1.8 | |
| Pricked & corrugated plate | 700Y | 700 | 85 | 240-280 | 4.5 | 5.0-7.0 | 900 | 1.6 |
| 500Y | 500 | 93 | 170-200 | 6.3 | 3.0-4.0 | 200 | 2.1 | |
| 250Y | 250 | 97 | 85-100 | 12.5 | 2.5-3.0 | 300 | 2.6 | |
| Corrugated plate gauze | SW-1 | 650 | 91.6 | 140 | 4.5 | 6-8 | 260-460 | 1.4-2.2 |
| SW-2 | 450 | 95.5 | 360 | 6.5 | 4-5 | 220-240 | 1.6-1.8 | |
| Corrugated wire gauze | 250(AX) | 250 | 97 | 70 | 12.5 | 2.5-3.0 | 25-120 | 2.5-3.5 |
| 500(BX) | 500 | 95 | 140 | 6.3 | 4-5 | 200 | 2.0-2.4 | |
| 700(CY) | 700 | 87 | 180 | 4.5 | 8-10 | 670 | 1.5-2.0 |
APPLICATION:
Our service at promise:
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent info.
5. pls add my TradeManager :cn1000279791 for prompt service
6.www.tower-packing.cn
1. We promise to reply your inquiry within 24hours.
2. OEM & ODM service for your unique idea with absolute convenience.
3. Experienced salesmen with professional industry knowledge.
4. We value our business credit, promise to keep your company information confidential
5. Please add my Trade Manager: cn209777336 or Skype alice_pan1017 for prompt service.
1.Can I negotiate the price?
Yes, we may consider the discounts for mixed goods or bulk orders of individual products
2.How long for the lead time?
In generally, it only need 7-15 workdays.
3.Can I get the sample for free?
Yes,500g sample is free and buyer should pay for the freight.
4.Can I visit your factory before make the order ?
Yes, warmly welcome. Our factory is located in No.91 Anyuan West street, Pingxiang City, Jiangxi Province. Before you come, please let us know your schedule, your arriving time, we can come to pick you up.
5. What information should I offer to you if I want to know the price?
- Application/Usage
- Size
- Material
- Quantities you need;
- Package term
- Delivery time
- Payment term:FOB or CIF
- Destination.
