| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001:2008 |
| Model Number: | metal pall ring |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $200.00 - $300.00/ cubic meter |
| Packaging Details: | jumbo bag with pallet |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 3000 Cubic Meter/Cubic Meters per Year SS304 SS316 Metal Super Mini ring for mass transfer Packaging & Delivery |
| Material: | 304,304L,410,316,316L,carbon Steel | Product Name: | Metal Super Mini Ring |
|---|---|---|---|
| Application: | Mass Transfer | Other Names: | Supermini Ring, Metal Improved Inner Arc Ring |
| Size: | 16mm,25mm,38mm,50mm,76mm | Key Selling Points: | Good Liquid And Gas Distribution |
| Applicable Industries: | Manufacturing Plant | ||
| Highlight: | Scrubber Packing Pall Ring,Tower Packing Pall Ring,Luxury Metal Pall Ring |
||

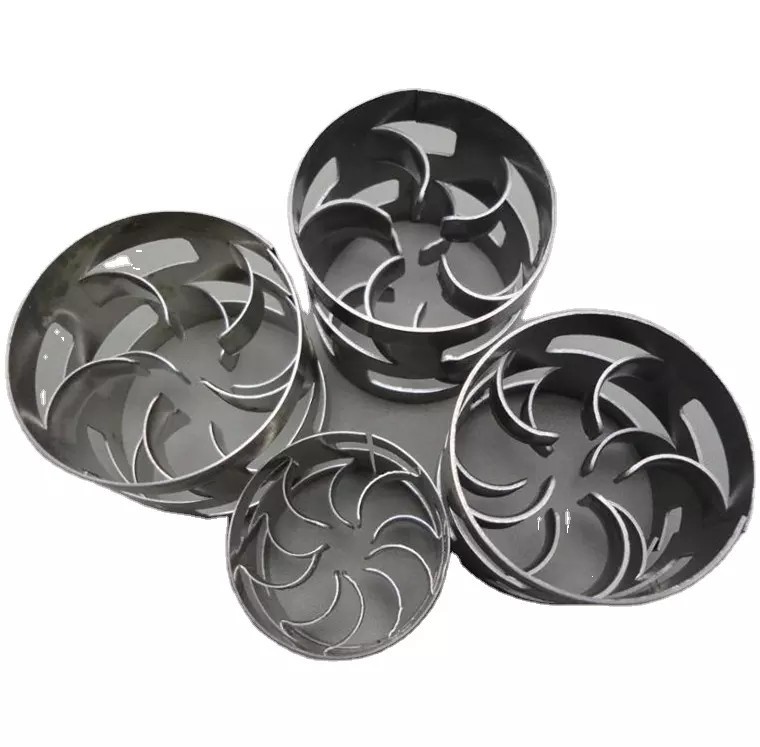

Metal Scrubber Packing Pall Ring for tower Packing
Metal Scrubber Packing Pall Ring for tower Packing for Tower Packing are an advancement on the Raschig Ring, with similar cylindrical dimensions but with two rows of punched out holes, with fingers or webs turned into the centre of cylinder. Metal Scrubber Packing Pall Ring for tower Packing has the impact of significantly increasing the performance of the packing, both in terms of throughput, efficiency and pressure drop.
| Specification of Metal Scrubber Packing Pall Ring for tower Packing | ||||||||
| Name | Normal |
Diameter*Height* Thickness |
Surface area | Void space | Bulk density | No.elements |
Packing factor |
|
| mm | mm | m2/m3 | % | kg/m3 | per/m3 | m-1 | ||
| Metal Scrubber Packing Pall Ring for tower Packing | ø16 | 16*16*0.4 | 239 | 92.8 | 365 | 205000 | 299 | |
| ø25 | 25*25*0.6 | 219 | 93.4 | 427 | 55900 | 269 | ||
| ø38 | 38*38*0.8 | 129 | 94.5 | 365 | 13000 | 153 | ||
| ø50 | 50*50*1.0 | 112.3 | 94.9 | 395 | 6500 | 131 | ||
Note:
The above data is reference to material stainless steel in the material thickness shown.
Other material avaiable:carbon steel,aluminum,bronze,stainless steel including 304,304L,410,316,316L.
| Advantage of Metal Scrubber Packing Pall Ring for tower Packing | |||||
| High Loading & Throughput | |||||
| Easily Wettable | |||||
| High Resistance of Fouling and Temperature Applications | |||||
| Small Specific Gravity | |||||
| Mechanically Robust & Suitable for Deeper Beds | |||||
| Good Liquid and Gas Distribution | |||||
| High Mass Transfer Efficiency |
| Application of Metal Scrubber Packing Pall Ring for tower Packing | |||||
| Various Separation and Absorption Applications | |||||
| Absorption and Stripping Services | |||||
| Steam Stripping | |||||
| Quench Towers | |||||
| Direct Contact Cooling | |||||
| Reaction Towers | |||||
| Distillation Columns | |||||
| Tower Packing |
