SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment

Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001:2008
Model Number: metal pall ring
Minimum Order Quantity: 1 cubic meter
Price: $800.00 - $1,200.00/ cubic meter
Packaging Details: jumbo bag with pallet
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 3000 Cubic Meter/Cubic Meters per Year SS304 SS316 Metal Super Mini ring for mass transfer Packaging & Delivery
Material: 304,304L,410,316,316L,carbon Steel Product Name: Metal Super Mini Ring
Application: Mass Transfer Other Names: Supermini Ring, Metal Improved Inner Arc Ring
Size: 16mm,25mm,38mm,50mm,76mm Key Selling Points: Good Liquid And Gas Distribution
Applicable Industries: Manufacturing Plant
Highlight:

316 Super Raschig Ring

,

Super Raschig Ring Packing

,

SS304 316 Super Raschig Ring

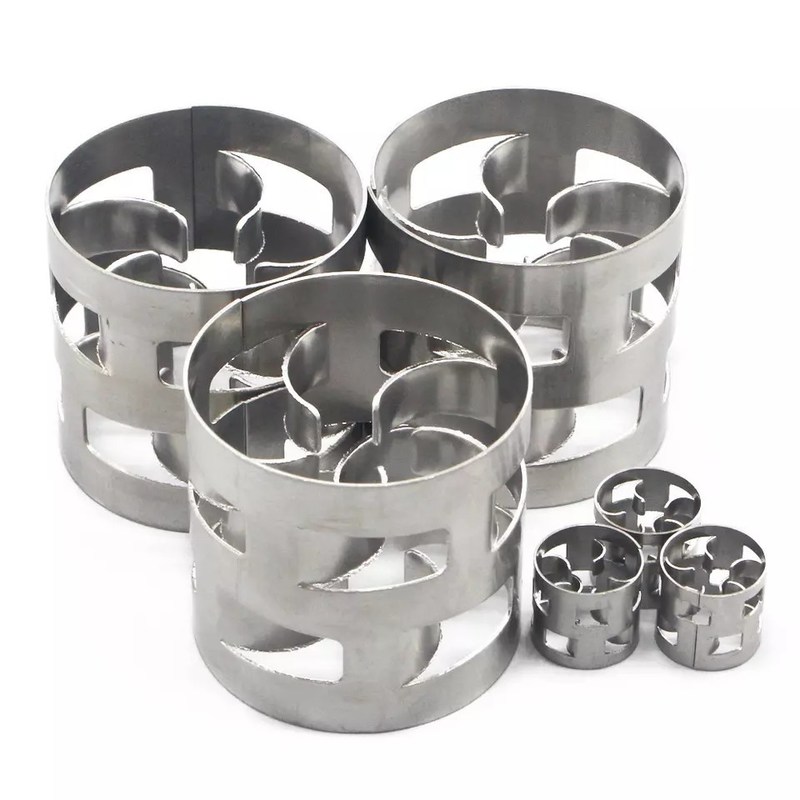

Stainless steel SS304 316 super raschig ring packing stainless steel pall rings for water treatmentSS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 0
Product Parameters
Metal Pall Ring is an open-hole ring packing, of which the height and diameter are the same size and with 5 ligules toward inside at every floor. Usually, the open surface is 35% of the whole wall surface, which helps the liquid & gas pass in pacing tower pass freely from the widows of the rings. Its structure improves the distribution of gas-liquid and its efficiency can be improved to over 50% and only has half of pressure drop compared with Rasching Ring. Material: Metal pall ring is made of material like Stainless Steel, Carbon Steel, Aluminum, Copper, Monel, Hastelloy, Ni, Ti, and so on.

Regular sizes(diameter mm)
6.10,18,2,38,50,76,89. etc(depends on packing construction)

Advantage ■ High Loading & Throughput ■ Easily Wettable ■ High Resistance of Fouling and Temperature Applications ■ Small Specific Gravity ■ Mechanically Robust & Suitable for Deeper Beds ■ Good Liquid and Gas Distribution ■ High Mass Transfer Efficiency Application: ■ Various Separation and Absorption Applications ■ Absorption and Stripping Services ■ Steam Stripping Quench Towers ■ Direct Contact Cooling Reaction Towers ■ Distillation Columns ■ Tower Packing Technical data of metal pall ring:
Diameter (mm)
Dimension d×h×δ (mm)
Specific surface area (m2/m3)
Void volume(m3/m3)
Dry packing factor ( m-1 )
Heaping number (n/m3)
Heaping weight (kg/m3)
Φ16
16×16×0.3
362
0.949
423
214000
396
Φ16
16×16×0.4
371
0.933
457
214000
527
Φ25
25×25×0.5
219
0.950
255
51940
393
Φ25
25×25×0.6
223
0.940
268
51940
471
Φ38
38×38×0.6
146
0.959
165
15180
318
Φ38
38×38×0.8
149
0.946
176
15180
424
Φ50
50×50×0.8
109
0.960
124
6500
314
Φ50
50×50×1.0
110
0.950
128
6500
393
Φ76
76×76×1.2
71
0.961
80
1830
308
Φ76
76×76×1.5
72
0.951
84
1830
384
Φ100
100×100×1.8
74
0.965
50
1200
370
Φ100
100×100×2.0
35
0.955
53
1200
371
Details Images
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 1
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 2
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 3
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 4
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 5
Recommend Products
Company Profile
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 7
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 8
Exhibition
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 9
Cooperation Case
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 11
SS304 316 Super Raschig Ring Packing Stainless Steel Pall Rings For Water Treatment 12
FAQ
Q1:What are your main products?
A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc...

Q2:Why to choose us?
A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price

Q3:What is the MOQ?
A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton.

Q4:What is the delivery time?
A:It will takes about 3-5 days. But the exact time is according to actual situation.

Q5:How do I pay for my purchase order?
A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc...

Q6:Can I have my own customized product?
A:Yes, your customized requirements are welcome.
