Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing

Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing
Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001:2008
Model Number: NK-MCR
Minimum Order Quantity: 1 cubic meter
Price: $800.00 - $1,200.00/ cubic meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1 - 1000+kilograms+PER DAY
Contact Now
Application: Mass Transfer Media, Absorption, Scrubbing And Stripping Services Material: AISI304,cardon Steel,stainless Steel
Product Name: Stainless Steel Raschig Ring Shape: Raschig Ring, Cylinder
Material: Stainless Stee, Carbon Steel, Alumina，304,304L,410,316,316L,carbon Steel Color: Metal
Size: 10mm,12.7mm,16mm,25mm,38mm,50mm,76mm,89mm Keywords: Metal Raschig Ring
Classfication: Distillation Column Packing, Tower Packing, Metal Random Packing Keyword: Tower Packing Metal Raschig Ring
Highlight:

Metal Raschig Ring Stainless

,

Raschig Ring Stainless Steel

Metal Raschig Ring Stainless Steel Raschig Ring CylinderTower Packing Metal Raschig Ring with competitive priceMetal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 0
Product Parameters
NAIKE Metal random packing is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.


Tower Packing Metal Raschig Ring is proved to be a kind of good tower packing a wide range of mass transfer applications. Tower Packing Metal Raschig Ring provide on the of that largest surface areas among tower packing options and handles heavy loading, process upsets and temperature shocks. NAIKE can offer Tower Packing Metal Raschig Ring of different sizes and materials according to your specific separation applications.



Advantage of Tower Packing Metal Raschig Ring High separation efficiency High capacity and low pressure drop High separation, cold and heat resistant High durability and longevity
Application of Tower Packing Metal Raschig Ring Petrochemical distillation and extraction applications Absorption in gas processing, combustion plants and columns Steam stripping and desorption in water treatment Condensing

Specification of Tower Packing Metal Raschig Ring
Name
Normal
Diameter*Height*Thickness
Surface area
Void space
Bulk density
No.elements
mm
mm
m2/m3
%
kg/m3
per/m3
Column Packing Raschig Ring
ø10
10*10*0.3
500
75
571
768000
ø12.7
12.7*12.7*0.3
400
80
490
410000
ø16
16*16*0.3(0.4)
350
86
408(543)
214000
ø25
25*25*0.5(0.6)
220
88
403(483)
52000
ø38
38*38*0.6(0.8)
150
90
326(435)
15200
ø50
50*50*0.8(1.0)
110
92
322(403)
6500
ø76
76*76*1.0(1.2)
68
95
262(314)
1830
ø89
89*89*1.2(1.5)
58
97
283(353)
1200
Details Images

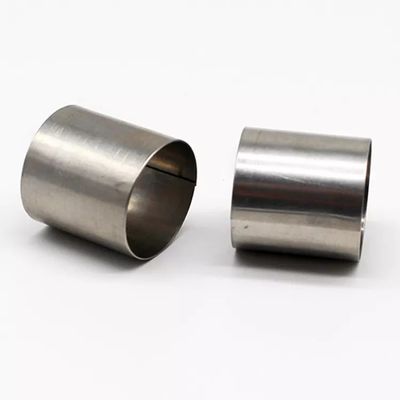

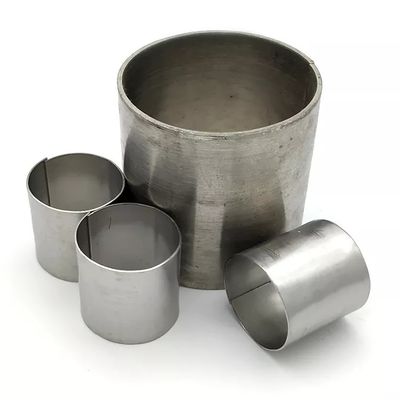

Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 1
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 2
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 3
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 4
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 5
Recommend Products
Company Profile
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 6
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 7
Exhibition
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 8
Cooperation Case
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 9
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 10
Metal Raschig Ring Stainless Steel Raschig Ring Cylinder Tower Packing 11
FAQ
Q1:What are your main products?
A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc...

Q2:Why to choose us?
A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price

Q3:What is the MOQ?
A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton.

Q4:What is the delivery time?
A:It will takes about 3-5 days. But the exact time is according to actual situation.

Q5:How do I pay for my purchase order?
A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc...

Q6:Can I have my own customized product?
A:Yes, your customized requirements are welcome.
