| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | CE, ISO9001 |
| Model Number: | Plate Heat Exchanger |
| Minimum Order Quantity: | 1 piece |
| Price: | $0.10 - $1.00/ piece |
| Packaging Details: | Conventional packing |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 300 set / sets per Month |
| Structure: | Plate Heat Exchanger | Liquid Flow Rate: | Adjustable |
|---|---|---|---|
| Maximum Working Pressure: | Adjustable, As Per User's Requirement | Voltage: | 220V/380V, 220V/380V |
| Dimension(L*W*H): | Adjustable, Customized | Key Selling Points: | High Safety Level |
| Product Type: | Spiral Plate Heat Exchanger | Heat Exchanger Outer Material: | Stainless Steel 316L/304 |
| Inspection: | 100% Nondestructive Test | Host Materials: | 15CrMoR/15CrMo/S30408 |
Spiral plate heat exchanger
Spiral Plate Heat Exchangers
Main Features:
1) Material: stainless steel and/or carbon steel
2) Heat exchanger area: 1 - 250sqm
3) Type: non-separable(I type) or separable(II type,III type),horizontal or vertical type
4) Used for gas-gas, liquid-liquid, and gas-liquid heat exchanger
Structure and Properties

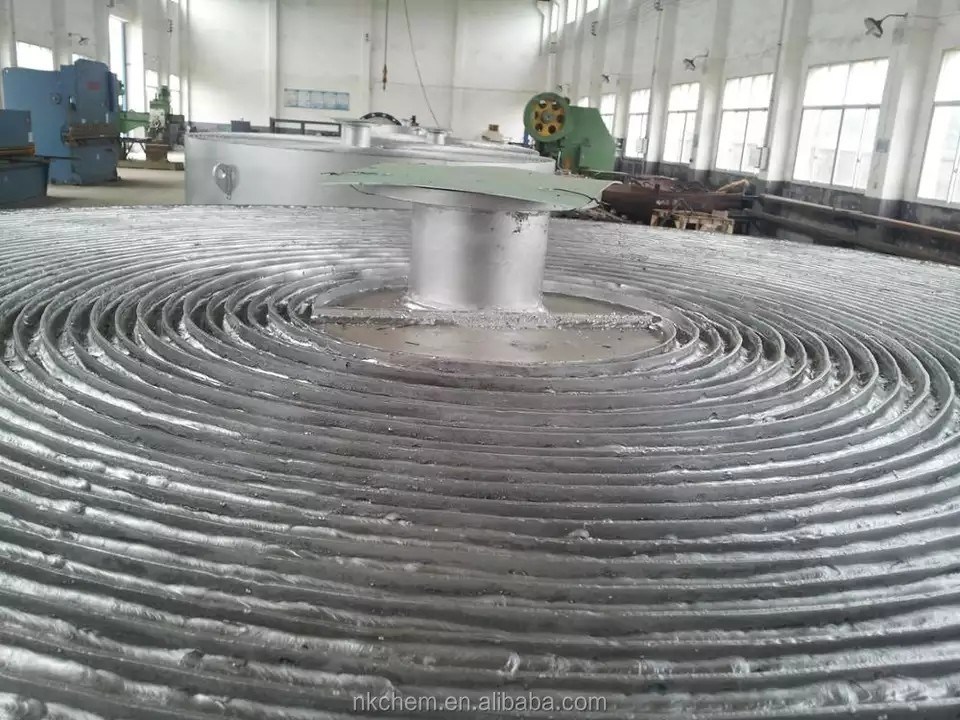

1, the equipment formed by the two rolled, the two formed a uniform spiral channel, two heat transfer medium-wide counter-current flow can be greatly strengthened the effect of heat transfer, even small temperature difference between the two media, can also achieve the desired Effect of heat transfer.
2, in the shell of a cut to take over the structure, local resistance small, spiral-channel due to the curvature is uniform and
equipment in the liquid flow there are no major shift, the overall resistance small, thus improving the design flow so that it has more High heat capacity.
3, It can not be demolished screw-plate heat exchanger end of the spiral channel sealed by welding, which has a high tightness.
4, II-type removable plate heat exchanger spiral structure of principle and can not be demolished heat exchanger is basically the same, but one channel can open cleansing, in particular with regard to the viscous, liquid precipitation heat exchange.
5, III-removable plate heat exchanger spiral structure of principle and can not be demolished heat exchanger is basically the same, but the two channels can open cleansing, apply a wider scope.
6, single-use devices can not meet the requirements, you can use multiple combinations, but the composition must meet the following requirements: Parallel composition series portfolio, equipment and the same channel Pitch. Mixed combination: a parallel channel, a channel series
Spiral Plate Heat Exchanger Brief introduction
Spiral plate heat exchanger is a highly efficient heat exchanger equipment, application of steam -gas, steam - liquid, liquid - liquid, the heat transfer fluid. It applies to the chemical, oil, solvents,medicine, food, light industry, textile, metallurgy, steel rolling and coking sectors.
The structure can be divided into non-demolition ( Ⅰ type) spiral plate and removable (Ⅱ type, Ⅲ type)
Spiral Plate Heat Exchanger Drawing Picture
