| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO |
| Model Number: | NK-MPR |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $650.00 - $1,200.00/ cubic meter |
| Packaging Details: | jumbo bag and pallet, one 20ft can load 20m3 |
| Delivery Time: | 15 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Metal Pall Ring | Material: | Stainless Steel, SS316, 304, 304L, 316L |
|---|---|---|---|
| Diameter: | 38mm | Application: | Distillation Column |
| Classfication: | Tower Packing, Random Packing, Column Packing | Size: | 16,25,38,50,76,80,90mm |
| Product Name: | Metal Pall Ring, Stainless Steel Pall Rings, Packing Pall Ring |

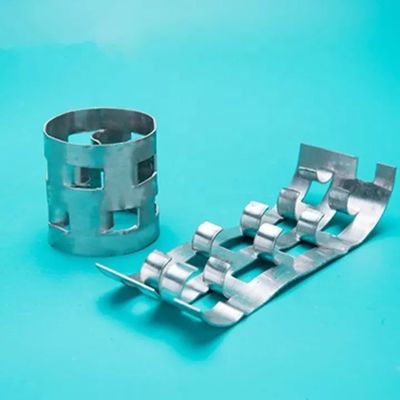

Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring
Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring is well known packing after rasing ring,an industry standard design media which used in many applications,widely used in all kinds of separation, absorb plants, constant decompress plants, compounding ammonia plant, decarbonization , desulfuration ,separation of ethylbenzene, separation of isooctane/ methylbenzene,
Application:
Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, Various separation and absorption applications at atmospheric pressure and under vacuum, where a low pressure drop is critical,H2S, NH3 & SO2
Naike Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring is an industry standard design media deveoped from Metal Pall Ring and is used widely in varieties of applications.
Material:
Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring are available in a wide range of materials such as stainless steel ,carbon steel ,aluminum, bronze,304L,316L,and other alloy etc.
Advantage:
Lower pressure drop
Good liquid/gas distribution and higher mass transfer efficiency versatility,easily wettable, high resistance to fouling ,high temperature.
High Mechanical strength ,suitble for depper beds
Good liquid/gas distribution and higher mass transfer efficiency versatility
Technical Parameter:
| Name | Size | Diameter x Heightx Thickness mm | Surface area m²/ m3 | Void space % | Bulk density kg/ m3 | No,per m3 | Packing factor m-1 |
|
Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring | Φ 16 | 16x16x0.4 | 239 | 92.8 | 365 | 205000 | 299 |
| Φ 25 | 25x25x0.6 | 219 | 93.4 | 427 | 55900 | 269 | |
| Φ 38 | 38x38x0.8 | 129 | 94.5 | 365 | 13000 | 153 | |
| Φ 50 | 50x50x1.0 | 112.3 | 94.9 | 395 | 6500 | 131 |
