| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NAIKE CHEMICAL |
| Certification: | ISO |
| Model Number: | NK-VSP |
| Minimum Order Quantity: | 1 cubic metre |
| Price: | depends on quantity |
| Packaging Details: | woven bag, jumbo bag |
| Delivery Time: | 10 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | VSP Ring | Material: | PP |
|---|---|---|---|
| Diameter: | 25mm, 50mm, 90mm | Application: | Enviromental Protection |
| Classfication: | Tower Packing, Random Packing, Column Packing | Other Name: | Mella Ring |
| Highlight: | Packed Bed Column VSP Ring,Gas Industries VSP Ring,PP Very Special Ring |
||
PP Very Special Ring VSP Ring For Packed Bed Column In Gas Industries
Product description
Plastic vsp ring High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.
Main technical index:
| Model | Plastic VSP | |||
| Material | PP,RPP,PE,PVC,CPVC,PVDF,etc. | |||
| Size | Specific Area | Void ratio | Bulk density | Specification of PP plastic VSP |
| (mm) | m2/m3 | (%) | kg/m3 | |
| 25 | 185 | 93 | 60 | |
| 50 | 100 | 95 | 45 | |
| 90 | 78 | 97 | 30 | |
Note: The above data are reference to material PP.
Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package info
| package | volume | volume/bag | |
| 20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
| 40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
| 40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |

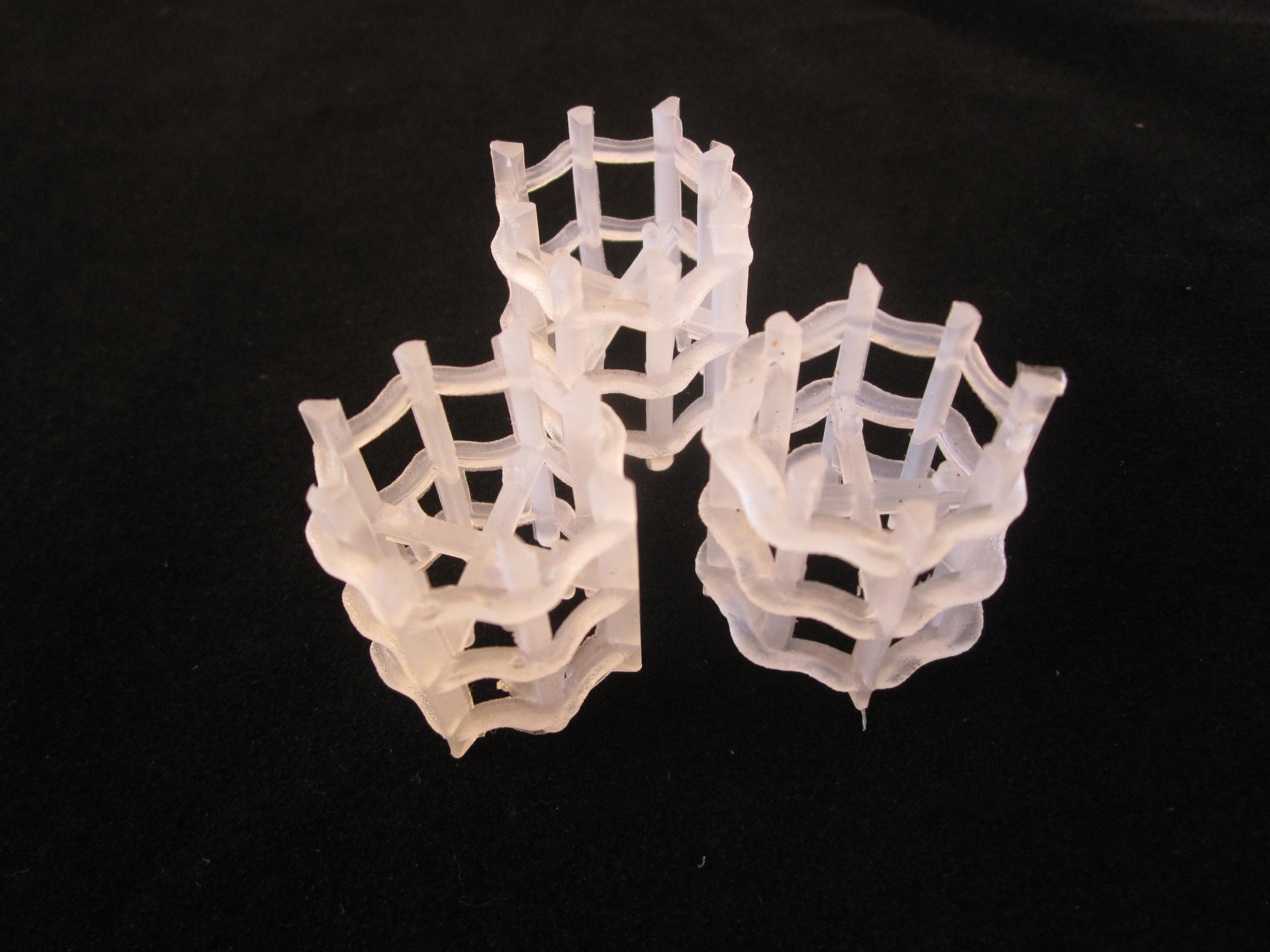

Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Package: woven bag, 0.1m3/bag.
Jumbo bag package is also available, 1m3/jumbo bag.
Other plastic random packing products
Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,
hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing
