Place of Origin: | CHINA JIANGXI |
---|---|
Brand Name: | NKCHEM |
Certification: | ISO9001:2008 |
Model Number: | TP-0001 |
Minimum Order Quantity: | 1 cubic meter |
Price: | $180.00 - $300.00/ cubic meter |
Packaging Details: | woven bag, jumbo bag |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
Supply Ability: | 500 Cubic Meter/Cubic Meters per Month |
Product Name: | PP TP Ring, Packed Bed TP Ring | Classification: | Tower Packing, Random Packing, Column Packing |
---|---|---|---|
Material: | PP | Processing Service: | Moulding, Cutting |
Size: | 25mm, 38mm, 50mm | Color: | White |
Application: | For Fertilizer Industry, Urea Prilling Tower | ||
Highlight: | White Polypropylene TP Ring,25mm Polypropylene TP Ring,Fetilizer Industry Polypropylene TP Ring |
White Polypropylene TP Ring 25mm for Urea Prilling Tower in Fetilizer Industry
PP TP Rings
PP TP Ring is a kind of random packing, is a piece of tube (approximately equal in length and diameter) with holes on surface. It is widely used in packed bed columns for fertilizer industry.
Packing of PP TP Rings | |||
1 cubic meter Jumbo bag | |||
Other packing is available upon your request. |
Technical Parameter of PP TP Rings | ||||||||
D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
25*25*1.0 | 210 | 90 | 48500 | 88 | 86 | |||
38*38*1.2 | 150 | 91 | 15200 | 70 | 90 | |||
50*50*1.5 | 105 | 92 | 6500 | 65 | 92 |
Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..
Physical & Chemical Properties of PP Raschig Rings | ||||||||
Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | ||
Density(g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | ||
Operation Temp(℃) | 90 | >100 | >120 | >60 | >90 | >150 | ||
Chemical Corrosion resistance | Good | Good | Good | Good | Good | Good | ||
Compression Strength(MPa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |

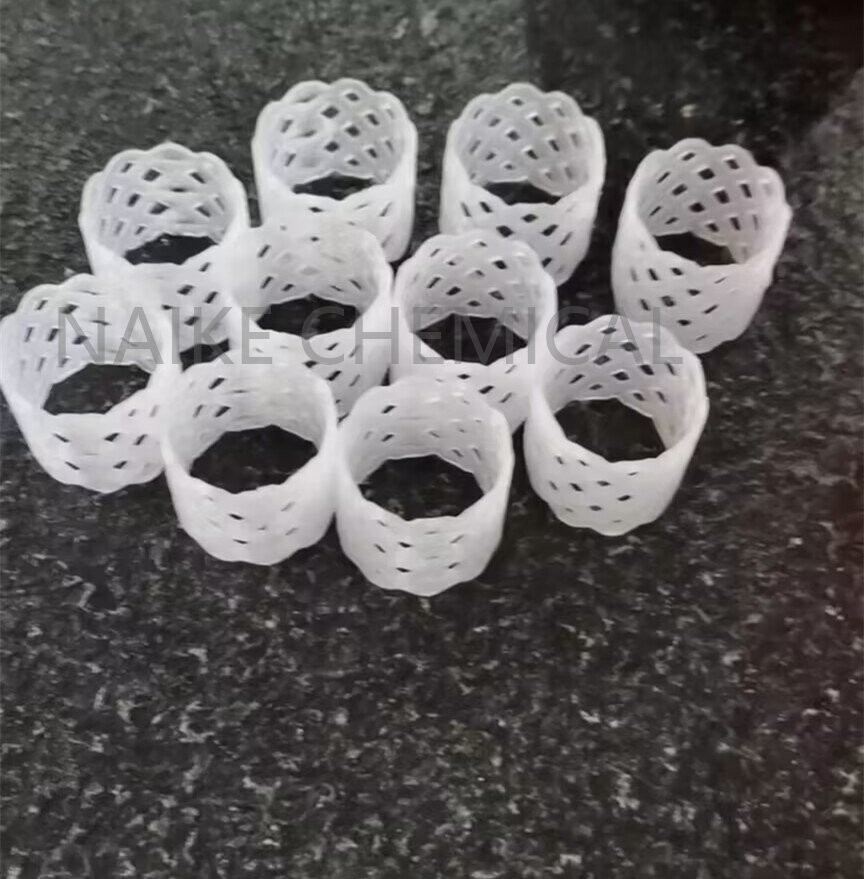

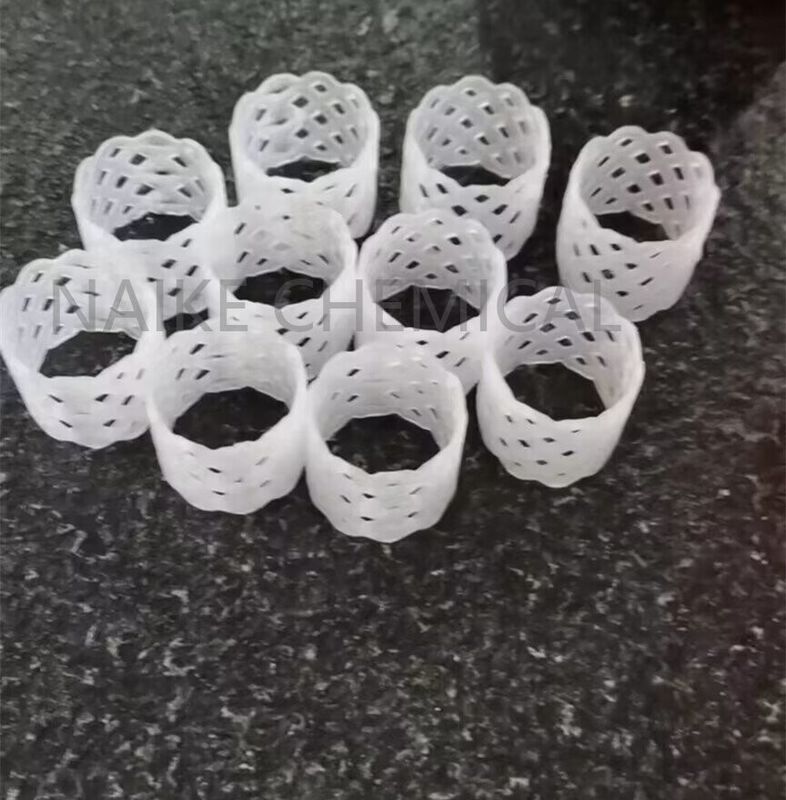

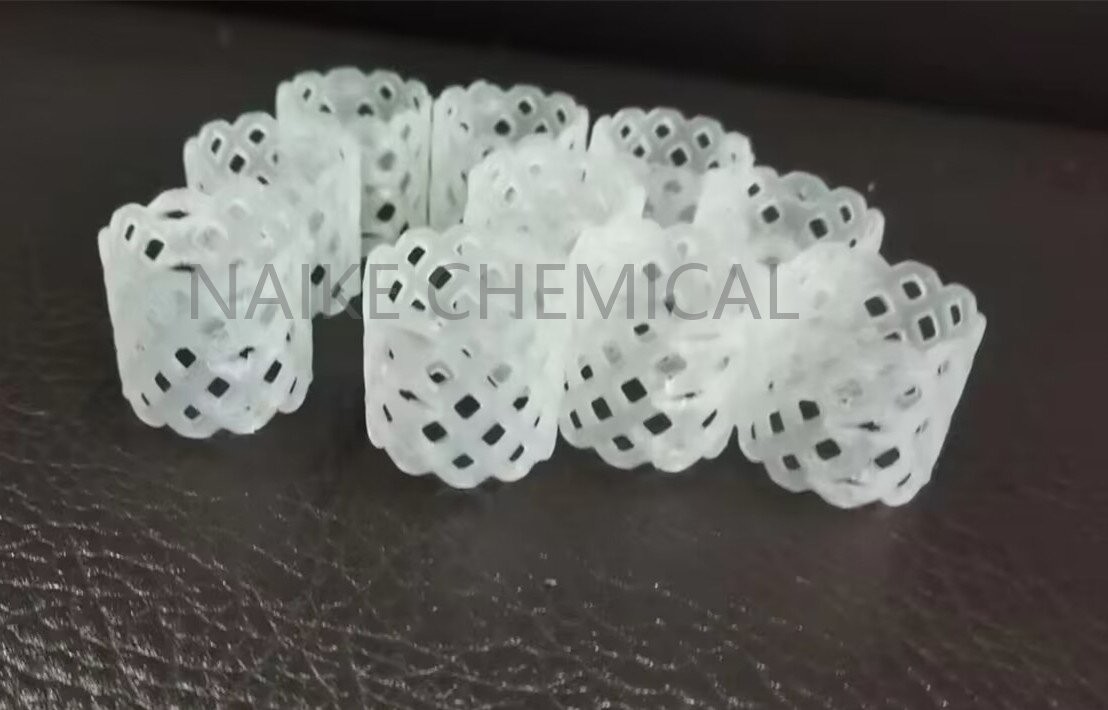

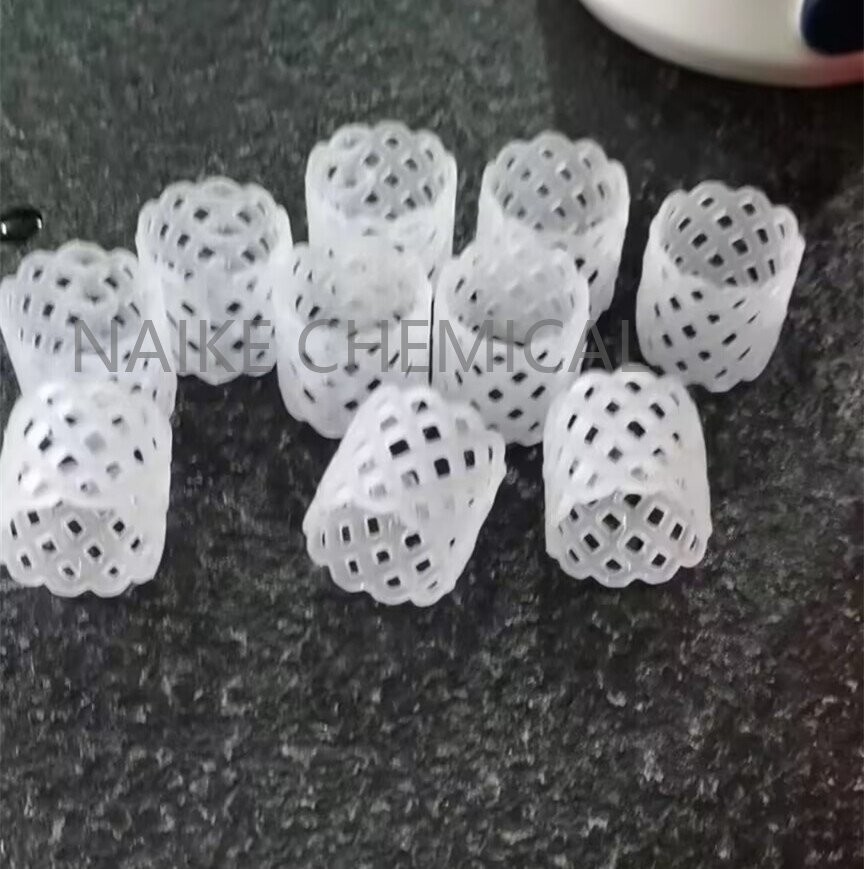

Product photos
Other plalstic random packing
1. We promise to reply your inquiry within 24hours.
2. OEM & ODM service for your unique idea with absolute convenience.
3. Experienced salesmen with professional industry knowledge.
4. We value our business credit, promise to keep your company information confidential
1.Can I negotiate the price?
Yes, we may consider the discounts for mixed goods or bulk orders of individual products
2.How long for the lead time?
In generally, it only need 7-15 workdays.
3.Can I get the sample for free?
Yes,500g sample is free and buyer should pay for the freight.
4.Can I visit your factory before make the order ?
Yes, warmly welcome. Our factory is located in No.91 Anyuan West street, Pingxiang City, Jiangxi Province. Before you come, please let us know your schedule, your arriving time, we can come to pick you up.
5. What information should I offer to you if I want to know the price?
- Application/Usage
- Size
- Material
- Quantities you need;
- Package term
- Delivery time
- Payment term:FOB or CIF
- Destination.
