Place of Origin: | China |
---|---|
Brand Name: | NKCHEM |
Certification: | ISO |
Model Number: | ICB-003 |
Minimum Order Quantity: | 1000kg |
Price: | USD0.4-USD1 |
Packaging Details: | woven bag |
Delivery Time: | 3-4 work day |
Payment Terms: | Western Union, T/T, L/C,PAYPAL, Credit card |
Supply Ability: | 200 TON per Month |

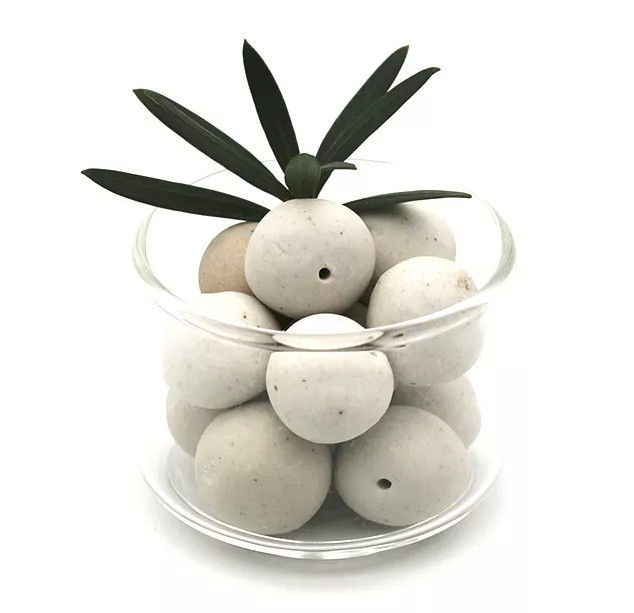

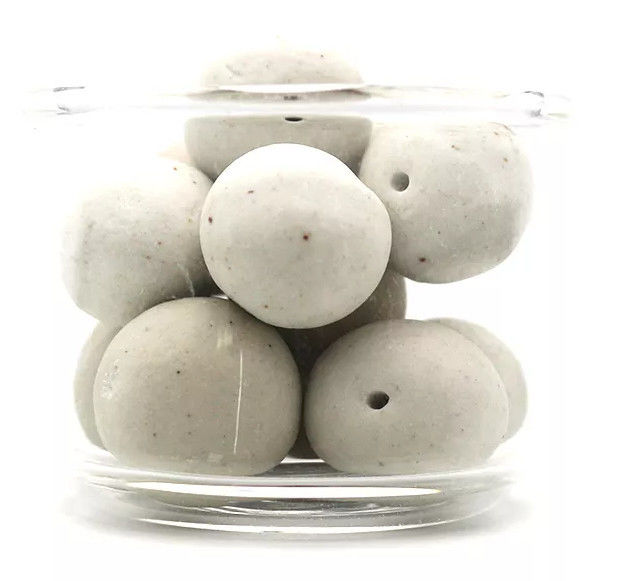

Name: | Alumina Oxide Ceramic Ball | Al2O3: | 20%-90% |
---|---|---|---|
Shape: | Ball | Size: | 3mm, 6mm, 8mm, 10mm, 13mm, 16mm, 20mm Or Customized |
Color: | White, Grey | Application: | Covering And Support Material For Catalyst And Packing |
Other Names: | Inert Ceramic Ball, Alumina Ceramic Ball | Material: | Ceramic |
Highlight: | Suport Media Alumina Ceramic Ball,White Porous Alumina Ceramic Ball,Natural Gas Industry Alumina Ceramic Ball |
Have inert ceramic ball's advantage and improve the surface area and stability. It is a new developed product in our company, and we focus on the centre of the ball to open holes, it has high stability and flexibility. And improves the void of the specific surface area, lowing the resistance of the system. So it can be widely used in oiling, chemical, and natural gas industries.
Technical Specification:
Type | Feldspar | Feldspar-Molai | Molai Stone | Molai-Corundum | Corundum | |||||
Item | ||||||||||
Chemical Ingredients % |
Al 2O3 | 20-30 | 30-45 | 45-70 | 70-90 | ≥90 | ||||
Al2O3 +SiO 2 | ≥90 | |||||||||
Fe2O3 | ≤1 | |||||||||
Water Adsorption, % | ≤5 | |||||||||
Acid Resistance , % | ≥98 | |||||||||
Alkaki Resistance,% | ≥80 | ≥82 | ≥85 | ≥90 | ≥95 | |||||
Operation Temperature, °C | ≥1300 | ≥1400 | ≥1500 | ≥1600 | ≥1700 | |||||
Scrushing Strength N/ pellet |
Φ 3 | ≥400 | ≥420 | ≥440 | ≥480 | ≥500 | ||||
Φ 6 | ≥480 | ≥520 | ≥600 | ≥620 | ≥650 | |||||
Φ 8 | ≥600 | ≥700 | ≥800 | ≥900 | ≥1000 | |||||
Φ10 | ≥1000 | ≥1100 | ≥1300 | ≥1500 | ≥1800 | |||||
Φ13 | ≥1500 | ≥1600 | ≥1800 | ≥2300 | ≥2600 | |||||
Φ16 | ≥1800 | ≥2000 | ≥2300 | ≥2800 | ≥3200 | |||||
Φ20 | ≥2500 | ≥2800 | ≥3200 | ≥3600 | ≥4000 | |||||
Φ25 | ≥3000 | ≥3200 | ≥3500 | ≥4000 | ≥4500 | |||||
Φ30 | ≥4000 | ≥4500 | ≥5000 | ≥5500 | ≥6000 | |||||
Φ38 | ≥6000 | ≥6500 | ≥7000 | ≥8500 | ≥10000 | |||||
Φ50 | ≥8000 | ≥8500 | ≥9000 | ≥10000 | ≥12000 | |||||
Φ75 | ≥10000 | ≥11000 | ≥12000 | ≥14000 | ≥15000 | |||||
Bulk Density , kg/m3 | 1100-1200 | 1200-1300 | 1300-1400 | 1400-1550 | ≥1550 |
Size:
Diameter | 6 | 8 | 10 | 13 | 16 | 20 | 25 | 30 | 38 | 50 | 60 | 75 | ||
Tolerance of diameter ,mm | ±1.0 | ±1.5 | ±2.0 | ±3.0 | ||||||||||
Aperture ,mm | 2-3 | 3-5 | 5-8 | 8-10 |
