Ceramic Plate Corrugated Structured Tower Packing Ceramic Structured Packing 450Y

Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001-2008
Model Number: 450Y
Minimum Order Quantity: 1 cubic meter
Price: $200.00 - $600.00/ cubic meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1 - 1000+kilograms+PER DAY
Product Name: Ceramic Structured Packing Specific Gravity: 2.5 G/cm3
Acid Resistance: ≥99.5% Crush Strength: ≥130Mpa
Moh's Hardness: ≥7 Water Absorption: ≤0.5

Ceramic Plate Structured Tower Packing


Corrugated Ceramic Structured Packing


Tower Ceramic Structured Packing

Corrugated Ceramic Plate Ceramic Structured Packing 450Y

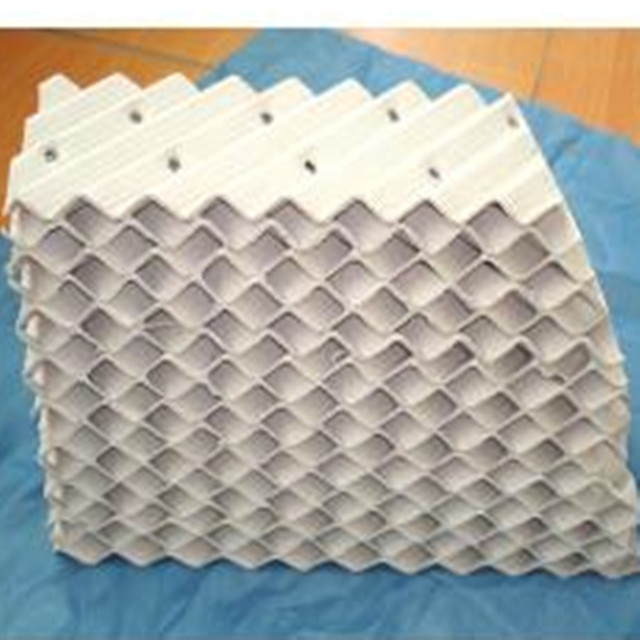

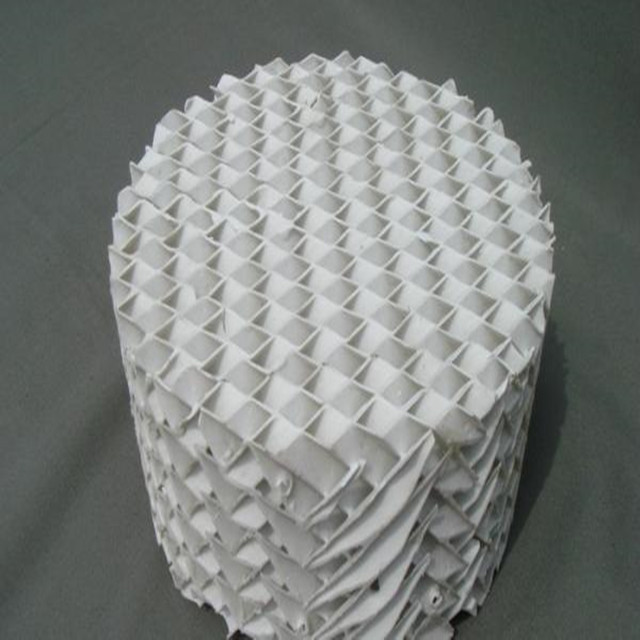

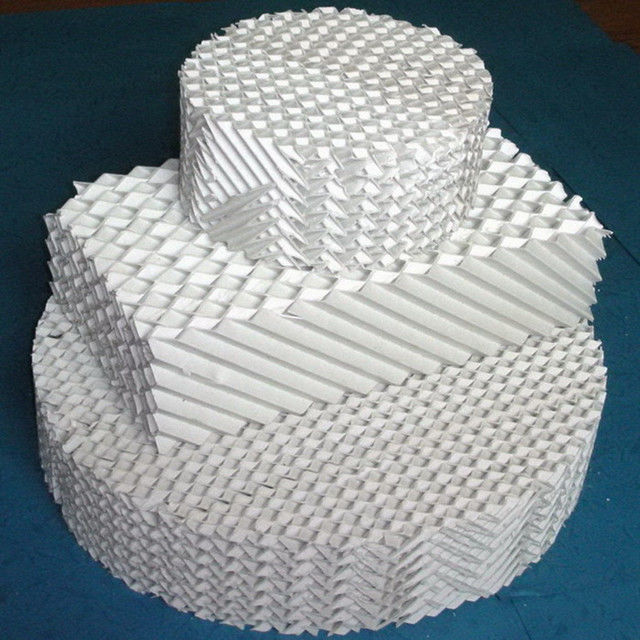

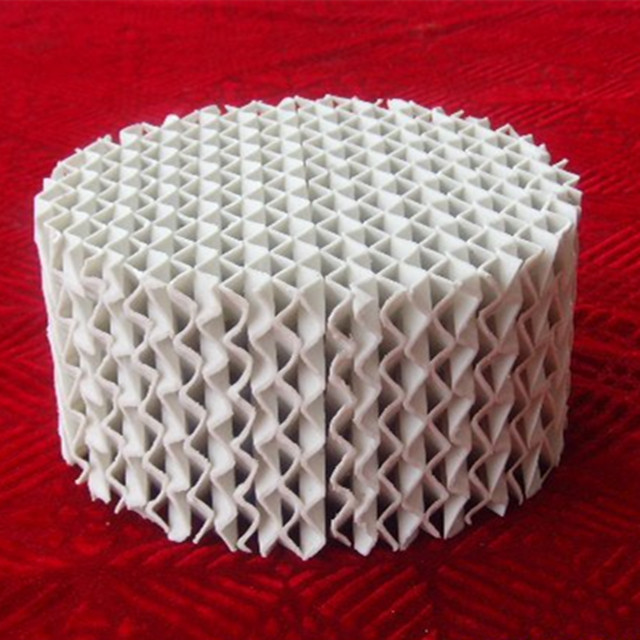

Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel formcylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing...


Chemical composition

SiO2 Fe2O3 CaO Al2O3 MgO Other
≥72% ≤0.5% ≤1.0% ≥23% ≤1.0% 2%


Physical property

Index Value
Specific gravity(g/cm3) 2.5
Water absorption(wt%) ≤0.5
Acid resistance(wt%) ≥99.5
Loss in burn(wt%) ≤5.0
Max. operating Temp.(Degree C) 800
Crush strength(Mpa) ≥130
Mohs Hardness(Scale) ≥7


Geometric characteristic

Spec. Specific Surface (m2/m3) Bulk Density (kg/m3) Void Ratio (%) Pressure drop (mmHg/m)
250Y 250 420 80 2
350Y 350 470 78 2.5
400Y 400 500 75 3
450Y 450 520 72 4
550Y 550 620 74 5.5
700Y 700 650 72 6
250X 250 380 80 2.5
350X 350 450 78 3
400X 400 480 75 4
450X 450 500 72 4.5
470X 470 440 75 5
550X 550 620 74 5.5
700X 700 650 72 6


1) High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
2) High separation efficiency. Since it has much larger specific surface area compared to random packing.
3) Low pressure drop, which leads to reduce energy consumption largely.
4) Large flexibility, and scale effect is not obvious.
5) Suitable for all tower diameters.
6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl-


1) Rectifying organic halide.
2) Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
3) Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.
4) Operating in vacuum conditions at a bottom absolute pressure of 100pa.
5) Used in heat exchanger and demisting, or as a catalyst carrier.


NAIKE Ceramic Structured Tower packingNAIKE Ceramic Structured Tower packingNAIKE Ceramic Structured Tower packingNAIKE Ceramic Structured Tower packingNAIKE Ceramic Structured Tower packingNAIKE Ceramic Structured Tower packing
