Place of Origin: | CHINA JIANGXI |
---|---|
Brand Name: | NKCHEM |
Certification: | ISO9001 |
Model Number: | BX500 PLUS |
Minimum Order Quantity: | 1 cubic meter |
Price: | $575.00 - $1,500.00/ cubic meter |
Packaging Details: | Conventional packing |
Delivery Time: | 5-8work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
Supply Ability: | 300 set / sets per Month |
Application: | Distillation | Shape: | Wire Mesh |
---|---|---|---|
Material: | 304, 304L,316, 316l | Product Name: | Metal Structured Packing |
Dia: | 0.1-12m | Material: | Stainless Steel |
Type: | 125Y, 250Y, 350Y, 700Y Etc | Shape: | Corrugated |
Application: | Distillation, Absorption Desportion | Liquid Lood: | 0.2 To More Than 300 |
Height: | 100mm, 150mm Etc | ||
Highlight: | Stainless Steel Wire Mesh Structured Packing,Distillation Column Wire Mesh Structured Packing |

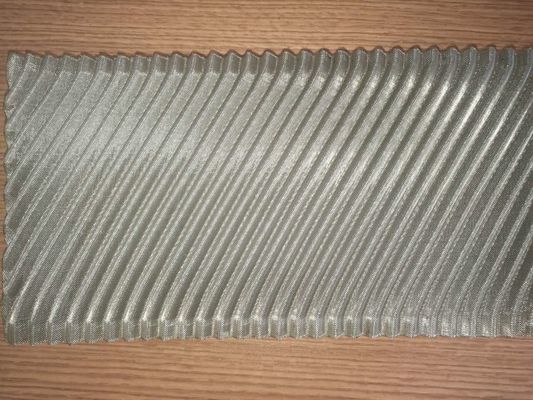

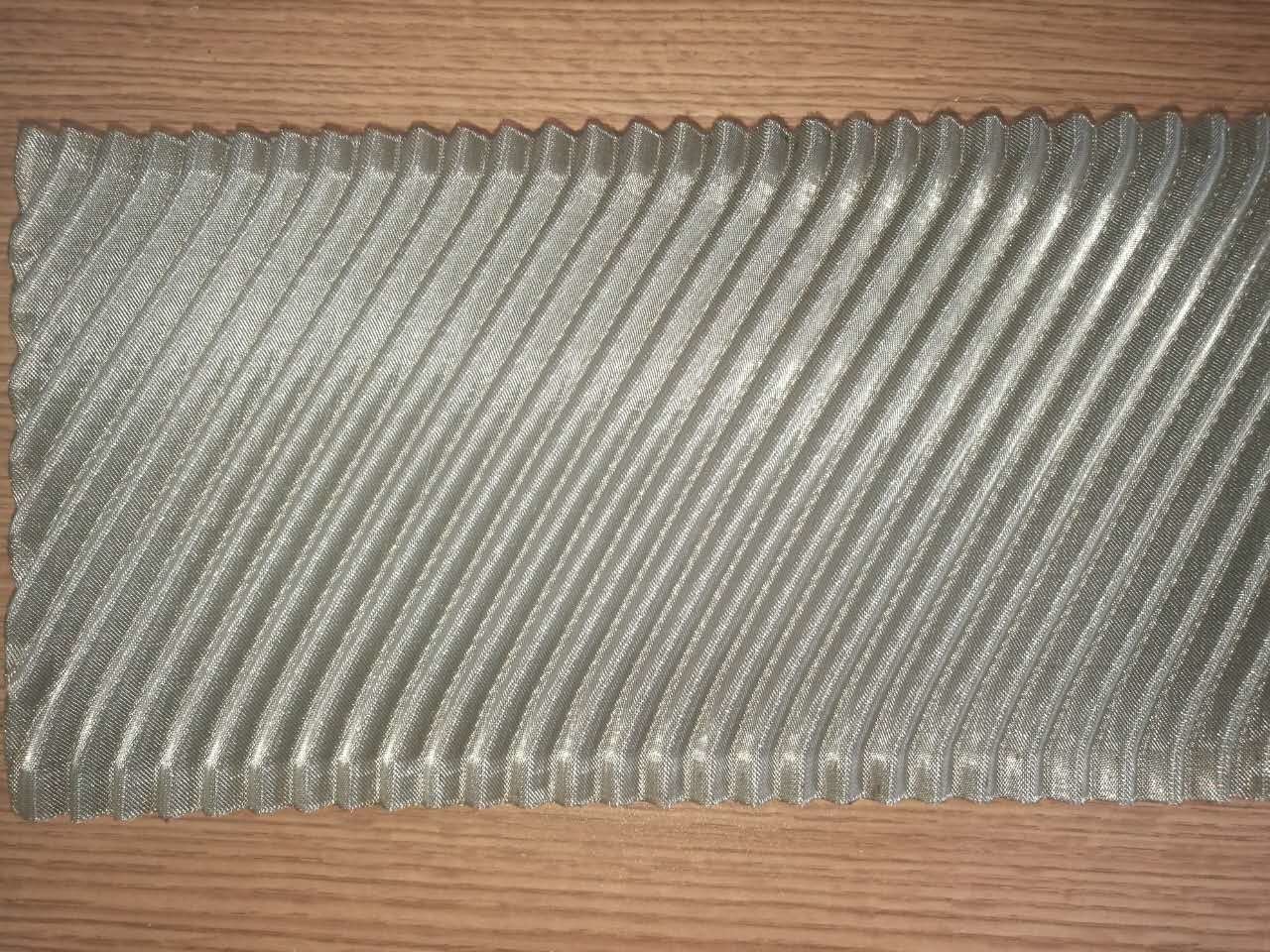

Stainless Steel Metal Wire Mesh Structured Packing BX PLUS for Distillation Column
Packing Distillation Columns: Metal Structured Packing
metal structured packing
1.Diameter: 0.1-12m
2.Pressure: Vacuum to high pressure
3.Liquid load: 0.2 to more than 300 m3/m2

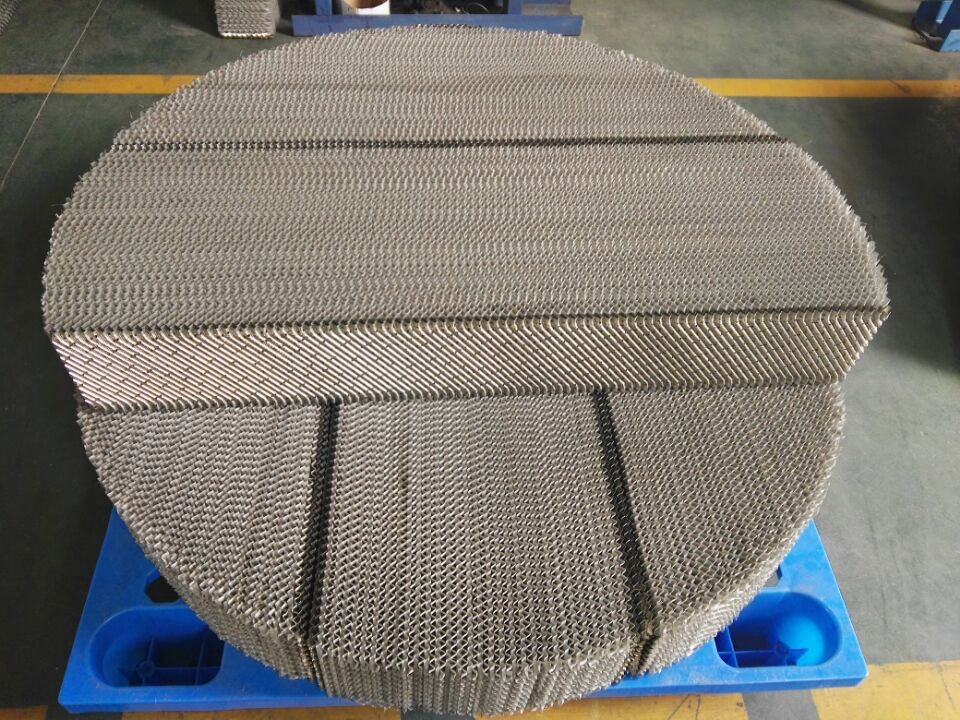

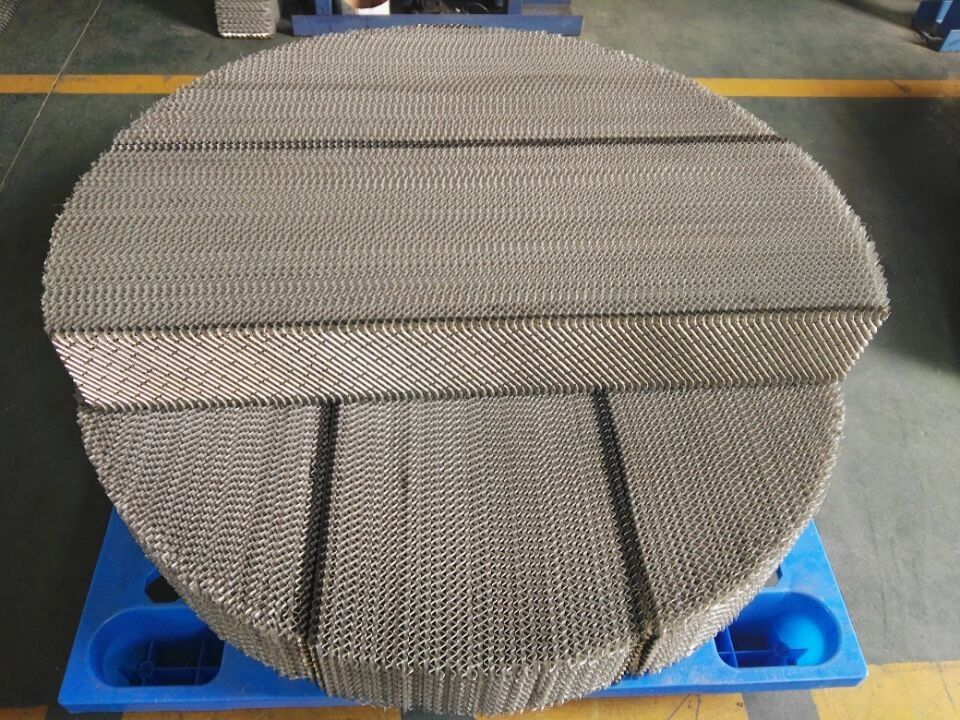

Metal Structured Packing
(Metal Perforated Plate Corrugated Packing) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
Material
Metal perforated plate corrugated packing is available in a wide range of materials, including stainless steels, 304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.
Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
The technical specification:
Type |
specific surface are m2/m3 |
Void Volume % |
Heaping Weight Kg/m3 |
Wave Height mm |
Theoretical plate number m-1 |
Δ P Pa/m |
Max F-factor m/s(kg/m3)0.5 |
125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3.0 |
250Y | 250 | 97 | 170-200 | 12.5 | 2.0-3.0 | 200 | 2.6 |
350Y | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 |
500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 |
