Metal Distillation Packing Dixon Stuffing For Distillation Column

Basic Information
Place of Origin: CHINA
Brand Name: NAIKE
Certification: ISO
Model Number: Dixon ring
Minimum Order Quantity: 1 liter
Price: $20.00 - $50.00/ liter
Packaging Details: jumbo bag and pallet, one 20ft can load 20m3
Delivery Time: 15 days for one 20GP container
Payment Terms: L/C, D/P, T/T, Western Union, paypal
Supply Ability: 300m3 per month
Product Name: Dixon Ring Material: Stainless Steel, SS304, SS316, SS304L, SS316L
Size: 2*2, 3*3, 4*4, 5*5, 6*6, 7*7, 8*8, 9*9, 10*10mm Application: Distillation Column
Classfication: Tower Packing, Random Packing, Column Packing
Highlight:

Distillation Packing Dixon Stuffing

,

Metal Distillation Packing Dixon

,

Distillation Column Dixon Stuffing

Metal Distillation Packing Dixon stuffing

Product Description



Dixon Ring

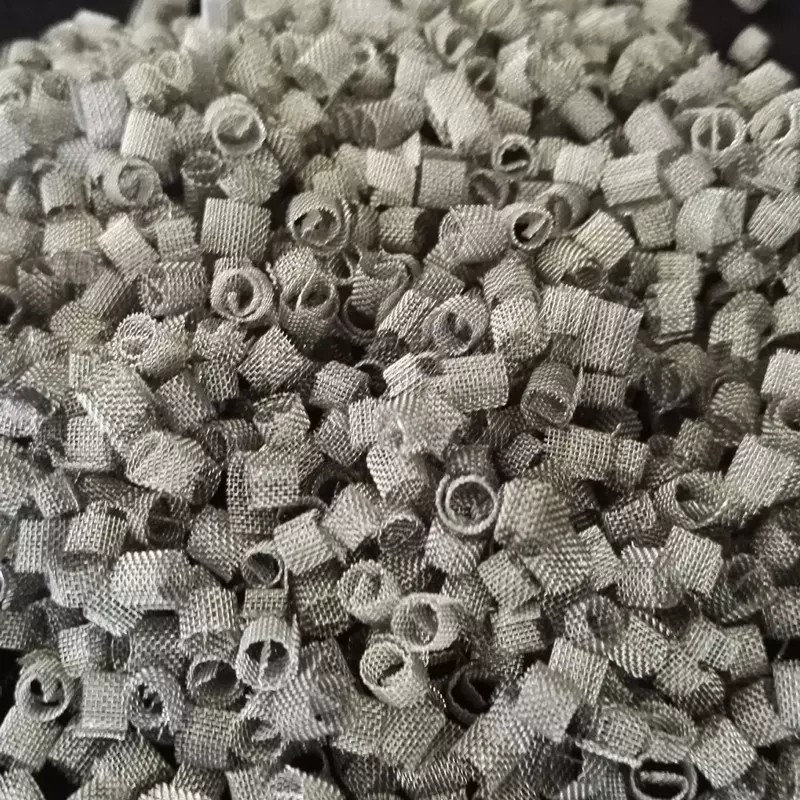

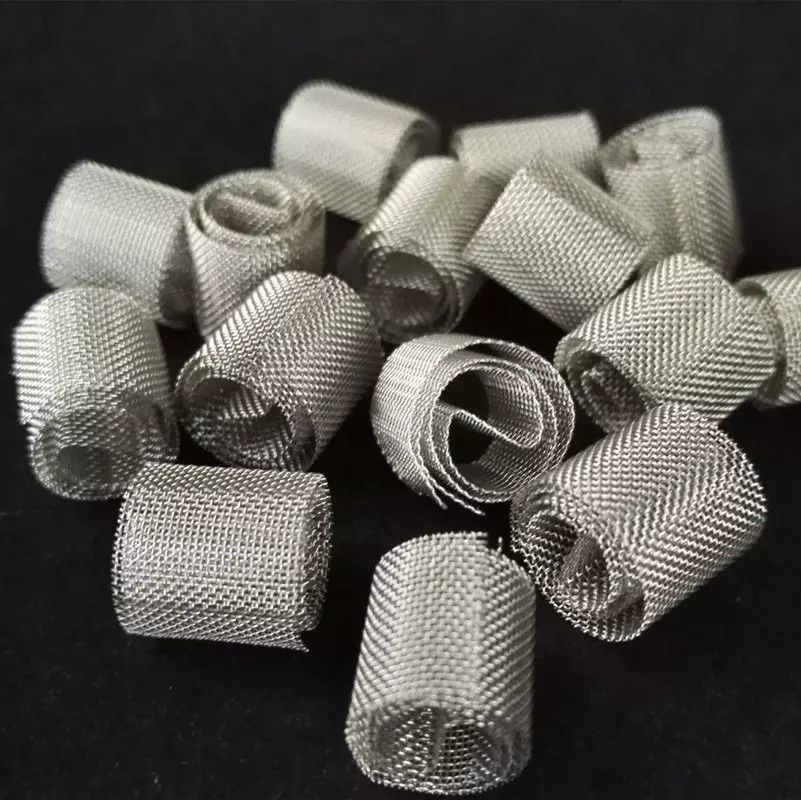

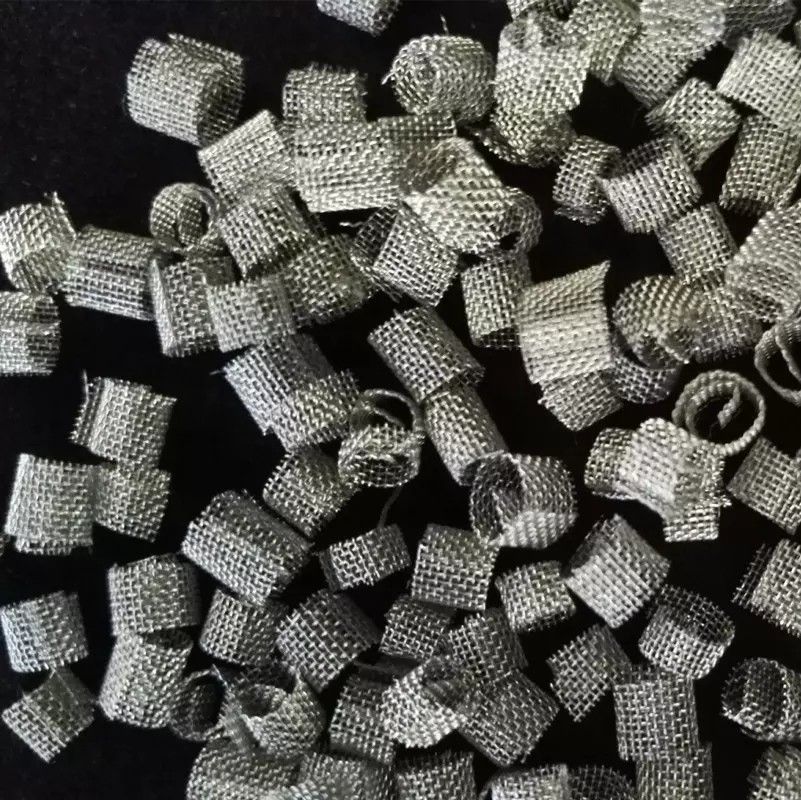

Dixon Ring also known as θ packing ring is a highly efficient packing of small particles, made of metal mesh, packing the same diameter and height. θ ring is used mainly for laboratory and low-volume, high-purity product separation process. θ ring packings pressure drop is related to gas velocity, liquid spray volume, and material weight, surface tension, viscosity and characteristics of fill factors and pre-fill liquid. ring hysteresis loop filler material than similar entities fill large, θ ring surface wetting situation completely than ordinary ceramic ring, film-forming rate, and thus more efficient. θ ring packing with the theoretical plate number of the increase in gas velocity increased, with the filler surface wettability and reduce the rate of decline.

Application
Dixon Ring is used mainly for laboratory and low-volume, high-purity product separation process.

Tech Data
Spec mm
Net Item
Tower Dia mm
Theoretical plate pcs/m
Bulk density Kg/m3
Surface area m2/m3
φ2×2
100
φ20-35
50-60
670
3500
φ3×3
100
φ20-50
40-50
520
2275
φ4×4
100
φ20-70
30-40
380
1525
φ5×5
100
φ20-100
20-30
295
1180
φ6×6
80
φ20-150
17-20
280
1127
φ7×7
80
φ20-200
14-17
265
1095
φ8×8
80
φ20-250
11-14
235
987
φ9×9
80
φ20-300
8-11
200
976

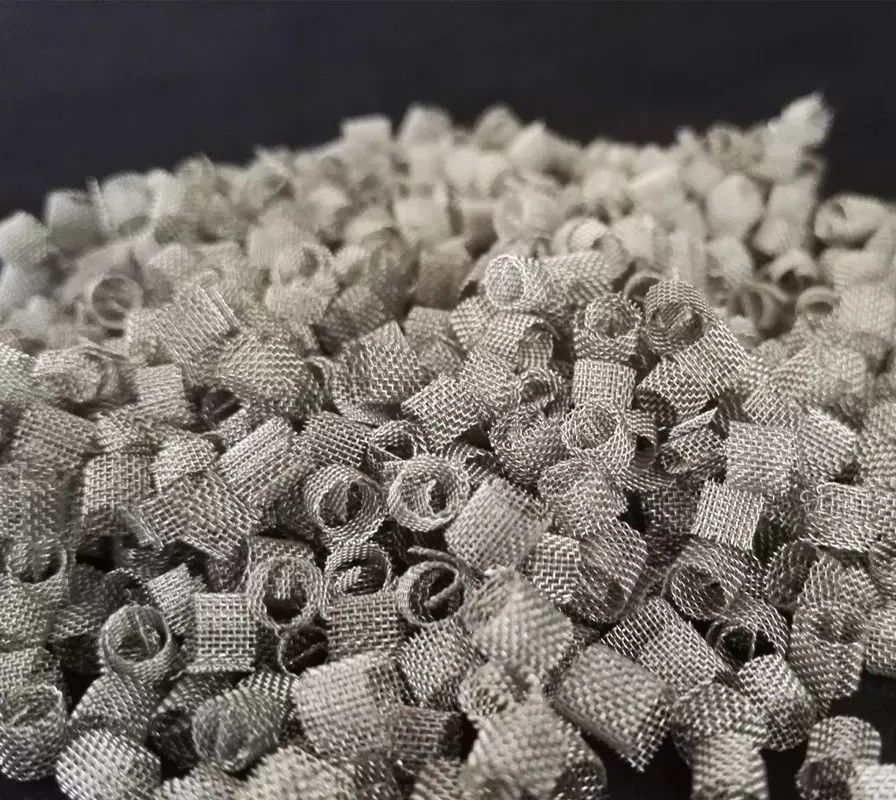

Metal Distillation Packing Dixon stuffing for Distillation ColumnMetal Distillation Packing Dixon stuffing for Distillation Column


Packaging & Shipping

carbon box/wooden box.

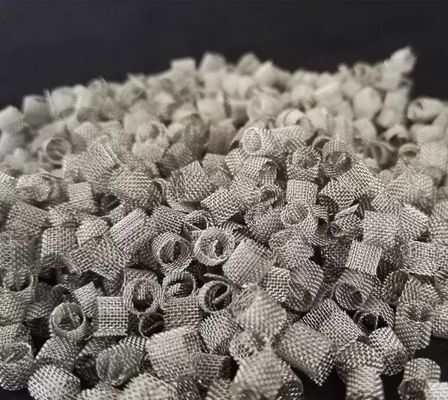

Metal Distillation Packing Dixon stuffing for Distillation Column



Our Services

We promise to reply within 24 hours.

Samples are available for checking quality.

Stock with regular material and sizes are available.

Fast and safe delivery is secured.



Tel: 86-799-3673808
Mobile: 86-18079909829
Email: cathy at nkchem.com

website: www.laiko.net

wechat: 18079909829

Trademanager: cn220021241

Similar products
Other laboratory packings


Metal Distillation Packing Dixon stuffing for Distillation Column
