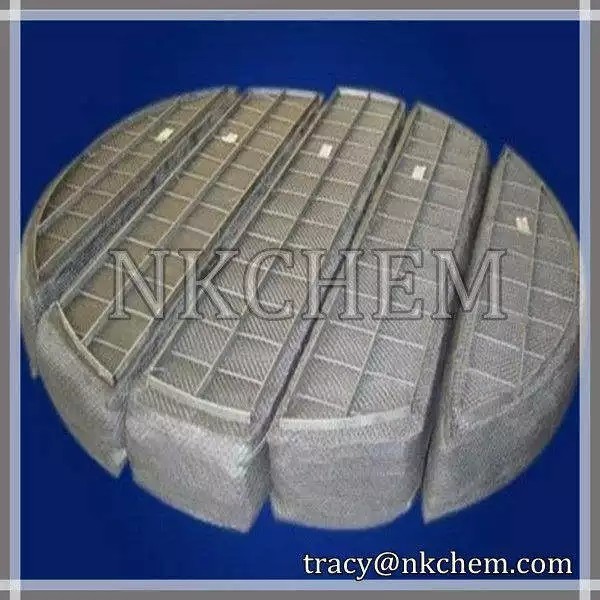

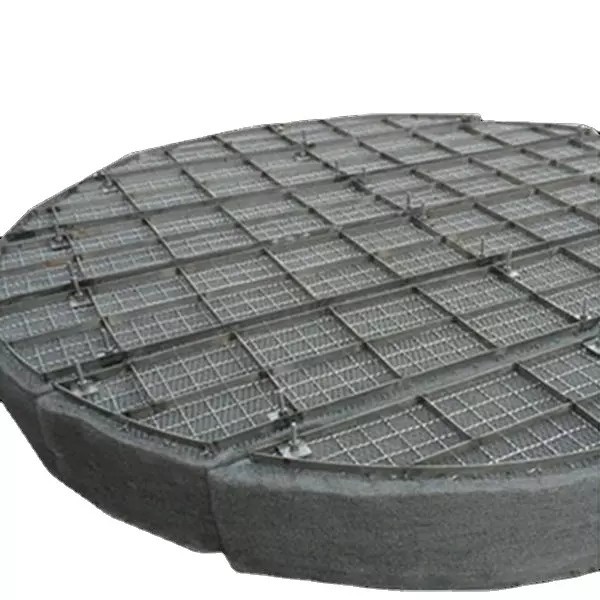

Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister

Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Model Number: Tower Packing
Minimum Order Quantity: 10 set
Price: $45.00 - $100.00/ set
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 300 set / sets per Month
Usage: Filter Type: Black Wire Mesh, York Mesh 431 Demister Pad
Material: Stainless Steel Wire, Pure Nickel Wire Knit Mesh Hole Shape: Round
Filter Rating: 5-95% Thickness: 1.2-4.6
Length: As Required Width: 8-45mm
Weave Style: Plain Weave Technique: Woven
Product: Mist Eliminator Demister Pad Feature: High Mechanical Damping Characteristics And Non-linear Spring
Highlight:

Demister Mesh Pad

,

Distillation Column Mist Eliminator

,

Knockout Drum Demister

Demister Mesh Pad Mist Eliminators for distillation column knockout drum demister/PP knockout drum/demister padDemister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 0
Product Parameters
Net Block
Grid
Material
Code
Standard NO.
Material
Code
Standard NO.
Q235-A
Q235-A
GB434
Q235-A
Q235-A
GB327
20
20
BG3206
20
20
GB711
0Gr18Ni10Ti
321

0Gr18Ni9
304
GB423
0Gr17Ni12Mo2
316
0Gr18Ni10Ti
321
00Gr19Ni11
304L
00Gr17Ni12Mo2
316
00Gr17Ni14Mo2
316L
00Gr17Ni14Mo2
316L
RS-2
RS-2
Steel Grades
00Gr17Ni14Mo2
316L
NS-8
NS-80
Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on.
Note: use other materials bearing the note when ordering
NS-80A
NS-80A
Brass Wire
H68, H65
GB310
Tin-copper Wire
QSn
GB3128
Nickel
N4, N6, N7, N8
GB3120
Titanium and Titanium Alloy
TA2, TA3, TC3, TC4
GB3623
The diameter of the separated drops in the gas which comes out in the ordinary chemical industry operation is about 0.1~5000μm. The separation of drops which have the diameter of above 100μm can be solved easily, for the sedimentation speed of such drops is relatively high. The drops which have the diameter above 50μm can be separated by gravitational settling method, the ones which have the diameter above 5μm can be separated by inertial impaction and centrifuge method; the smaller ones should be congregated to become lager, or be separated by using fiber filter and static demister.

Wire-mesh demister(or mist eliminator)is mainly used to separate drops of the diameter between 3μm to 5μm, the operating principle is showed in the fig at the right side. When the gas with liquid drops rises at a certain speed, passing through the wire mesh on the grid bar, the inertia of the rising drops make them collide with the wire and then adhere to the surface of the wire. The drops on the wire will diffuse and subside. It makes the drops form bigger ones and then flow along the wire to the intertexture of the wire. Because the wire can be humidified, and because of the surface tension of liquid and the capillarity effect of the wire, the drops will become bigger and bigger. They will be separated and fall when their own weight exceed the resultant force of buoyancy of the rising gas and surface tension of liquid. They will flow to the device of the container in the backward position. As long as the speed of the gas is properly controlled and with other proper condition, the efficiency of foam remove will be as high as 97% after the gas pass through wire-mesh demister. The purpose of removing foam will be achieved completely.
The characteristic of wire-mesh demisterTOP. - Structure simple, weight light. - High factor of porosity, low head loss. - Great contact surface area, high removing foam ratio. - Convenience of installing, operating and repairing. - Long service life.

Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
Details Images
Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 1
Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 2
Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 3
Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 4
Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 5
Demister Mesh Pad Mist Eliminators For Distillation Column Knockout Drum Demister 6
