Metal Wire Mesh Mist Eliminator Column Internal Manufacturer In China

Basic Information
Place of Origin: JIANGXI
Brand Name: NAIKE
Certification: SGS
Model Number: NKDP-002
Minimum Order Quantity: 1 Set/Sets (Min. Order)
Price: USD200-USD2000
Packaging Details: carton box, wooden box
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 5000 Set/Sets per Month
Material: SS304, SS316, SS304l, SS316L Application: Petrochemical Industry,Chemical Industry,gasoline
Type: Column Internal Size: Customized
Usage: Towers,vacuum Distillation Tower,Towers &RTO Media,vapor Liquid Seperation Package: Wooden Box,Ton Bags+Palletize,On Request
Shape: Customized Shape,Cyliner Response Time: Within 24 Hours
After-sales Service Provided: Yes Advantages: Big Operation Flexibility
Highlight:

Wire Mesh Mist Eliminator

,

Metal Wire Mesh Mist Eliminator

,

Mist Eliminator Column Internal

Tower Internals & Pad Mist Eliminator

Wire mesh demister, also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.

Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.

Tower Internals

Specifications

Net Block Grid
Material Code Standard NO. Material Code Standard NO.
Q235-A Q235-A GB434 Q235-A Q235-A GB327
20 20 BG3206 20 20 GB711
0Gr18Ni10Ti 321   0Gr18Ni9 304 GB423
0Gr17Ni12Mo2 316 0Gr18Ni10Ti 321
00Gr19Ni11 304L 00Gr17Ni12Mo2 316
00Gr17Ni14Mo2 316L 00Gr17Ni14Mo2 316L
RS-2 RS-2 Steel Grades 00Gr17Ni14Mo2 316L
NS-8 NS-80 Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on.
Note: use other materials bearing the note when ordering
NS-80A NS-80A
Brass Wire H68, H65 GB310
Tin-copper Wire QSn GB3128
Nickel N4, N6, N7, N8 GB3120
Titanium and Titanium Alloy TA2, TA3, TC3, TC4 GB3623

Standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m3
Specific surface area: 403.5 m2/m3
Porosity : 0.9839ε

High Running type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε

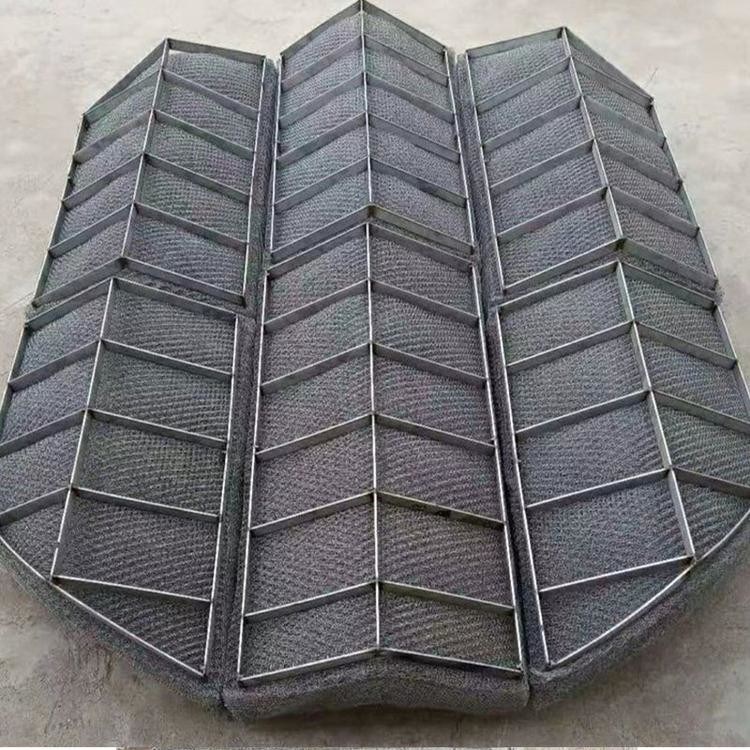

Metal Wire Mesh Mist Eliminator Column Internal Manufacturer In China 1
