| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001 |
| Model Number: | Demister Filter |
| Minimum Order Quantity: | |10 set/sets |
| Price: | $300.00 - $5,000.00/ set |
| Packaging Details: | Conventional packing |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 300 set / sets per Month |
| Type: | Black Wire Mesh | Usage: | Filter |
|---|---|---|---|
| Material: | Stainless Steel Wire | Hole Shape: | Round |
| Thickness: | 100-200mm | Length: | 300-6400mm |
| Demister Filter Application: | Chemical, Petroleum, Sulfate, Medicine, Light Industry | Function: | Tower, Columns |
| Material: | Stainless Steel, PP | Size: | 100-5000mm Dia |
| Height: | 100mm, 150mm, 200mm, 250m, 300mm | ||
| Highlight: | Distillation Column Demister Filter,Wire Demister Filter,Stainless Steel Wire Demister Filter |
||

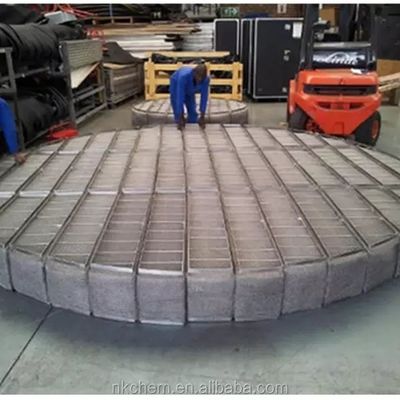

SS304 SS316 demister filter Column tower Internal
Wire mesh demister, also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.
Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
Specifications
| Net Block | Grid | ||||
| Material | Code | Standard NO. | Material | Code | Standard NO. |
| Q235-A | Q235-A | GB434 | Q235-A | Q235-A | GB327 |
| 20 | 20 | BG3206 | 20 | 20 | GB711 |
| 0Gr18Ni10Ti | 321 | 0Gr18Ni9 | 304 | GB423 | |
| 0Gr17Ni12Mo2 | 316 | 0Gr18Ni10Ti | 321 | ||
| 00Gr19Ni11 | 304L | 00Gr17Ni12Mo2 | 316 | ||
| 00Gr17Ni14Mo2 | 316L | 00Gr17Ni14Mo2 | 316L | ||
| RS-2 | RS-2 | Steel Grades | 00Gr17Ni14Mo2 | 316L | |
| NS-8 | NS-80 | Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on. Note: use other materials bearing the note when ordering |
|||
| NS-80A | NS-80A | ||||
| Brass Wire | H68, H65 | GB310 | |||
| Tin-copper Wire | QSn | GB3128 | |||
| Nickel | N4, N6, N7, N8 | GB3120 | |||
| Titanium and Titanium Alloy | TA2, TA3, TC3, TC4 | GB3623 | |||
Standard type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
High efficient type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m3
Specific surface area: 403.5 m2/m3
Porosity : 0.9839ε
High Running type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
