Basic Information
Place of Origin: china
Brand Name: NAIKE
Certification: ISO 9001:2008
Model Number: MBBR
Minimum Order Quantity: 10 cubic meters
Price: USD+200.00+cubic meters
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 cubic meters per Month
Contact Now

Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 0
Product Parameters
Brief introduction

MBBR filter media is a new biological suspension carrier which modified polymetric material with the promoted addition of bio enzyme, adaptable for all kinds of microoganism to grow and reproduction rapidly to dissolve organics in the water.
It process excellences of large specific surface, being easy to multiply biofilm, unease to fall off, high denitrification, good hydrophile, high biological activity and so on. It widely used in the MBBR sewage treatment biofilter, aquaculture farms, Koi Filter Media,etc.



Principal Characters:

◆ Scientific formula and process, to accelerate the forming biofilm .
◆ Large specific surface area of filler,to attach huge amounts of organism.
◆ Rely on biofilm treatment, to save the return sludge.
◆ Super decarburization,ammonia nitrogen removal capacity, to improve water quality.


Product technical data:

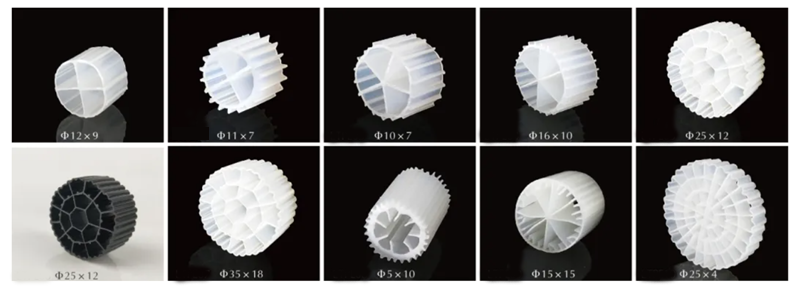

Size=Diameter* Height (mm)
12*9
11*7
10*7
16*10
25*(7-12mm)
25*4
5*10
15*15
Density(g/cm3)
0.94-0.97
0.94-0.97
0.94-0.97
0.94-0.97
0.94-0.97
0.94-0.97
1.02-1.05
0.94-0.97
Surface are (m2/m3)
>800
>900
>1000
>800
>500
>1200
>3500
>900
Void ration(%)
>85
>85
>85
>85
>90
>90
>85
>85
Dosing ratio (%)
15-67
15-68
15-70
15-67
15-65
15-69
15-70
15-68
Membrane-forming time (days)
3-15
3-15
3-15
3-15
3-15
3-15
3-15
3-15
Nitrification efficiency
( g NH4-N/m3.d )
400-1200
400-1200
400-1200
400-1200
400-1200
400-1200
400-1200
400-1200
BOD5oxidation effciency
( g BOD5/m3.d )
2000-10000
2000-10000
2000-10000
2000-10000
2000-10000
2000-10000
2000-10000
2000-10000
COD oxidation efficiengcy
( g COD/m3.d )
2000-15000
2000-15000
2000-15000
2000-15000
2000-15000
2000-15000
2000-15000
2000-15000
Appliacable temperature ( ℃)
5-60
5-60
5-60
5-60
5-60
5-60
5-60
5-60
Life-span(year)
>15
>15
>15
>15
>15
>15
>15
>15
Using scope:
◆ Project title, the amount of upgrading sewage treatment plant. ◆ New sewage treatment project of MBBR and BAF process. ◆ Aquaculture in removal of ammonia nitrogen, water purification. ◆ Biochemical treatment of reclaimed water. ◆ River nitrogen, Phosphorus removal. ◆ Biological filler biological deodorization tower. ◆ Application industry.

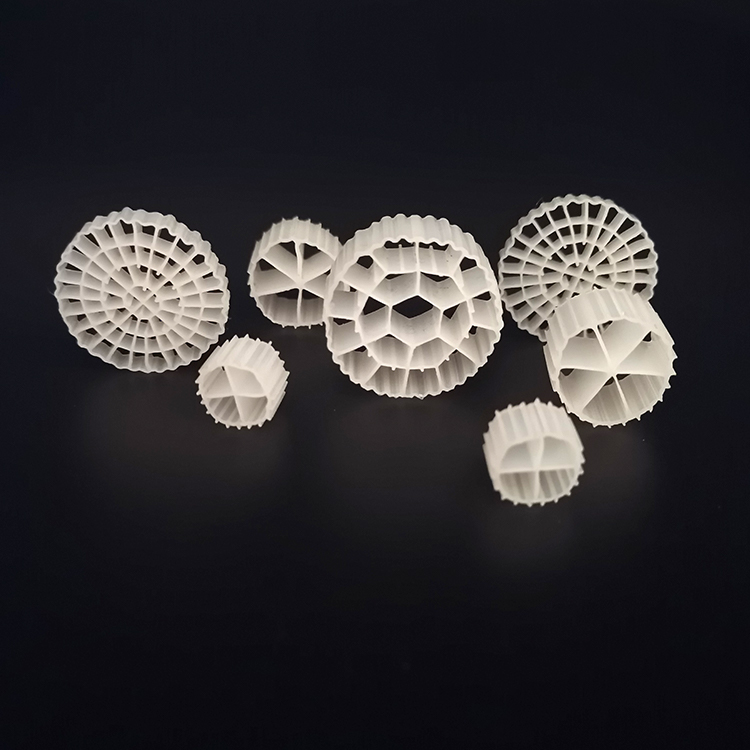

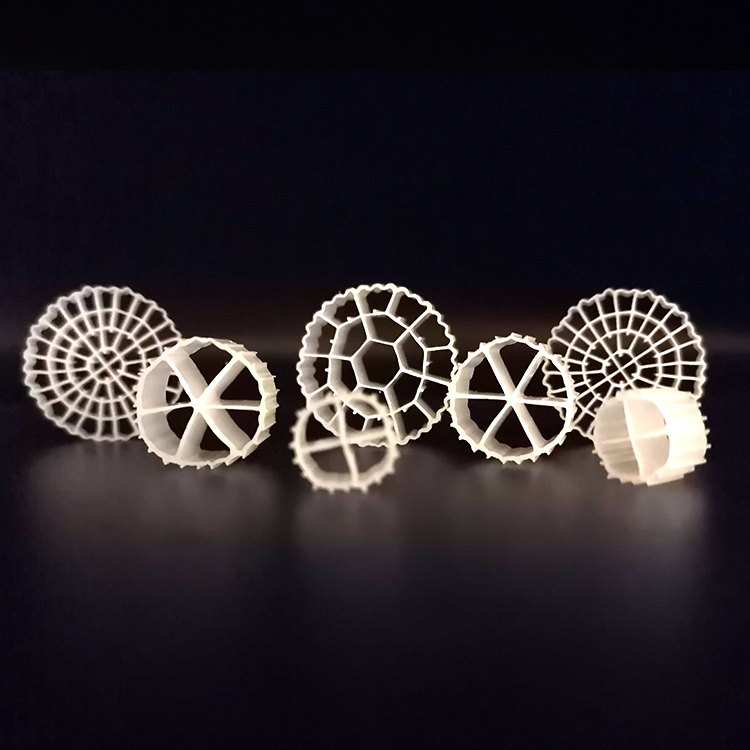

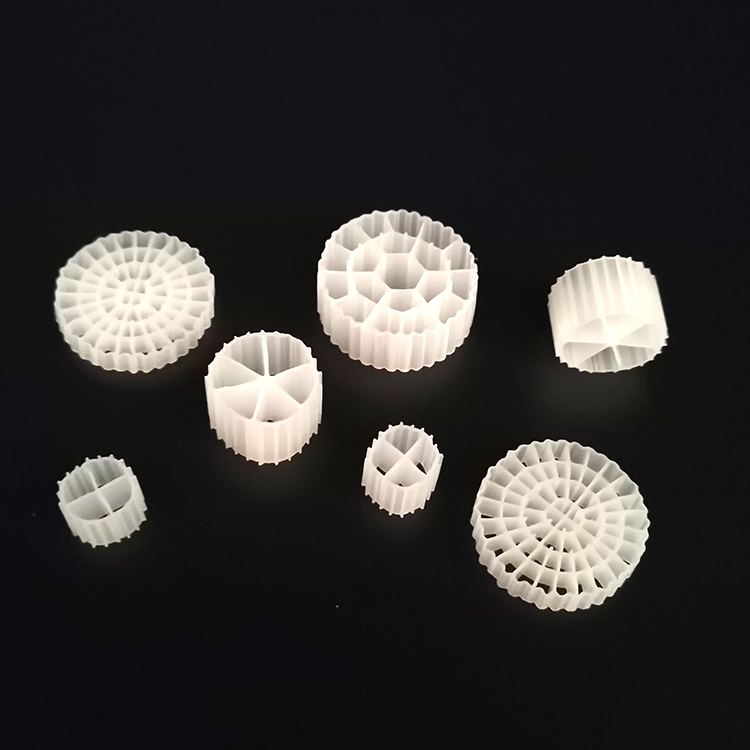

Details Images
MBBR(moving bed biofilm reactor) media is a novel biologically active carrier, it adopts scientific formula, depending on the nature of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, through a special process modification, construction, with more than large surface area, hydrophilic, high biological activity, biofilm fast, good effect, good impact resistance. MBBR water treatment floating bio filter media is a novel biologically active carrier,it using scientific formula, according to the different natures of water, blending a variety of beneficial microorganisms grow quickly attached trace elements in polymer materials, of the microorganism has attached trace element, through special process modification, structure.Bio filter's internal growth anaerobic bacteria, produce the denitrification reaction can nitrogen;External growth good bacteria, removing organic matter;The whole process includes both nitrification and denitrification process.
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 1
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 2
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 3
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 4
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 5
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 6
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 7
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 1

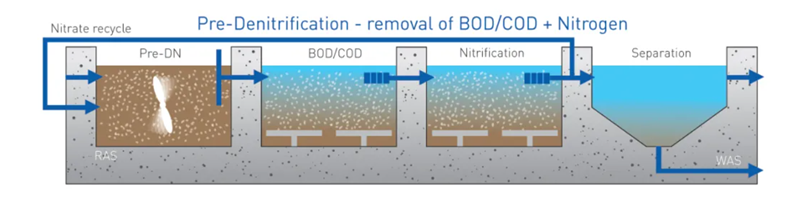

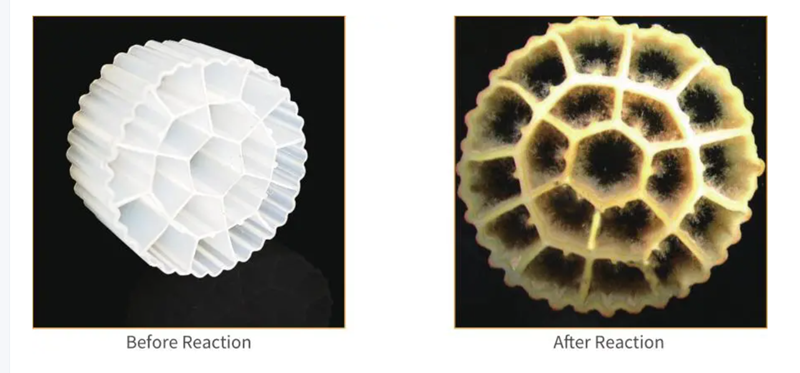

Process Principal The waste water go through the suspending media of MBBR reactor, form the biological membrane on the surface of the media gradually, with the action of the microbial on the biological membrane, the waste water is purified. The media can move freely in the reactor with the mixing of the water; For the aerobic reactor, the aeration will make the media move; For the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media for the MBBR process, has better treatment effect compare to traditional media.
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 9

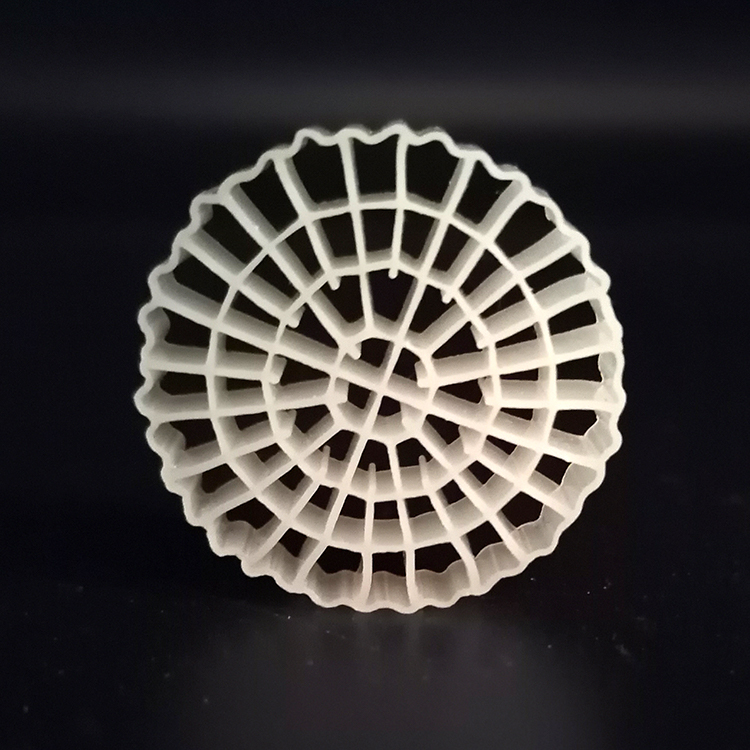

MBBR Media Core Technology 1 Special design of surface,stronger bio-film growth capacity. 2 Large specific surface area,high voidage,the more periphyton biomass. 3 Unique design of structure and shape according to hydromechanics,strong three-dimensional flow dynamics in the water. 4 Adding hydrophiic groups and other trace elements,the biofilm formation time only 3-15 days. 5 Excellent impact strength,strong gas shear capacity. 6 Without any holder,easy to cure,save energy and space.
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 10
Recommend Products
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 11
Company Profile
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 12
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 13
Exhibition
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 14
Cooperation Case
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 15
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 16
Biocell Filter Media, MBBR Settling Packing, Koi Pond Filter Media Wastewater Treatment 10 Year Virgin PE 1m3 95-150 Kg/ 17
FAQ
Q1.Q:What are your main products? A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc... Q2:Why to choose us? A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price Q3:What is the MOQ? A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton. Q4:What is the delivery time? A:It will takes about 3-5 days. But the exact time is according to actual situation. Q5:How do I pay for my purchase order? A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc... Q6:Can I have my own customized product? A:Yes, your customized requirements are welcome.
