| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001 |
| Model Number: | plastic cage ball |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $220.00 - $400.00/ cubic meter |
| Packaging Details: | Conventional packing |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 300 Cubic Meter/Cubic Meters per Month |
| Materail: | PP,PE,RPP,PVC, CPVC, PVDF Etc... | Size: | 38,50,76mm,etc... |
|---|---|---|---|
| Appearance: | White Ball | Application: | Available For Stripping, Absorbing And Washing |
| Usuage: | Water Treatment |

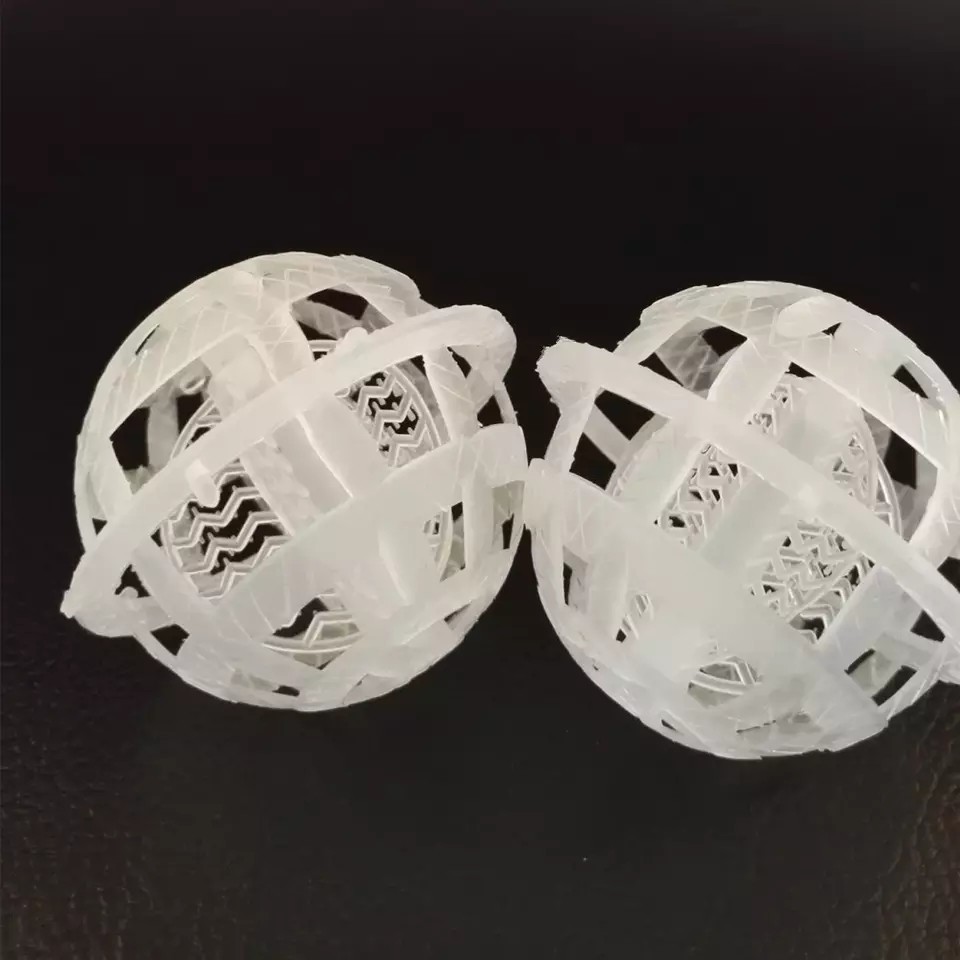

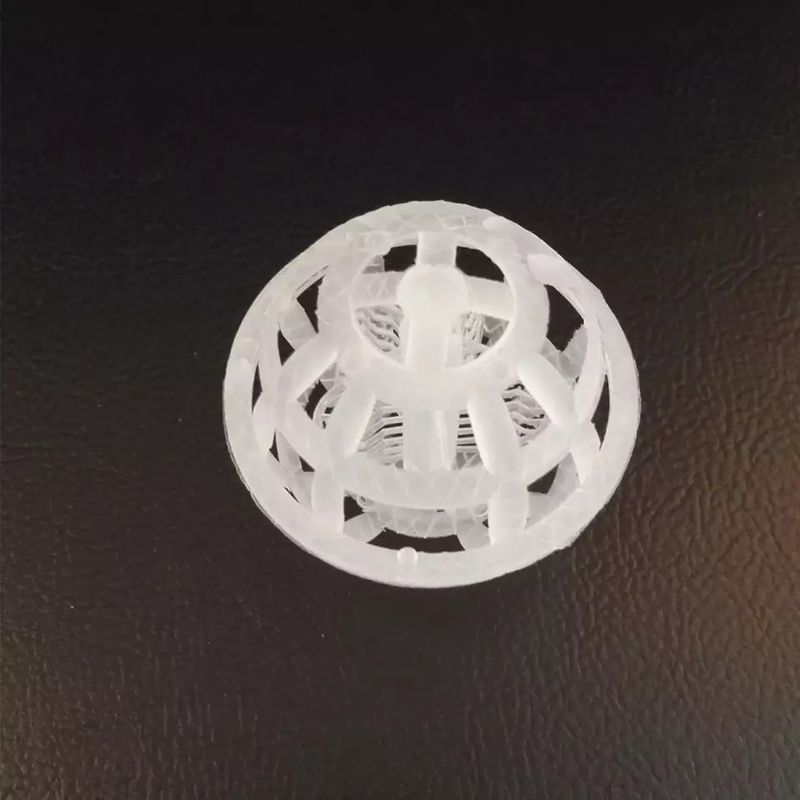

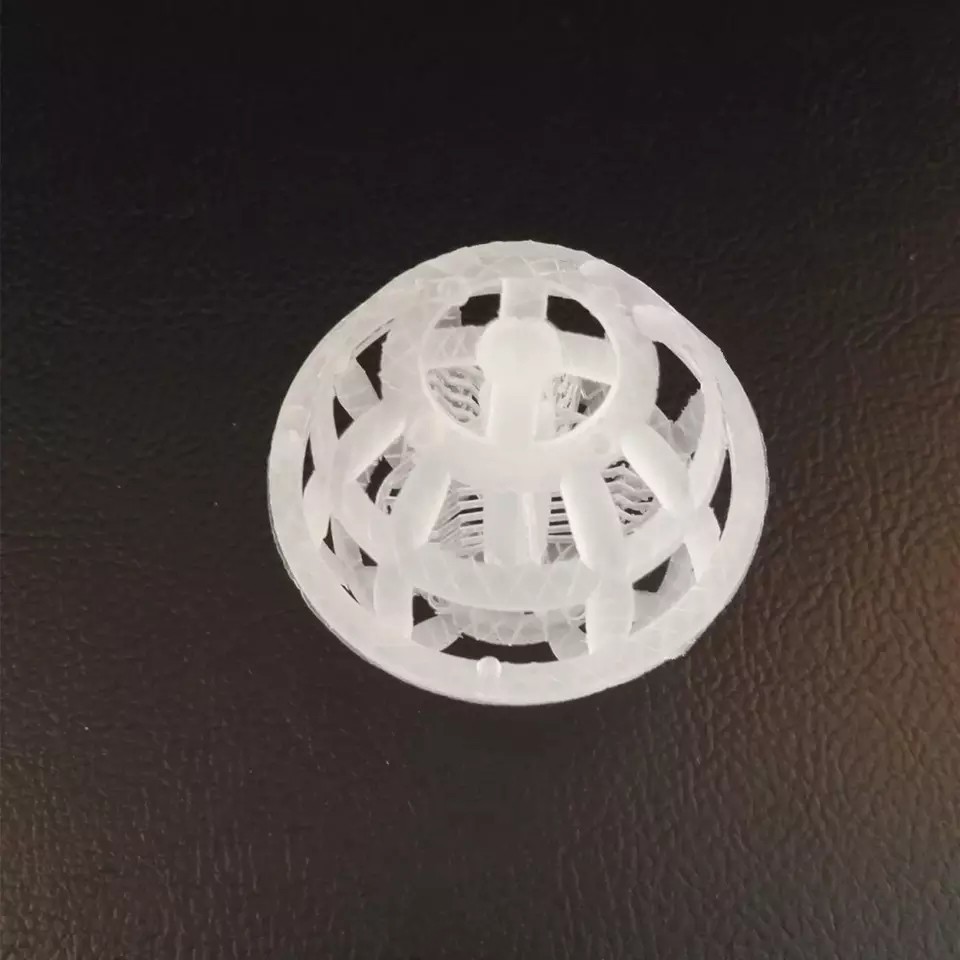

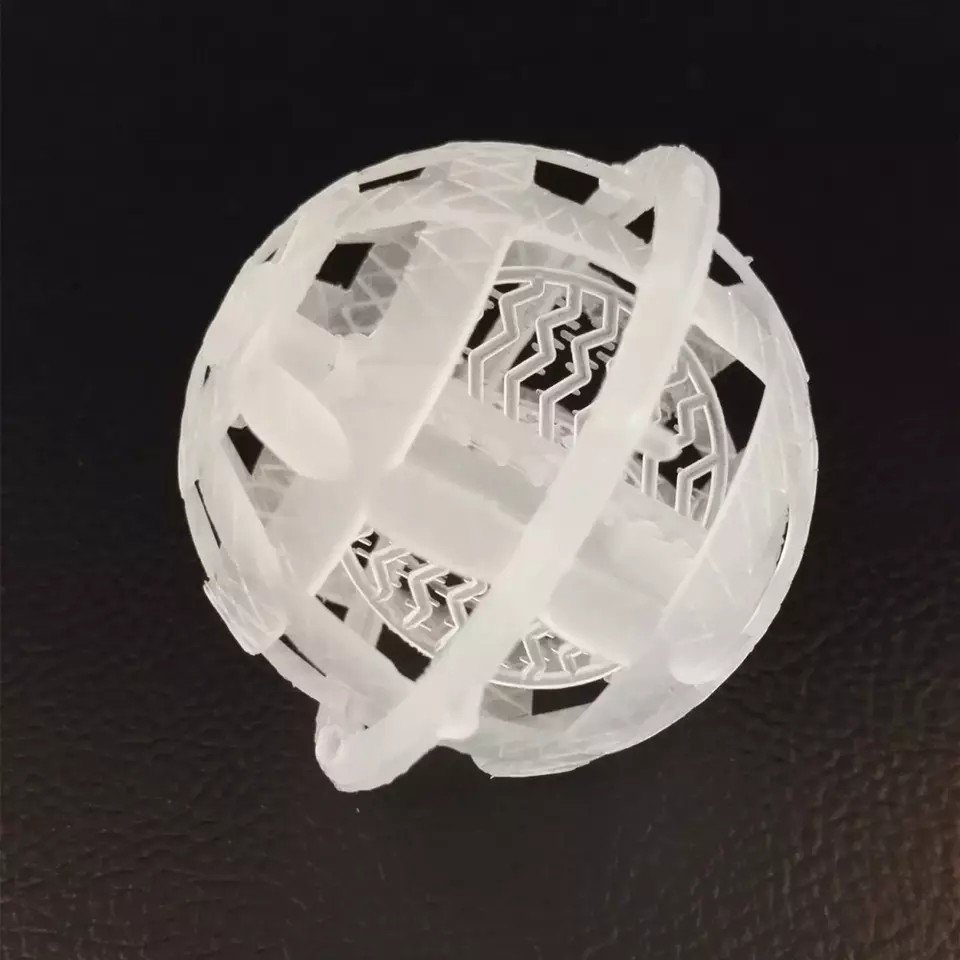

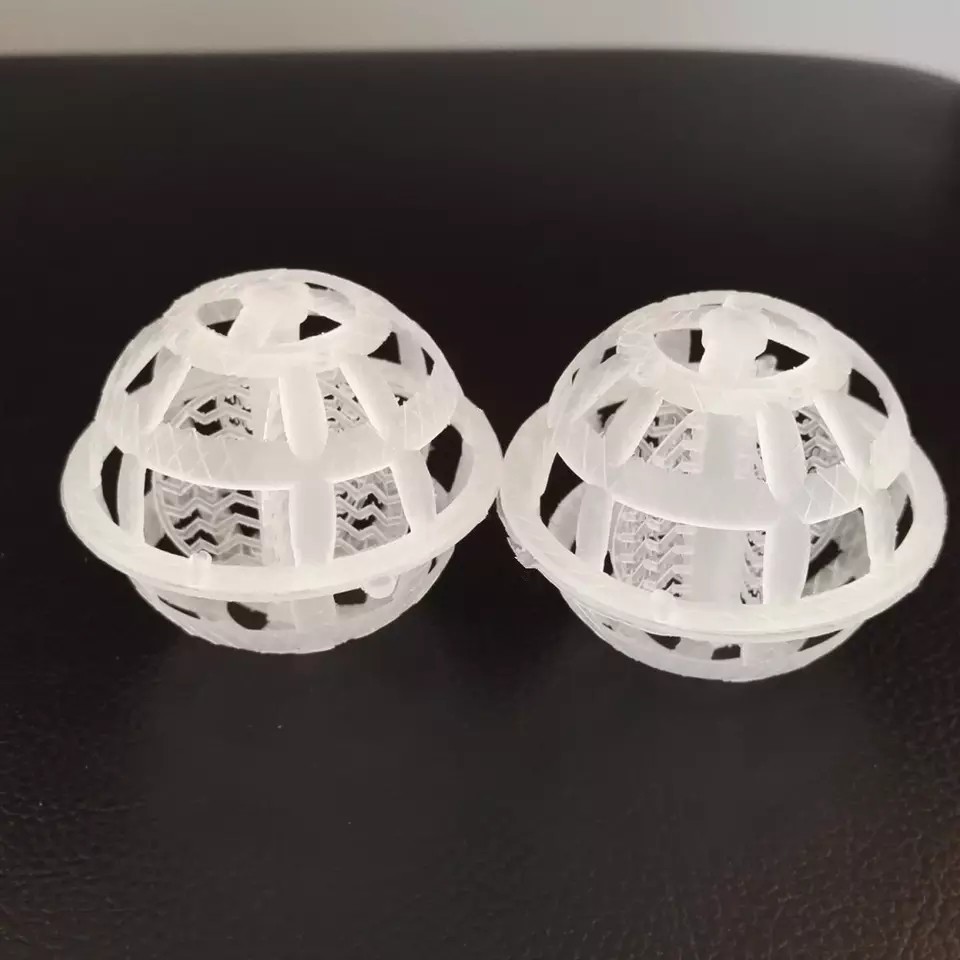

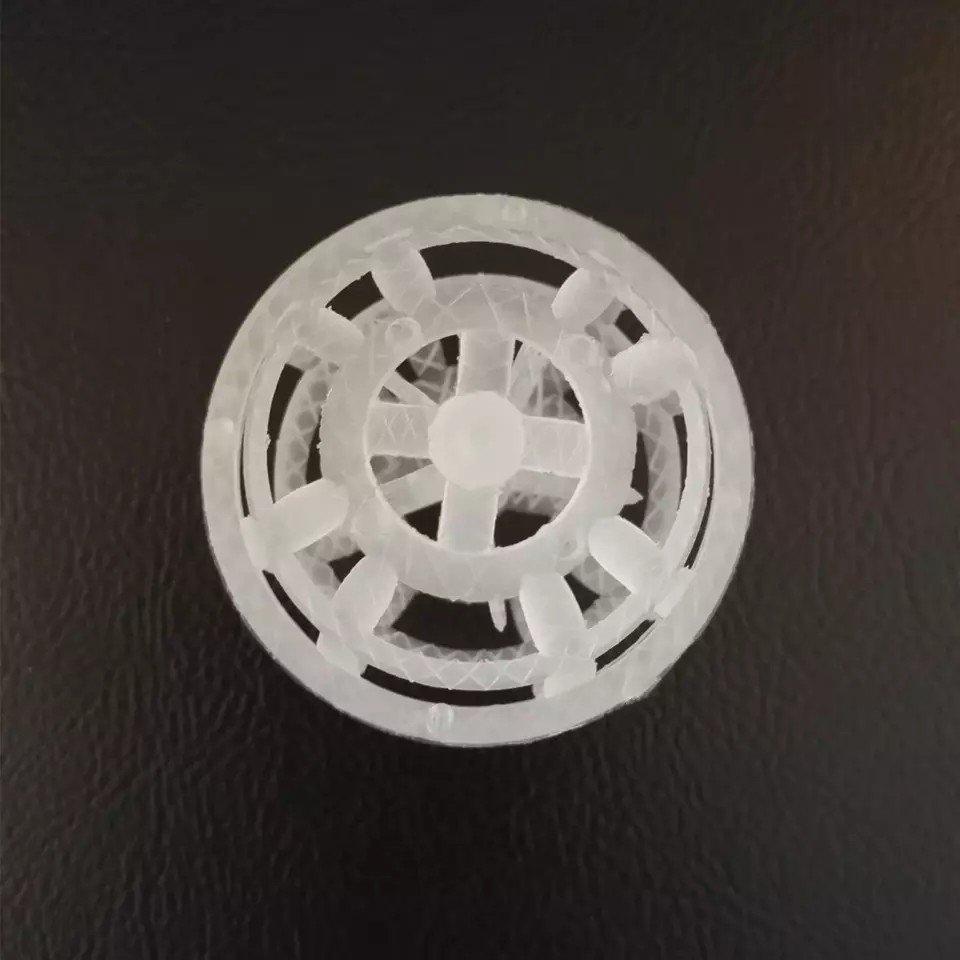

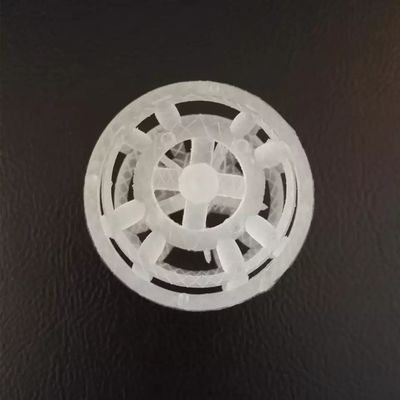

Plastic cage ball detail
Introduction:
Plastic cage ball has these characteristics,large voidage,heat resistance,chemical corrosion resistance,low pressure drop and mass transfer unit height,high pan-point,vapor and liquid contacted fully,small proportion,high mass transfer efficiency,etc...
In a variety of media,the operation temperature is 60-150°c,it is widely usded in the packing tower in pertroleum,chemicals,chlor-alkaki,gas and environmental industries.
Besides,it can be usded in a variety of horizontal acid tanks and condensate and desalting water tanks in water treatment.This packing reduces the heat loss in large extent and the pullution of dioxide carbon and oxygen o water in acid mist and air,and protects operator's health,so as to maintain the water quality,save energy and clean up the environment.
This packing can be usded in a variety of horizontal acid tanks and condensae and desalting water tanks in water treatment. It reduces the heat loss in large extent and the pollution of dioxide carbon and oxygen to water in acid mist and aire.
Technical specification:
|
Type | specifific surface are m2/m3 | Void Volume % | Heaping Weight Kg/m3 | No.of elements n/m3 | Packing factor m-1 |
| Φ38 | 96 | 88 | 110 | 22000 | 141 |
| Φ50 | 82 | 90 | 88 | 10480 | 112 |
Physical & Chemical Properties of Plastic Random Packings
| Material Item | PE | PP | RPP | PVC | CPVC | PVDF |
| Density,g/cm3 | 0.94-0.96 | 0.89-0.91 | 0.92-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Working temperature, | ≤90 | ≤100 | ≤120 | ≤60 | ≤90 | ≤150 |
| Chemical resistance | Corrosion resistant | |||||
| Compressive strength, N/mm | ≥6.0 | ≥6.5 | ≥7.0 | ≥6.0 | ≥8.0 | ≥10.0 |
