| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001:2008 |
| Model Number: | PP Raschig Rings |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $180.00 - $300.00/ cubic meter |
| Packaging Details: | Conventional packing |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 500 Cubic Meter/Cubic Meters per Month |
| Processing Service: | Moulding, Cutting | Size: | 25mm, 38mm, 50mm |
|---|---|---|---|
| Material: | PP,RPP,PVC,CPVC,PVDF,PE,etc... | Application: | As Column Tower Packing |
| Keyword: | PP Raschig Rings | ||
| Highlight: | PP Raschig Rings For Tower Packing,PVDF Random Packing Raschig Rings,PVDF Random Packing For Stripping Tower |
||

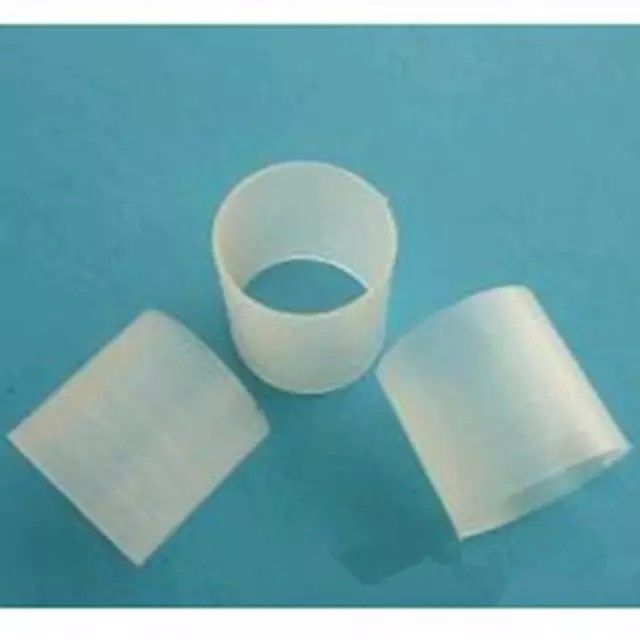

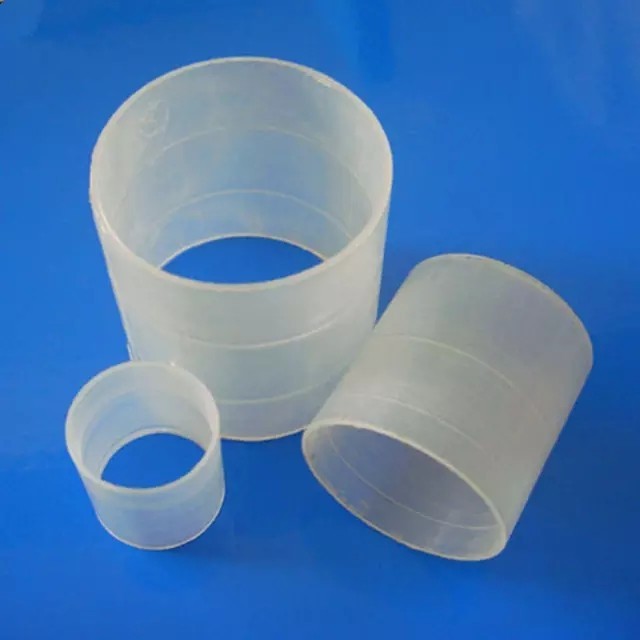

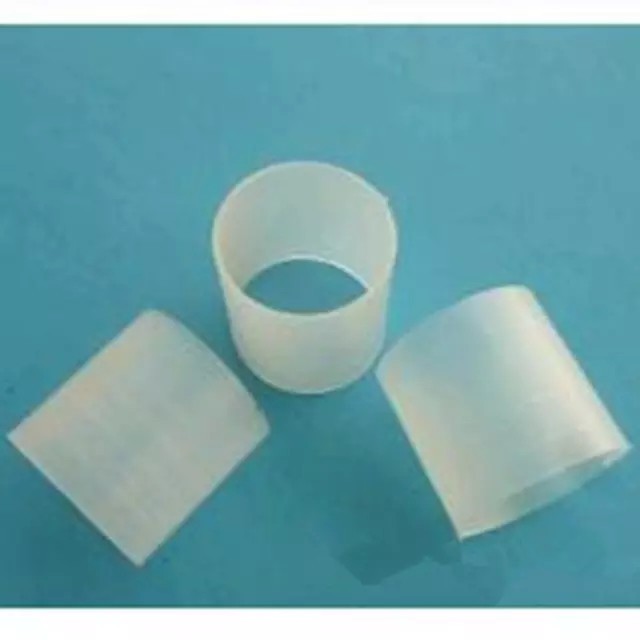

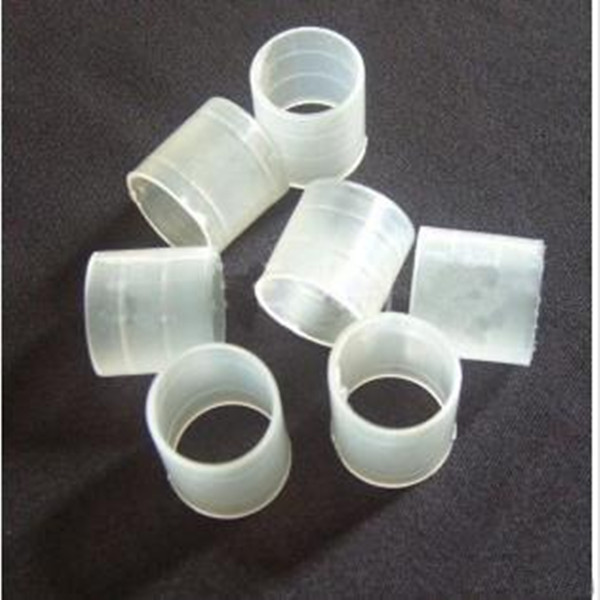

PP Raschig Rings
NAIKE PP Raschig Rings are pieces of tube (approximately equal in length and diameter) used in large numbers as a packed bed within columns for distillations and other chemical engineering process. PP Raschig Rings provide a large surface area within the volume of the column for interaction between liquid and gas or vapour. PP Raschig Rings are named after their inventor, the German chemist Friedrich Raschig.
| Advantage of PP Raschig Rings | |||
| High Void Ration | |||
| Low Pressure Drop | |||
| Low mass-transfer unit height | |||
| High flooding point | |||
| small specific gravity | |||
| High mass transfer efficiency |
| Application of PP Raschig Rings | ||||
| Absorbers | ||||
| Degassing | ||||
| Liquid/liquid extraction | ||||
| water treatment | ||||
| Heat transfer |
| Packing of PP Raschig Rings | |||
| 25kgs/50kgs compound plastic bag | |||
| 1 cubic meter Jumbo bag | |||
| Other packing is available upon your request. |
| Technical Parameter of PP Raschig Rings | ||||||||
| D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
| 25*25*1.0 | 210 | 90 | 48500 | 88 | 86 | |||
| 38*38*1.2 | 150 | 91 | 15200 | 70 | 90 | |||
| 50*50*1.5 | 105 | 92 | 6500 | 65 | 92 | |||
| Physical & Chemical Properties of PP Raschig Rings | ||||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | ||
| Density(g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | ||
| Operation Temp(℃) | 90 | >100 | >120 | >60 | >90 | >150 | ||
| Chemical Corrosion resistance | Good | Good | Good | Good | Good | Good | ||
| Compression Strength(MPa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | ||
