Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing

Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing
Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing
Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing
Basic Information
Place of Origin: china
Brand Name: NKCHEM
Certification: ISO9001:2000
Model Number: plastic random packing
Minimum Order Quantity: 1 cubic meter/cubic meters(Min. order)
Price: $150.00 - $300.00/ cubic meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 3000 cubic meters per Month
Contact Now
Product Range: Pall Ring, Raschig Ring, Tellerette Ring Etc Product Name: Plastic Random Packing
Classification: Tower Packing, Column Packing, Air Scrubber Packing Color: White, Grey, Yellow, Transparent Etc
Material: Contact Customer Service, PP, PE, CPVC, PVC, PVDF Available Sizes: 16, 25, 38, 50, 76, 90mm
Product Name: Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm
Highlight:

Intalox Saddles Plastic Ring 25mm

,

Intalox Saddles Plastic Ring 38mm

,

Intalox Saddles Plastic Ring 50mm

Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 0
Product Parameters

NAIKE Plastic Pall Ring is versatile. This product was advanced on the basis of Plastic Rasching Ring, and compared with it, both of them have similar cylindrical dimensions but the Plastic Pall Ring has two rows of punched out holes, with fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the packing, in terms of throughput, efficiency and pressure drop.


Advantage ●High Free Volume ●Low Pressure Drop ●Low mass-transfer unit height ●High flooding point ●small specific gravity ●High mass transfer efficiency


Application ●Absorbers ●Degassing ●Liquid/liquid extraction ●water treatment ●Heat transfer


Packing
●25kgs/50kgs compound plastic bag
●1 cubic meter Jumbo bag
●Other packing is available upon your request.

Technical Parameter
D×H×δ mm
Specific area m2/m3
Void Rate %
Bulk Number pcs/m3
Package Density (kg/m3)
F factor m-1
16*16*0.8
188
91
170000
68
275
25*25*1.0
175
90
53500
57
239
38*38*1.2
115
89
15800
53
220
50*50*1.5
93
90
6500
46
127
76*76*2.2
73.2
92
1927
41
94
100*100*3.4
52.8
94
880
38
82
Physical & Chemical Properties
Performance/Material
PE
PP
RPP
PVC
CPVC
PVDF
Density(g/cm3)
0.94-0.96
0.89-0.91
0.93-0.94
1.32-1.44
1.50-1.54
1.75-1.78
Operation Temp(℃)
90
>100
>120
>60
>90
>150
Chemical Corrosion resistance
Good
Good
Good
Good
Good
Good
Compression Strength(MPa)
>6.0
>6.5
>7.0
>6.0
>8.0
>10.0
Details Images

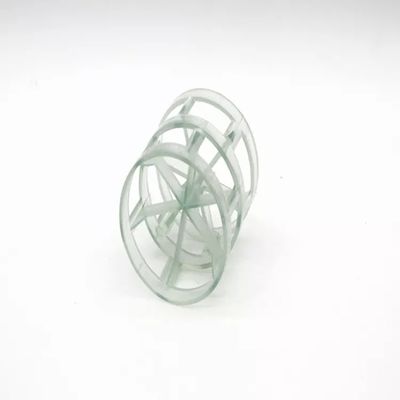

Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 1

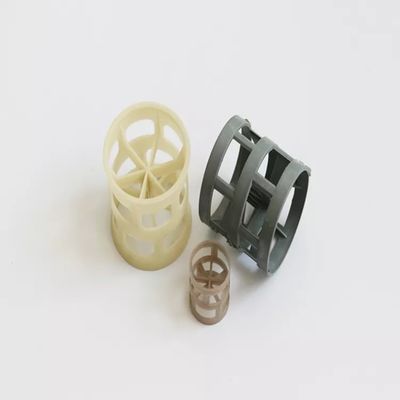

Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 2
Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 3
Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 4
Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 5
Intalox Saddles Plastic Ring 25mm 38mm 50 Mm 76 Mm For Cooling Tower Packing 6
