hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf

Basic Information
Place of Origin: china
Brand Name: NKCHEM
Certification: ISO9001:2008
Model Number: NK-PSR
Minimum Order Quantity: 1 cubic meters
Price: USD+190.00+1Cubic Meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 3000 cubic meters per Month

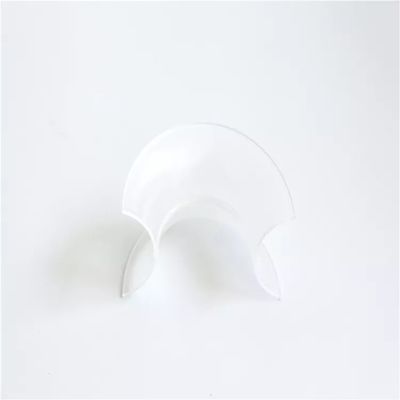

hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 0
Product Parameters

NAIKE Plastic Intalox Saddle Ring'middle part of this packing is the arc liquid channel so that the flow of air along with arc liquid channel. As big voidage, low pressure drop, low height of mass transfer unit, low specific weight, abundant of gas-liquid contact, the excellent efficiency of transfer, the application temperature ranges in 60 to 150 degree. it is widely adopted in packing tower of Alkaili-Chloride, petroleum, coal gas, chemical, environment industry etc..

Advantage ●Big voidage ●Low Pressure Drop ●Low mass-transfer unit height ●Low Specific Weight ●Abundant of Gas-liquid contact ●Excellent efficiency of transfer


Application ●Absorbers ●Degassing ●Liquid/liquid extraction ●water treatment ●Heat transfer

Packing
●25kgs/50kgs compound plastic bag
●1 cubic meter Jumbo bag
●Other packing is available upon your request.

Technical Parameter
D×H×δ mm
Specific area m2/m3
Void Rate %
Bulk Number pcs/m3
Package Density (kg/m3)
F factor m-1
25*12.5*1.0
288
84.7
97680
127
473
38*19*1.2
265
95
25200
63
405
50*25*1.5
250
96
9400
70.5
332
76*38*3.0
200
97
3700
61
289
Physical & Chemical Properties
Performance/Material
PE
PP
RPP
PVC
CPVC
PVDF
Density(g/cm3)
0.94-0.96
0.89-0.91
0.93-0.94
1.32-1.44
1.50-1.54
1.75-1.78
Operation Temp(℃)
90
>100
>120
>60
>90
>150
Chemical Corrosion resistance
Good
Good
Good
Good
Good
Good
Compression Strength(MPa)
>6.0
>6.5
>7.0
>6.0
>8.0
>10.0
Details Images

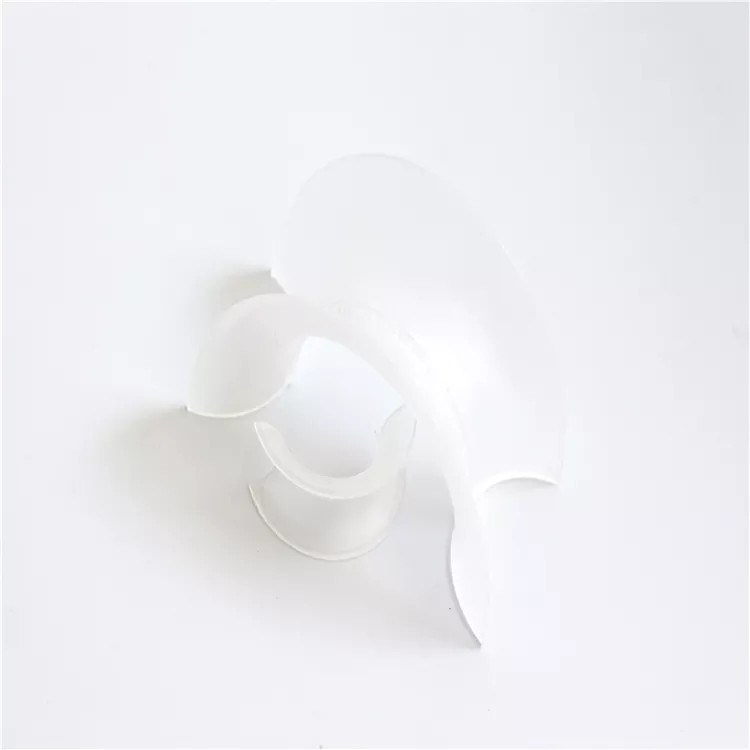

hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 1
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 2
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 3
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 4
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 5
Recommend Products
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 6
Company Profile
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 7
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 8
Exhibition
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 9
Cooperation Case
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 10
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 11
hard plastic 2022 Plastic Saddles 38mm Berl Tower Metal Intalox Saddle Packing Ring pvdf 12
FAQ
Q1:What are your main products? A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc... Q2:Why to choose us? A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price Q3:What is the MOQ? A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton. Q4:What is the delivery time? A:It will takes about 3-5 days. But the exact time is according to actual situation. Q5:How do I pay for my purchase order? A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc... Q6:Can I have my own customized product? A:Yes, your customized requirements are welcome.
