| Place of Origin: | JIANGXI |
|---|---|
| Brand Name: | NAIKE |
| Certification: | ISO9001 |
| Model Number: | no |
| Minimum Order Quantity: | 1.0 Cubic Meter/Cubic Meters (Min. Order) |
| Price: | $0.42+1kg |
| Packaging Details: | 25kgs or 50kgs carton box or 150kgs iron drum with pallet, or accroding to the client requirements |
| Delivery Time: | 10 days for one 20GP container |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Cubic Meter/Cubic Meters per Year |
| Material: | PP, PE, PVC, CPVC, PVDF | Color: | White |
|---|---|---|---|
| Usage: | Random Packing | Item Name: | CPVC VSP Ring Random Packing |
| Application: | Adsorption, Scrubbing, Separati |

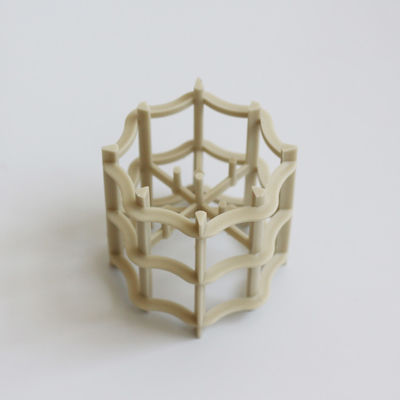

• NAIKE- Plastic VSP Ring
| Properties | ||||||
| Property /Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density g/cm3 | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Application temperature | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | good | good | good | good | good | good |
| Compression Strength | 90 | >100 | >120 | >60 | >90 | >150 |
| Technical Data | ||||||
| Specification | D×H×T | Specific Area | Void ratio | Number | Bulk Density | Drying Packing Factor |
| mm | mm | m2/m3 | m3/m3 | n/m3 | kg/m3 | m-1 |
| φ25 | 25×12.5×1.2 | 250 | 0.93 | 81000 | 90 | 310 |
| φ38 | 38×19×1.4 | 138 | 0.95 | 26800 | 78 | 163 |
| φ50 | 50×25×1.5 | 121 | 0.95 | 5250 | 76 | 144 |
| φ76 | 76×38×2.5 | 75 | 0.95 | 3400 | 70 | 86 |
Advantages
1. High void ratio, Low pressure drop
2. Low mass-transfer unit height
3. High flooding point, uniform gas-liquid contact
4. Small specific gravity, high efficiency of mass transfer
Feature
1.High operating elasticity
2.Excellent inner structure and large free space
3.Low pressure drop, large throughout
4.High efficiency and operating elasticity
Application
It is widely used in the fields of petroleum, chemical engineering, chlor-alkali, coal gas and enviromental protection industries.
