Plastic Structured Tower Packing As Purification Of Tail Gas

Basic Information
Place of Origin: Jiangxi, China
Brand Name: NAIKE
Certification: ISO9001:2008
Model Number: 0951
Minimum Order Quantity: 30Cubic Meter/Cubic Meters (Min. Order)
Price: CN¥2,101.14 - CN¥3,501.90
Packaging Details: by wooden box with pallet or cutomized.
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 100 Cubic Meter/Cubic Meters per Month
Product Name: Plastic Sructured Tower Packing Type: 125Y,250Y,350Y,500Y
Dimension: 100-5000mm Dia, Customized MOQ: 1 Cubic Meter
Advantage: Light Weight, Low Pressure Drop Material: Plastic(PP, PVC, PE, PVDF, CPVC)
Color: Various Workmanship: Perforated, Conrugated
Surface Area: 125-500m2/m3

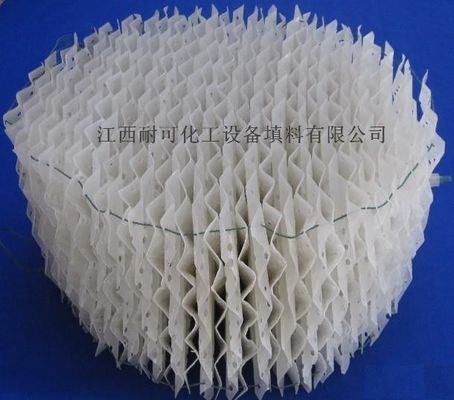

Plastic Structured Tower Packing As Purification Of Tail Gas

Plastic Structured Tower Packing As Purification Of Tail Gas 0


Plastic structured tower packing has advantages such as light, high capacity, low pressure drop, large specific surface area, easy replacement, etc. It is widely used in unit operations like rectification, absorption and extraction. The material's heat resistance reaches 100°C for PP and 150°C for PVDF. The packing sheet may be perforated with small holes to increase mass transfer efficiency. If the separation requirement is not high, it needs no perforation to increase sheet stiffness.


Material : PP ,PVC, PVDF, PPR mic.


plastic structured packing technical Specification:


Size Specifific surface area m²/m3 Void volumme % Wave height mm Bulk desity kg/m3 Packing factor m-1
125Y 125 98.5 25.4 65 3
250Y 250 97 12.5 85 2.6
350Y 350 95 9 120 2.0
500Y 500 93 6.3 150 1.8


Types of Plastic Structured Packing:

1.The wire gauze packing is made of wire Knitting which is a mixture of PP and polyaor ylonitrile.

2. The plastic corrugated platepacking is made of pp or PVDF plate, which can be perforated to increase mass transferring efficiency.

Company Information:
Naike Chemical tower packing Co.,Ltd, the top leading mass transfer products manufacturer of tower packing (column packing) and chemical ceramic. Naike Chemical Tower Packing Co., Ltd (also known as Naike Co.) was established from the consortion of several existing factories of long history.

Naike's main business: Column/Tower Packings (structured & random column packings in ceramic, metal and plastic), Ceramic products for Petrochemical, Chemical & Environmental industry etc (including: inert alumina ceramic balls for catalyst bed support media, alumina grinding ceramic balls/cylinders& Lining bricks, ceramic foam filters for cast filters in metallurgy/foundry industry and ceramic honeycomb substrate, molecular sieve. Naike is the top leading manufacturer of tower packing & chemical ceramic in China .

Naike has a distinguished and experienced team of experts & engineers to provide our customers the up-to-date mass transfer products & technologies at most competitive price. And our customer service dept is providing fast & good services to our customers because Naike takes the services as one of the important competitive factor too. Naike is the ISO 9001 certified company, quality is the first consideration of Naike. Our products are of German technology & workmanship but at Chinese competitive price.

Stock, To meet the requirement of urgent demand of our clients, Naike keeps enough quantity products in stock especially for the traditional standard random & structured packing, ceramic balls and molecular sieve.

Applications: Petrochemical, Chemical, Pollution Control, Metallurgy industry etc.


Random tower packing (column packing): intalox saddle, Super saddles, Nutter ring, Cross partition ring, Cascade ring, Raschig ring, Conjugate ring, Catalyst bed support inert alumina ceramic ball, VSP etc. material available with ceramic, plastic, metal.

Structured tower packing (column packing): ceramic, plastic, metal structured tower packing.

Ceramic products: Ceramic Honeycomb Substrate, Ceramic Foam Filters, Molecular sieve, Acid resistant ceramic, Wear resistant ceramic, Grinding ceramic ball, Heat exchange ceramic and so on.
