PP PE PVC Plastic Cascade Mini Ring For Chemical Tower Packing

Basic Information
Place of Origin: Jiangxi, China
Brand Name: NAIKE
Model Number: NK-PCR-0004
Minimum Order Quantity: 1.0 Cubic Meter/Cubic Meters (Min. Order)
Price: CN¥980.54 - CN¥1,610.88
Packaging Details: plastic woven bag, 0.1m3/bag jumbo bag, 1m3/bag
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 3000 Cubic Meter/Cubic Meters per Year
Processing Service: Cutting Classification: Tower Packing, Column Packing, Random Packing
Size: 16, 25, 38, 50, 76mm Etc Bulk Density: 68-98kg/m3
Application: Scrubber Packing, Washing Tower Packing Material: PP.PVC.PE.CPVC.PVDF, RPP

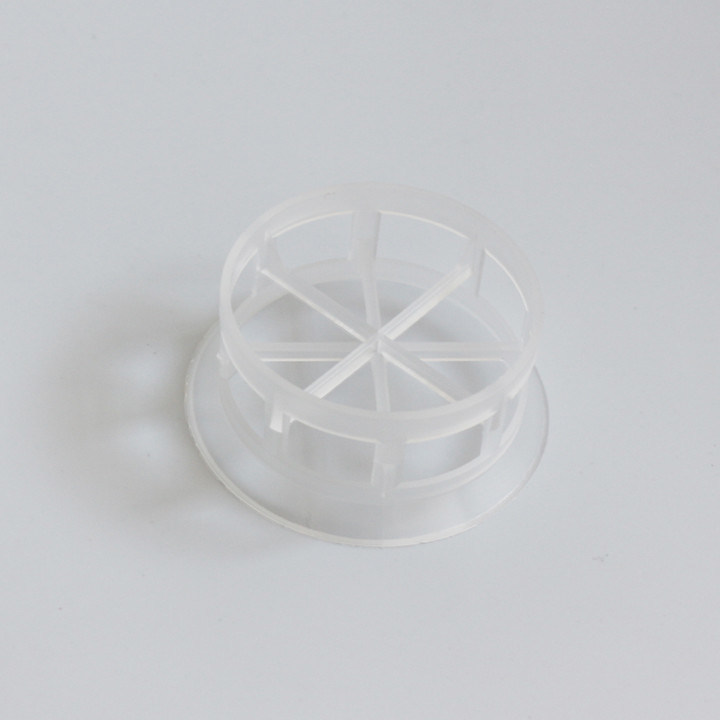

Plastic Cascade Mini Ring


PVC Cascade Mini Ring


PE Cascade Mini Ring

PP PE PVC Plastic Cascade Mini Ring For Chemical Tower Packing

PP PE PVC Plastic Cascade Mini Ring For Chemical Tower Packing


37 years professional production experience in tower packing and Molecular Sieves ..



Cascade Ring has been used successfully as an inexpensive and efficient product to increase tower capacity and efficiency. There are numerous process advantages that can be realized by using plastic random column packing in many applications. It is made of anti-chemical corrosion materials,such as PE,PP,RPP,PVC,CPVC and PVDF The feature is that high void ratio,low pressure drop, sufficient gas liquid contact,small specific weight,and high mass transferring efficiency and so on. The working temperature is within 60-150, and widely used in refinery,chemical alkali-chloride,coal gas and environmental protection etc.


• Low aspect ratio increases capacity and reduces pressure drop. The preferred vertical orientation of the packing axes allows free gas flow through the packed bed.
• Low pressure drop and high capacity allows smaller column diameter and blower sizes in new installations.
• Open structure and preferred vertical axis orientation inhibits fouling by allowing solids to be more easily flushed through the bed by the liquid.
• Ring and spoke construction and preferred vertical orientation provide high mechanical strength, which allows use in deep beds.

Application: Absorption and stripping services, many environmental applications.
A variety of different sizes of products provide the ability to optimize capacity and efficiency based on different application requirements.

Technical Parameter:

Name Normal
Thickness mm
Surface area
Void space
Bulk density
Packing factor

Cascade ring
ø25 25*13*1.2 228 90 98 81500 313
ø38 38*19*1.4 133 93 58 27200 176
ø50 50*25*1.5 114 94 55 10740 143
ø76 76*37*3.0 90 93 68 3420 112

The bulk density given here is based on PP material.


Main Products:

Plastic Structured Packing, Plastic Cage Ball, Plastic Pall Ring, Plastic Cascade Ring, Plastic Super Intalox, Plastic Tellerette Ring, Plastic Heilex Ring, Polyhedral Hollow Ball, Plastic Hollow Floatation Ball, Plastic Conjugate Ring, Plastic Intalox Saddles, etc...The material of products also can be made of ceramic or metal.


Product Picture



Company Information



Pingxiang Naike Chemical Industry Equipment Packing Co., Ltd. (also known as NKCHEM), the top leading mass transfer product manufacturer of tower packing (column packing) and chemical ceramic. NKCHEM was established from the consortium of several existing factories with a long history.
