Place of Origin: | CHINA |
---|---|
Certification: | ISO |
Model Number: | NK-PPR |
Minimum Order Quantity: | 1 cubic metre |
Price: | depends on quantity |
Packaging Details: | woven bag |
Delivery Time: | 10 days for one 20GP container |
Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
Supply Ability: | 300m3 per month |
Product Name: | Pall Ring | Material: | PP |
---|---|---|---|
Diameter: | 50mm | Application: | Adsorption, Scrubber |
Classfication: | Tower Packing, Random Packing, Column Packing | ||
Highlight: | PVDF Plastic Pall Ring,CPVC Plastic Pall Ring,PVC Plastic Pall Ring |
100% Virgin PP, PE, PVC,CPVC, PVDF Plastic Pall Ring Packing 50mm For Scrubbing
Product description
Plastic pall ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Physical & chemical properties of plastic random packing
Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
Density (g/cm3) | 0.94-0.96 | 0.89-0.91 |
0.93-0.94 |
1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Plastic Tower Packing pall ring Technical data
Spec. | D*H*T (mm) | Number per m³ | Bulk density (kg/m³) | Surface area (m²/m³) | Free volume (%) | F factor (m-1) |
Dg16 | 16*16*1.1 | 112000 | 141 | 188 | 91 | 249 |
Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 |
Dg38 | 38*38*1.4 | 15800 | 98.0 | 115 | 89 | 220 |
Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 |
Dg76 | 76*76*2.6 | 1930 | 70.9 | 73 | 92 | 94 |
Note: The above data are reference to material PP.
Package info
package | volume | volume/bag | |
20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |

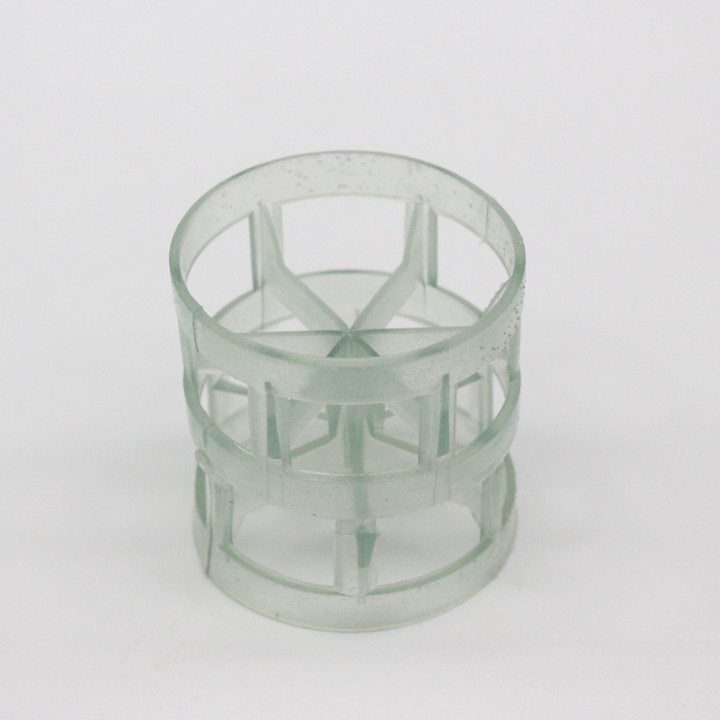

Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Other plastic random packing products
