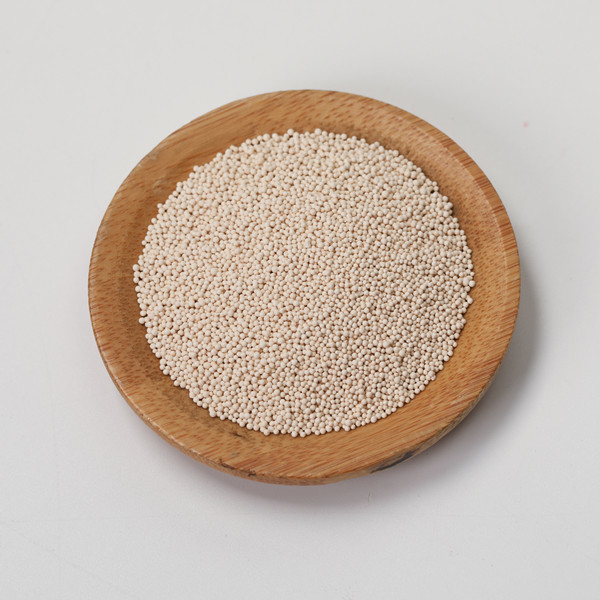

Small Bead 0.4-0.8mm Zeolite 13X For Medical Oxygen Generator

Basic Information
Place of Origin: China
Brand Name: NK CHEM
Certification: ISO, COA, REACH test, MSDS
Model Number: NK-13X
Minimum Order Quantity: 25KG
Price: depends on quantity
Packaging Details: 25kg carton drum, 150kg iron drum
Delivery Time: 15 days for one 20ft container
Payment Terms: L/C, D/P, T/T, Western Union, paypal
Supply Ability: 240 ton per month
Product Name: Zeolite 13x, Molecular Sieve 13x, Mol Sive 13x Material: Alumino Silicate
Shape: Bead, Ball, Sphere, Graules Diameter: 0.5-0.9mm
Application: Production Of Bulk Oxygen In PSA Units

0.8mm Zeolite 13X


0.4mm Zeolite 13X


Small Bead Zeolite 13X

Zeolite 13x molecular sieve is also called zeolite 13x, 13x molecular sieve, it is a Chemical Auxiliary Agent. We have zeolite pellet, zeolite balls. Welcome to inquiry zeolite 13x price.
product name zeolite 13x molecular sieve, zeolite 13x, 13x molecular sieve
type 13X molecular sieve
brand Naike
shape pellet, sphere
diameter 1-2mm, 2-3mm, 2.5-5mm
classfication Chemical Auxiliary Agent
color as picture
package carton box, iron drum
MOQ 100 kilograms
regenetion yes
delivery within 7 days
place of origin jiangxi, China
price FOB shenzhen
payment term T/T, L/C, west union
application air seperationi, oxygen generator, APG molecular sieve, PSA molecular sieve
Zeolite 13x introduction:

Zeolite 13X(13x molecular sieve) is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.
It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.
Typical Chemical Formula
Na2O . Al2O3 . (2.8±0.2) SiO2 . (6~7)H2O
SiO2 : Al2O3 2.6-3.0
Zeolite 13x (13x molecular sieve) technical Parameter

Item Unit Technical data
Shape   Pellet Sphere
Diameter mm 1.5-1.7 3.0-3.3 1.7-2.5 3.0-5.0
Size ratio up to grade % ≥98 ≥98 ≥96 ≥96
Bulk density g/ml ≥0.68 ≥0.68 ≥0.68 ≥0.68
Wear ratio % ≤0.10 ≤0.20 ≤0.10 ≤0.10
Crushing strength N ≥30/cm ≥45/cm ≥25/piece ≥65/piece
Static water adsorption % ≥23.5 ≥23.5 ≥23.5 ≥23.5
Static CO2 adsorption % ≥18 ≥18 ≥18 ≥18
Water content, as shipped % ≤1.5 ≤1.5 ≤1.5 ≤1.5

1) Removal of CO2 and moisture from air (air pre-purification) and other gases.
2) Separation of enriched oxygen from air.
3) Removal of mercaptans and hydrogen sulphide from natural gas.
4) Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)
5) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
6) Removal of n-chained compositions from aromatics.
7) Production of bulk oxygen in PSA units .
8) Production of medical oxygen in small scale oxygen concentrators
Zeolite 13x (13x molecular sieve) can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process
Zeolite 13x (13x molecular sieve) are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.

Pingxiang Naike Chemical Industry Equipment Packing Co., Ltd. (also known as NKCHEM), the top leading mass transfer product manufacturer of tower packing (column packing) and chemical ceramic. NKCHEM was established from the consortion of several existing factories with a long history.
Welcome to inquiry our zeolite 13x molecular sieve price.
