3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen

Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001:2000 & MSDS
Model Number: Zeolite 13X
Minimum Order Quantity: 1 - 499 kilograms
Price: $39.90+kilogram
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1 - 1000+kilograms+PER DAY
Features: Oxygen Concentrator Usage: Petroleum Additives, Plastic Auxiliary Agents, Water Treatment Chemicals
Purity: >95% Other Names: Li Molecular Sieve
Product: Lithium Molecular Sieve Application: High Purity Oxygen Production
Static N2 Adsorption: ≥23% Bulk Density: 0.61-0.64 G/ml
N2/O2 Separation: ≥6.2 Water Content: ≤0.5%
Size: 0.8~1.2 Mm
Highlight:

Medical Oxygen Li Molecular Sieve

,

Molecular Sieve LIX Zeolite

,

LIX Zeolite 13X

3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve LIX Zeolite 13X Lithium zeolite oxygen For Oxygen Concentrator3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 0
Product Parameters
It is a high performance lithium exchanged low silica form of the X-type zeolite with exceptional nitrogen capacity to provide optimal performance in the separation of oxygen fromair in medical oxygen concentrators. It is developed and designed for the production of up to 95% oxygen rich air streams in medical oxygen concentrators with air flows up to 10 liters per minute.There are three mechanisms of adsorption separation: steric hindrance effect, kinetic effect and equilibrium effect.

The test items
unit
the first
note
NKOX-100
NKOX-101
NKOX-103
Particle size
mm
1.6-2.5
0.4-0.8
1.3-1.7
~
Static nitrogen adsorption
NK/kg
≥22
≥23
≥22
1bar , 25°C
Nitrogen/oxygen separation coefficient
~
≥6.2
≥6.3
≥6.2
1bar, 25°C
Crushing Strength
N
≥25
~
≥15
The average
Bulk density
g/ml
≥0.62
≥0.62
≥0.61

Screening
%wt
≥97
≥95
≥95
Standard screen
Water content
%wt
≤0.5
≤0.5
≤0.5
K.E.(550°C)

Application
steel, nonferrous metallurgy, chemical industry, furnaces energy saving, environmental protection, paper making, aquaculture, health care.

Characteristics
Lithium based molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high efficiency of oxygen/nitrogen separation.
In addition to ethanol, a well-designed and manufactured sieve is not only used to dehydrate the ethanol hydrated vapors, but is highly useful for dehydrating other types of chemicals too. Thus, gives a facility to use this system in future operations as well.
It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen.
The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.
Details Images

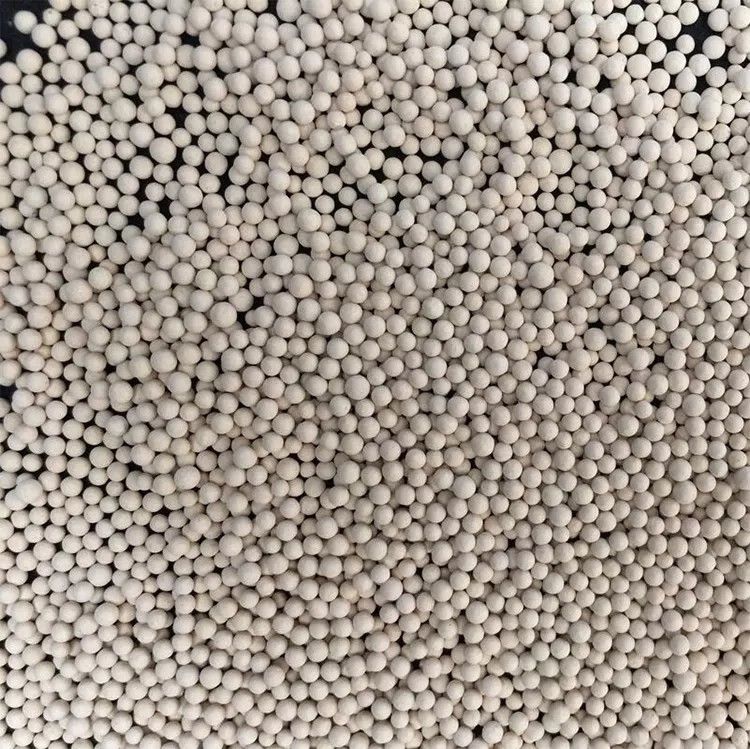

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 1

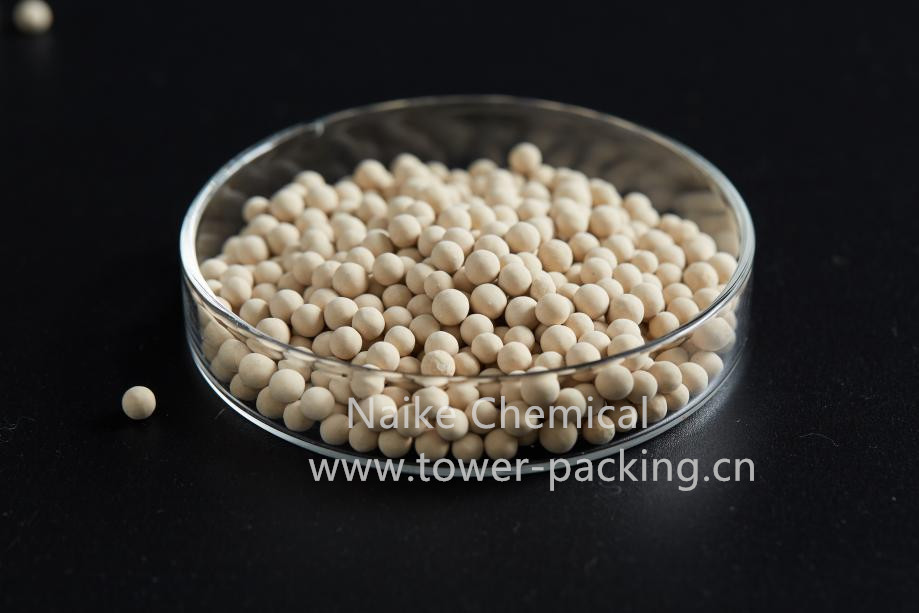

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 2

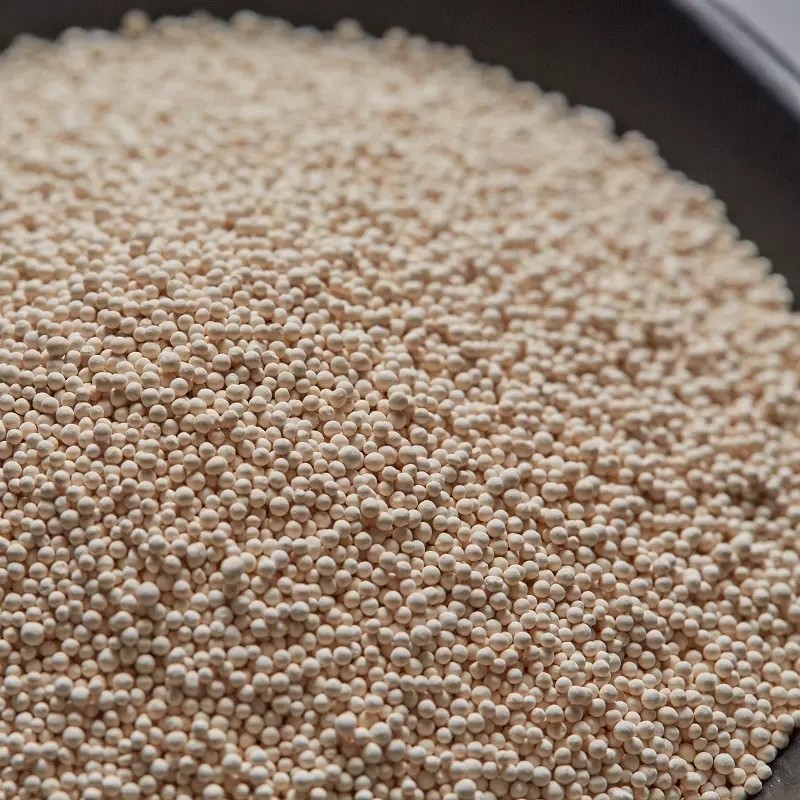

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 3

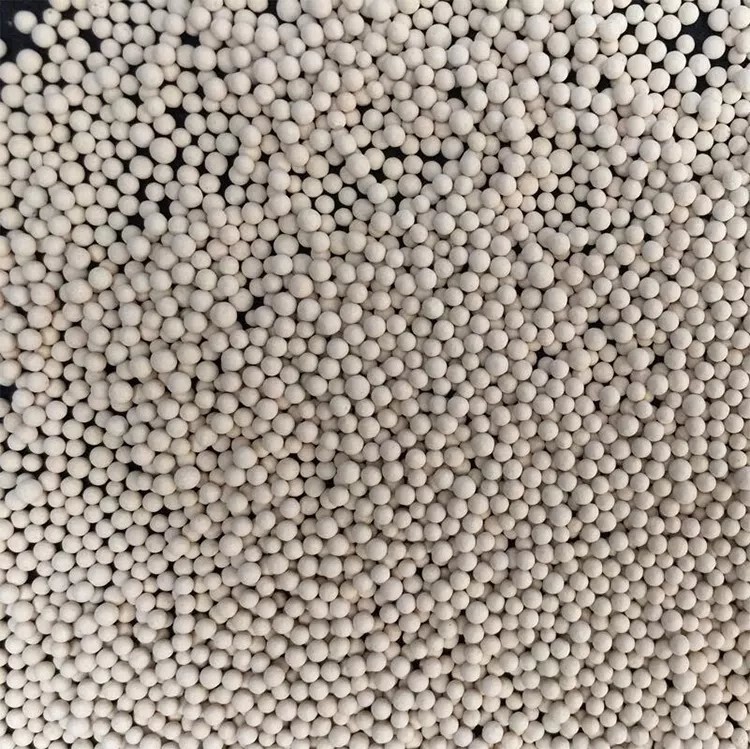

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 4

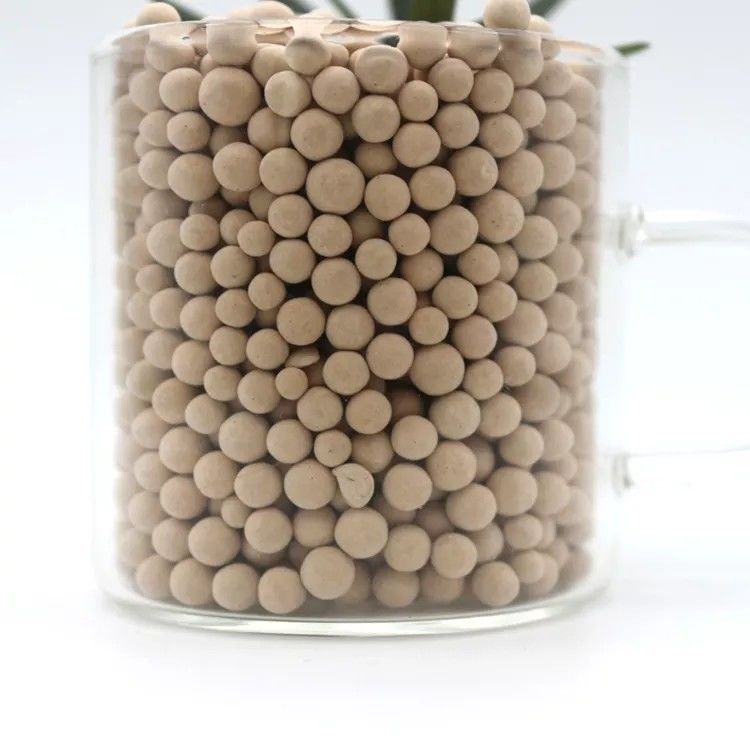

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 5

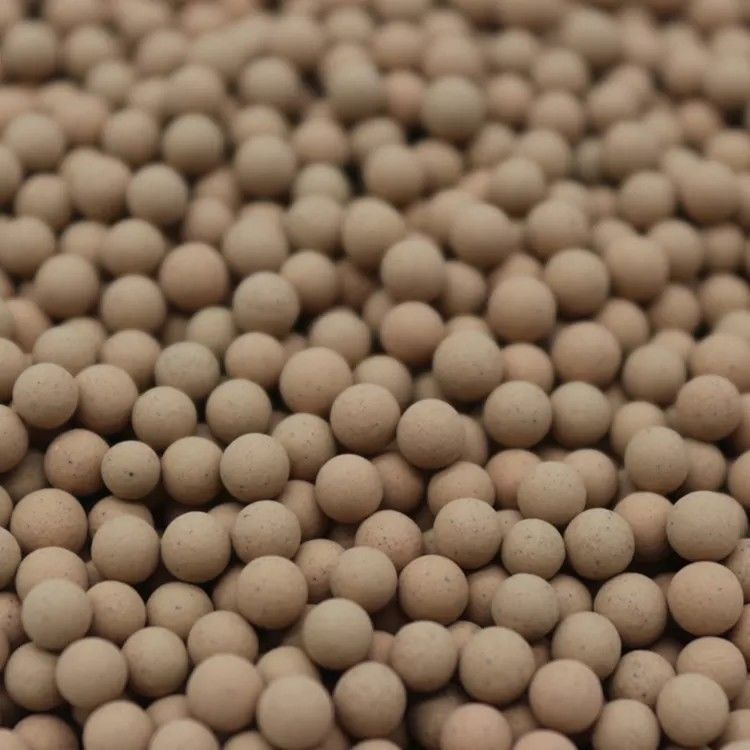

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 6
Recommend Products

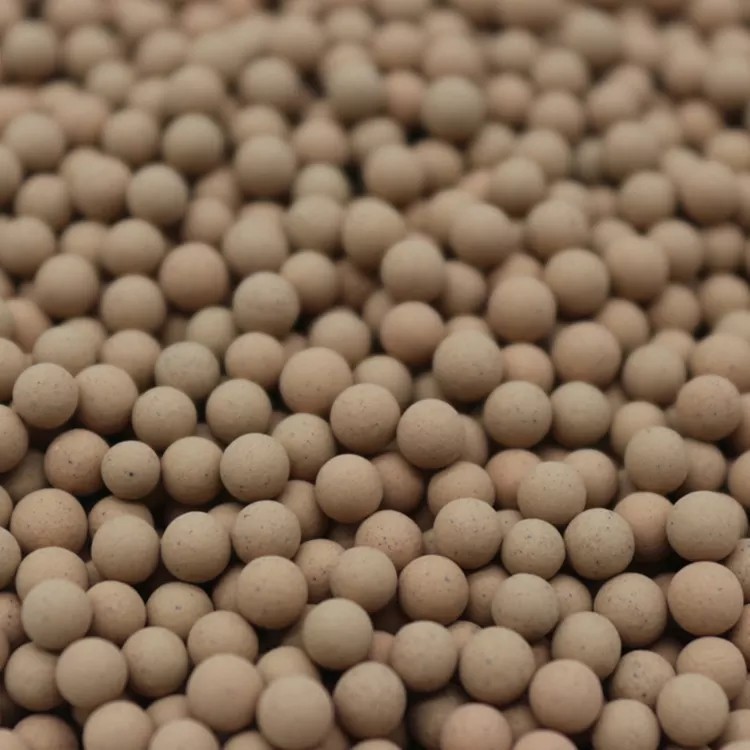

3-10L Medical Oxygen Li Molecular Sieve LIX Zeolite Lithium Zeolite Oxygen 7
