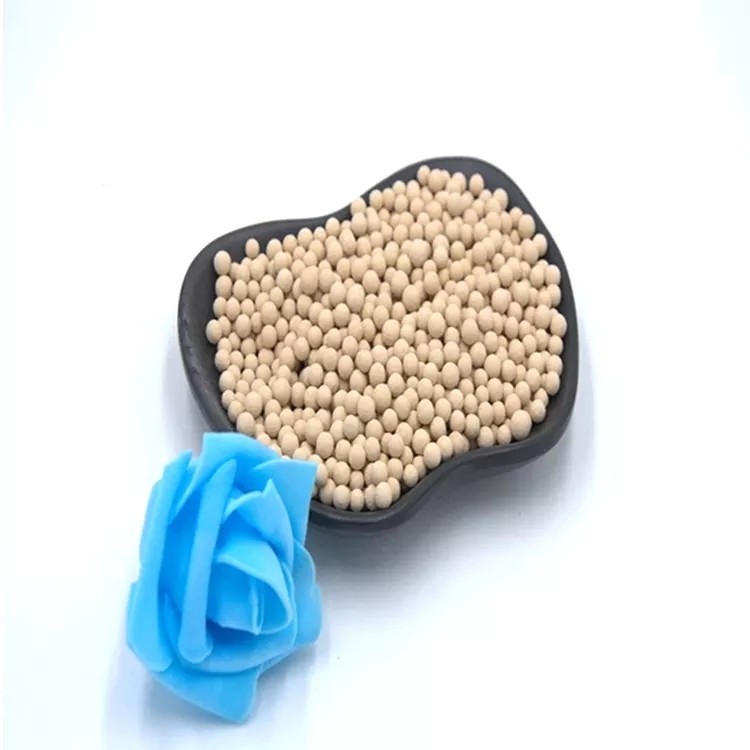

0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve

0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve
Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001:2000 & MSDS
Model Number: Zeolite 13X
Minimum Order Quantity: 1 kilogram/kilograms
Price: $50.00 - $500.00/ kilogram
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1 - 1000+kilograms+PER DAY
Contact Now
MF: Na2O. Al2O3. (2.8±0.2) SiO2. (6~7)H2O Purity: >92%
Type: Adsorbent Usage: Paper Chemicals, Petroleum Additives, Plastic Auxiliary Agents, Water Treatment Chemicals
Shape: Pellet & Sphere & Powder Application: Air Separation
Static Water Adsorption (%): ≥27 Static CO2 Adsorption (%): ≥18.5
Bulk Density (g/ml): 0.65-0.70
Highlight:

2.5mm Oxygen Zeolite 13x

,

1.6mm Oxygen Zeolite 13x

,

13x-Hp Molecular Sieve Adsorbent

0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-hp Molecular Sieve Adsorbent Molecular Sieve For Oxygen Concentrator Zeolite 13x0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 0
Product Parameters
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 1
It is a high performance lithium exchanged low silica form of the X-type zeolite with exceptional nitrogen capacity to provide optimal performance in the separation of oxygen fromair in medical oxygen concentrators. It is developed and designed for the production of up to 95% oxygen rich air streams in medical oxygen concentrators with air flows up to 10 liters per minute.There are three mechanisms of adsorption separation: steric hindrance effect, kinetic effect and equilibrium effect.


Technical Parameter:
Item
Unit
Sphere(granular)
Shape
/
NKXPSA
Diameter
mm
θ1.2~1.8
θ1.6~2.36
Bulk Density
kg/L
0.62~0.68
0.62~0.68
Crushing strength
N/Pellet
≥10
≥15
Abrasion ratio
%wt
≤0.3
Static N2 absorption
ml/g
≥22.0
N2 /O2 separation coefficient
/
≥4.1
Static water absorption
%wt
≥28.0
Water content
%wt
≤1.0
Absorption pressure for oxygen production
KP
50
Desorption pressure
KP
-50
Outlet oxygen concentration
%
93
Oxygen production capacity
/ton Molecular sieve
45m3/per ton Molecular Sieve ≤1.0

Application
steel, nonferrous metallurgy, chemical industry, furnaces energy saving, environmental protection, paper making, aquaculture, health care.

Characteristics
Lithium based molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high efficiency of oxygen/nitrogen separation.
In addition to ethanol, a well-designed and manufactured sieve is not only used to dehydrate the ethanol hydrated vapors, but is highly useful for dehydrating other types of chemicals too. Thus, gives a facility to use this system in future operations as well.
It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen.
The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.
Details Images
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 2
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 3
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 4
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 5
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 6
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 7
Recommend Products
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 8
Company Profile
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 9
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 10
Exhibition
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 11
Cooperation Case
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 12
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 13
0.4-0.8mm 1.6-2.5mm Oxygen Zeolite 13x-Hp Molecular Sieve Adsorbent Molecular Sieve 14
FAQ
Q1.Q:What are your main products?
A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc...

Q2:Why to choose us?
A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price

Q3:What is the MOQ?
A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton.

Q4:What is the delivery time?
A:It will takes about 3-5 days. But the exact time is according to actual situation.

Q5:How do I pay for my purchase order?
A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc...

Q6:Can I have my own customized product?
A:Yes, your customized requirements are welcome.
