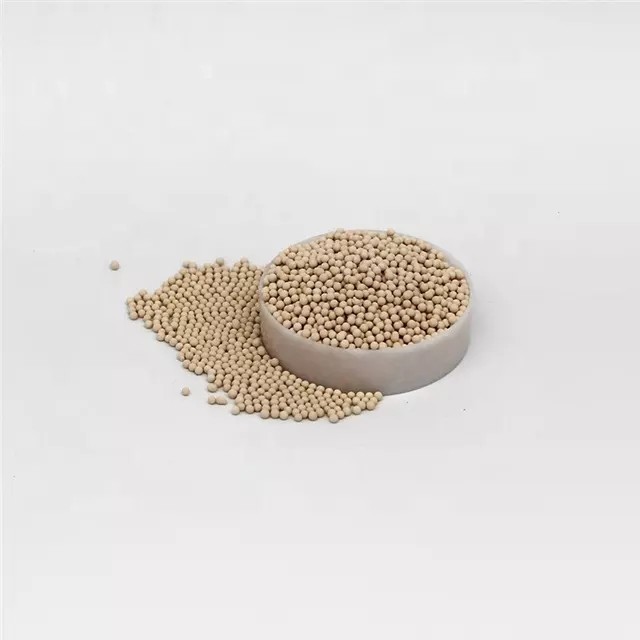

Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen

Basic Information
Place of Origin: China
Brand Name: NK CHEM
Certification: ISO, COA, REACH test, MSDS
Model Number: NK-13X
Minimum Order Quantity: 1 kilogram
Price: $50.00 - $500.00/ kilogram
Packaging Details: 25kg carton drum, 150kg iron drum
Delivery Time: 15 days for one 20ft container
Payment Terms: L/C, D/P, T/T, Western Union, paypal
Supply Ability: 240 ton per month
Product Name: Zeolite 13x, Molecular Sieve 13x, Mol Sive 13x Material: Alumino Silicate
Shape: Bead, Ball, Sphere, Graules Diameter: 0.5-0.9mm
Application: Production Of Bulk Oxygen In PSA Units Other Names: Molecular Sieve Oxygen
Usage: Paper Chemicals, Petroleum Additives, Plastic Auxiliary Agents, Water Treatment Chemicals Product: Molecular Sieve For Oxygen Concentrator
Static Water Adsorption (%): ≥27 Static CO2 Adsorption (%): ≥18.5
Bulk Density (g/ml): 0.65-0.70 Bulk Density(g/cm3): ≥0.62
Scrushing Strength (%): 30 LOI M/m (%): <1.5
Features: Oxygen Concentrator
Highlight:

Zeolite 13X Apg Molecular Sieve

,

Apg Molecular Sieve 13X

,

Oxygen Concentrator Zeolite 13X

Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 0
Product Parameters
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 1
It is a high performance lithium exchanged low silica form of the X-type zeolite with exceptional nitrogen capacity to provide optimal performance in the separation of oxygen fromair in medical oxygen concentrators. It is developed and designed for the production of up to 95% oxygen rich air streams in medical oxygen concentrators with air flows up to 10 liters per minute.There are three mechanisms of adsorption separation: steric hindrance effect, kinetic effect and equilibrium effect.


Technical Parameter:
Item
Unit
Sphere(granular)
Shape
/
NKXPSA
Diameter
mm
θ1.2~1.8
θ1.6~2.36
Bulk Density
kg/L
0.62~0.68
0.62~0.68
Crushing strength
N/Pellet
≥10
≥15
Abrasion ratio
%wt
≤0.3
Static N2 absorption
ml/g
≥22.0
N2 /O2 separation coefficient
/
≥4.1
Static water absorption
%wt
≥28.0
Water content
%wt
≤1.0
Absorption pressure for oxygen production
KP
50
Desorption pressure
KP
-50
Outlet oxygen concentration
%
93
Oxygen production capacity
/ton Molecular sieve
45m3/per ton Molecular Sieve ≤1.0


Application
steel, nonferrous metallurgy, chemical industry, furnaces energy saving, environmental protection, paper making, aquaculture, health care.

Characteristics
Lithium based molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high efficiency of oxygen/nitrogen separation.
In addition to ethanol, a well-designed and manufactured sieve is not only used to dehydrate the ethanol hydrated vapors, but is highly useful for dehydrating other types of chemicals too. Thus, gives a facility to use this system in future operations as well.
It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen.
The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.



Details Images
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 2
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 3
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 4
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 5
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 6
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 7
Recommend Products
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 8
Company Profile
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 9
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 10
Exhibition
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 11
Cooperation Case
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 12
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 13
Zeolite 13X Apg Molecular Sieve 13X For Oxygen Concentrator synthetic zeolite medical oxygen 14
FAQ
Q1.Q:What are your main products?
A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc...

Q2:Why to choose us?
A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price

Q3:What is the MOQ?
A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton.

Q4:What is the delivery time?
A:It will takes about 3-5 days. But the exact time is according to actual situation.

Q5:How do I pay for my purchase order?
A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc...

Q6:Can I have my own customized product?
A:Yes, your customized requirements are welcome.
