| Place of Origin: | China |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001:2008 |
| Model Number: | 125, 160, 180, 200, S |
| Minimum Order Quantity: | 1m3 |
| Price: | depends on quantity |
| Packaging Details: | wooden frame, wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000m3 per Year |
| Model Number: | 125, 160, 180, 200, S | Material: | Alumina Ceramic |
|---|---|---|---|
| Clasification: | Ceramic Packing, Ceramic Media | Application: | Heat Recovery |
| MOQ: | 1 Cubic Metres | Shape: | Block |
| Advantage: | Excellent Heat Conductivity, Low Pressure Drop | ||
| Highlight: | Thermal Oxidizer Multi Layer Ceramic Media,Multi Layer Ceramic Media 125 |
||

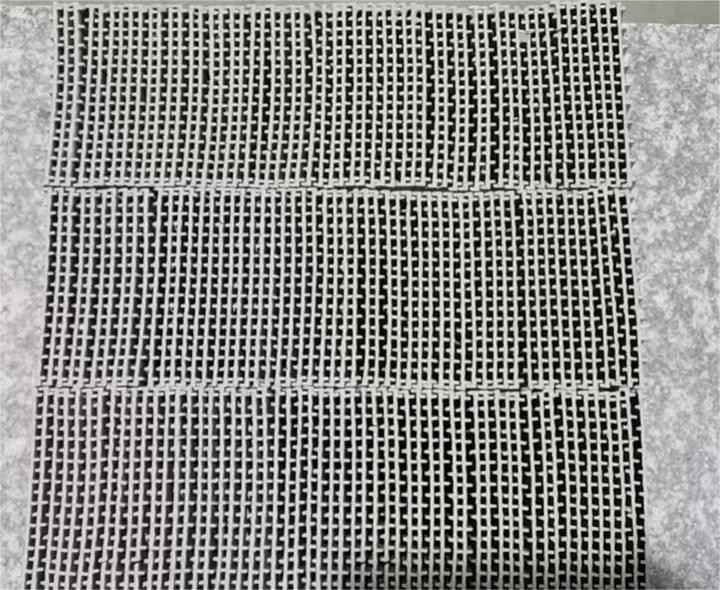

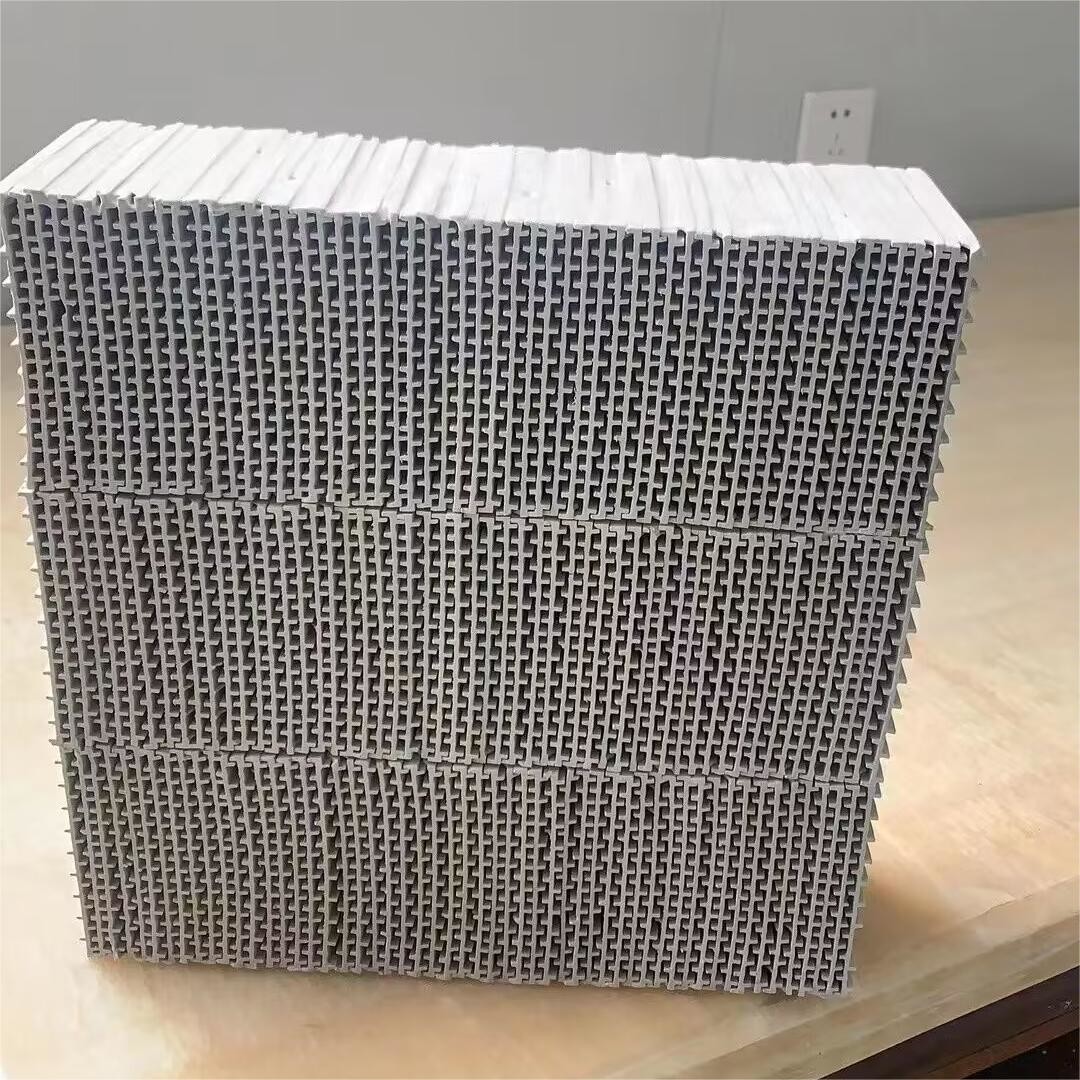

Multi-layer ceramic media(mlm) is a type of structured packing which designed for VOC emission reduction equipment——Regenerative Thermal Oxidation (RTO). M L M is made of ceramic plate with prong. MLm obtained US patent for invention and Chinese patent for utility models because of its special structure design.
The product has been exported to Europe, the United States, Southeast Asia,more than 30 countries and is the first choice of heat exchange media for RTO system which used for the VOCs emission of chemical, metallurgy, painting and so on.
| Item | Unit | 125 | 160 | 180 | 200 | S Type |
| Dimension | mm | 305x305x101 | 305x305x101 | 305x305x101 | 305x305x101 | 305x305x101 |
| Surface area | m2/m3-ft2/ft3 | 410/125 | 525/160 | 590/180 | 655/200 | 722/220 |
| Density | g/cm3 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 |
| Weight | Kg/m3 | 703 | 873 | 981 | 1096 | 1052 |
| Acid Resistance | % | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| Water Absorption | % | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 |
| Free Space | % | 69 | 61 | 56 | 51 | 54 |
| Max Working Temperature | ℃ | 1180 | 1180 | 1180 | 1180 | 1180 |
| Heat Capacity | (kJ/m2-°C) | 670 | 810 | 940 | 1070 | 1070 |
| Crushing Strength | lb/ft2 | 4210 | 5380 | 6120 | 7340 | 7340 |
| Feature | High heat storage performance | |||||
| High heat transfer efficiency | ||||||
| Higher specific surface area | ||||||
| Low pressure drop | ||||||
| Very low operating costs | ||||||
Advantage:
