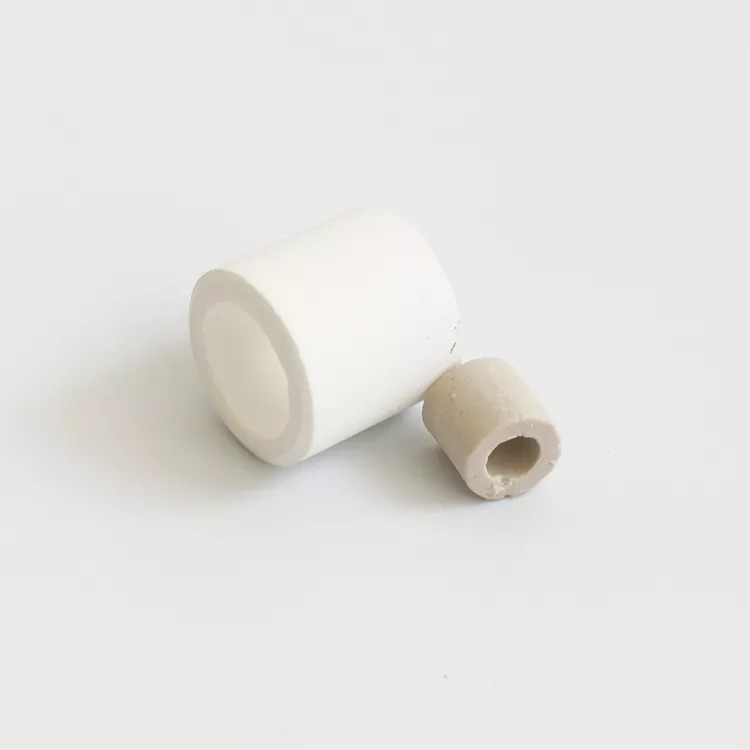

Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm

Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm
Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001:2008
Model Number: NK-CRR
Minimum Order Quantity: 1 cubic meter
Price: $250.00 - $560.00/ cubic meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 cubic meters per Month
Contact Now
Application: Industrial Ceramic, Tower Packing Material: Alumina Ceramic
Diameter (mm): 16,25,38,50,76mm Surface Area: 789, 330, 190, 93, 90
Void Volume(%): 73, 70, 78, 81, 68 Al2O3: 17-23%
SiO2: >73% Product Name: Packed Tower Ceramic Raschig Ring
Keywords: Ceramic Raschig Ring
Highlight:

Ceramic Raschig Ring 25mm

,

Ceramic Raschig Ring 38mm

,

Packed Tower Ceramic Raschig Ring

Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm for drying column stripping towerPacked Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 0
Product Parameters
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 1

Ceramic Raschig Ring random tower packings (column packing) have excellent acid resistance and heat resistance. Ceramic Raschig Ring can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Raschig Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.


Advantage of Ceramic Pall Ring ●High chemical stability ●High mechanical strength ●Excellent heat endurance



Application of Ceramic Pall Ring ● Transfer towers both small and large diameter ● Deep vacuum towers where low pressure drop is crucial ● Distillation, absorption etc ● High pressure towers where capacity significantly exceeds conventional trays

Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 2
Chemical Specification
SiO2
Al2O3
Fe2O3
Other
65-85%
15-30%
<=1.5%
5-15%
Physical Properties
Specific weight
water adsorption
Acid resistance
Crushing strength
Temperature
Moh's hardness
Ignition lost
2.5g/cm3
<=0.5%
>99.5%
>=130MPa
>1400℃
>=7
<=5.0%
Specification of Ceramic Pall Ring
Name
Size
Diameter (mm)
Weight(kg/m3)
Pieces(m3)
Surface Area(m2/m3)
Void(%)
Ceramic Pall Ring
ø6
6*6*1
737
2640000
789
73
ø8
8*8*1.5
737
1210000
710
70
ø10
10*10*2
700
750,000
440
70
ø13
13*13*2.5
690
330,000
330
70
ø16
16*16*3
750
178,000
305
73
ø25
25*25*3
700
42,000
190
78
ø38
38*38*4
630
12,000
126
75
ø50
50*50*5
600
5,200
93
81
ø76
76*76*9
575
2,500
90
68
ø100
100*100*10
700
900-1030
70
70
ø150
150*150*15
790
270-300
50
68
Details Images
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 3
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 4
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 5
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 6
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 7
Recommend Products
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 8
Company Profile
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 9
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 10
Exhibition
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 11
Cooperation Case
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 12
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 13
Packed Tower Ceramic Raschig Ring 6mm 25mm 38mm 50mm 14
FAQ
Q1:What are your main products?
A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc...

Q2:Why to choose us?
A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price

Q3:What is the MOQ?
A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton.

Q4:What is the delivery time?
A:It will takes about 3-5 days. But the exact time is according to actual situation.

Q5:How do I pay for my purchase order?
A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc...

Q6:Can I have my own customized product?
A:Yes, your customized requirements are welcome.
