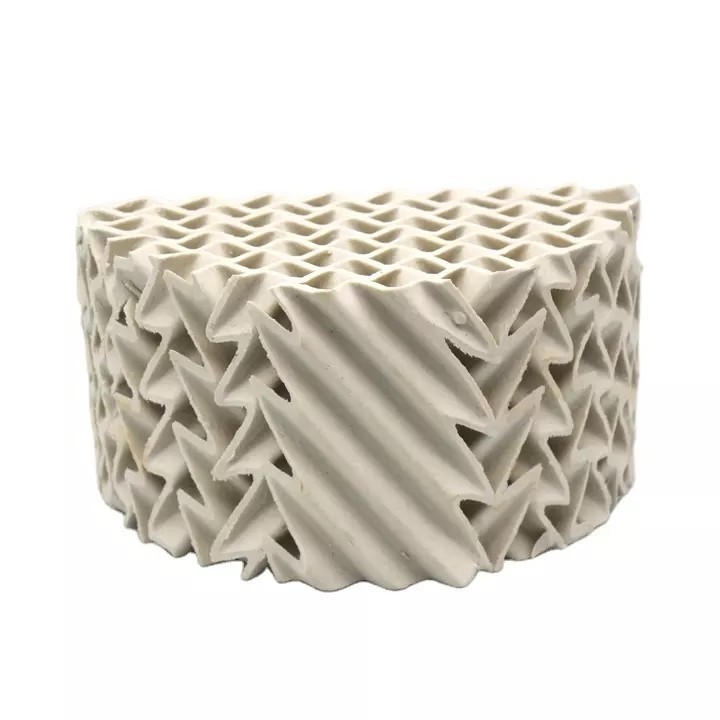

Light Corrugated Ceramic Packing 125ys Tower Structured Packings

Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO9001-2008
Model Number: ceramic structured packing
Minimum Order Quantity: 1 cubic meter
Price: $700.00 - $1,000.00/ cubic meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1 - 1000+kilograms+PER DAY
Product Name: Light Corrugated Ceramic Packing 125ys Tower Structured Packings Liquid Load M3/m2h: 0.15-100
Corrugated Plate Thickness: 0.8-2.5mm Classification: Ceramic Tower Packing
Highlight:

Light Corrugated Ceramic Packing

,

Ceramic Packing 125ys

,

Tower Structured Packings

Light Corrugated Ceramic Packing 125ys Tower Structured Packings

Light Corrugated Ceramic Packing 125ys Tower Structured Packings

Light Corrugated Ceramic Packing 125ys Tower Structured Packings 0





Introduction:

Ceramic structured packing is made up of many packing unit bodies that share the same geometry shape. Corrugated ceramic packing is called Kelapak packingabroad, it is also called high efficiency packing, because its separation-efficiency is several times to more than ten times of loose cops packing. Compared with loose cops plate tower packing. Corugated plate ceramic packing has a great number of advantages such as high-efficiency, large thruput, low liquid holdup, unsharp amplification and good operability.


Advantage:
The most economical range is F-factor 1.5-2.0
Pressure drop of each theoretical sheet is 0.3-1 mbar
Minimum liquid load is 2001/m2h
A distributor should be installed for evry 3-4 meters inside packing towers with diameters of more than 300 mm

Application:
Fining process of corrosive mixtures, which have strict requirements for pressure drop and number of theoretical sheets.
Vacuum treatment under absolute pressure higher than 1 mbar.
Fining and distillation of halogen organic compounds.


Tech Data

Type

Specific Surface Area

m 2/m 3

Corrugated

Plate thickness mm



Heaping weight

Kg/m 3

Void

Volume

%

Pressure

Drop mmHg/m

Theoretical

Pieces

m -1

Liquid

Load m 3/m 2h

Max

Factorm/s (kg/m3)

-1

100Y 100 2.5±0.5 300 87.5 1.6 1 0.2-100 3.2
125Y 125 2.5±0.5 330 85 1.8 1-1.5 0.2-100 3.0
160Y 160 2.2±0.5 370 84 2 1.5-2 0.2-100 2.8
250Y 250 1.4±0.5 420 80 2 2.2 0.2-100 2.6
350Y 350 1.2±0.5 470 78 2.5 2.8 0.2-100 2.5
400Y 400 1.2±0.2 500 75 3 3 0.2-100 2.0
450Y 450 1.0±0.2 520 72 4 4 0.2-100 1.8
550Y 550 0.8±0.2 620 74 5.5 5-6 0.18-100 1.4
700Y 700 0.8±0.2 650 72 6 7 0.15-100 1.3
100X 100 2.5±0.5 280 92 1.5 1 0.2-100 3.5
125X 125 2.2±0.5 300 90 1.8 1.5 0.2-100 3.2
160X 160 1.4±0.5 350 85 2 1.8 0.2-100 3.0
250X 250 1.2±0.5 380 80 2.5 2.3 0.2-100 2.8
350X 350 1.2±0.5 450 78 3 2.5 0.2-100 2.6
400X 400 1.2±0.2 480 75 4 2.8 0.2-100 2.2
450X 450 1.0±0.2 500 72 4.5 3-4 0.2-100 2.0
470X 470 1.0±0.2 440 75 5 5 0.2-100 1.8
550X 550 0.8±0.2 620 74 5.5 5-6 0.18-100 1.4
700X 700 0.8±0.2 650 72 6 7 0.15-100 1.3



Service:
1.We promise to reply your inquiry within 24hours.
2.Experienced foreign trader with professional product knowledge.
3.Value on business credite , promise to protect your data, design,patent info.



welcome to inquiry our light corrugated ceramic structured packing price.

Light Corrugated Ceramic Packing 125ys Tower Structured Packings 1

Light Corrugated Ceramic Packing 125ys Tower Structured Packings 2 Light Corrugated Ceramic Packing 125ys Tower Structured Packings 3 Light Corrugated Ceramic Packing 125ys Tower Structured Packings 4

Light Corrugated Ceramic Packing 125ys Tower Structured PackingsLight Corrugated Ceramic Packing 125ys Tower Structured PackingsLight Corrugated Ceramic Packing 125ys Tower Structured PackingsLight Corrugated Ceramic Packing 125ys Tower Structured PackingsLight Corrugated Ceramic Packing 125ys Tower Structured PackingsLight Corrugated Ceramic Packing 125ys Tower Structured Packings

Light Corrugated Ceramic Packing 125ys Tower Structured Packings
