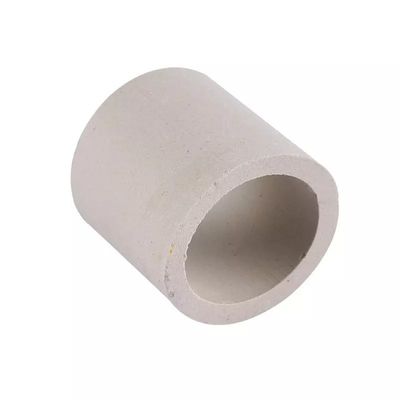

Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing

Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing
Basic Information
Place of Origin: china
Brand Name: NKCHEM
Certification: ISO9001:2008
Model Number: Ceramic Rashing Ring
Minimum Order Quantity: 1 Cubic Mete
Price: USD+250.00+1Cubic Meter
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 cubic meters per Month
Contact Now
Highlight:

6mm Ceramic Raschig Ring

,

10mm Ceramic Raschig Ring

,

50mm Ceramic Raschig Ring

Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing,industrial Ceramic CuttingCeramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 0
Product Parameters
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 1

Ceramic Raschig Ring random tower packings (column packing) have excellent acid resistance and heat resistance. Ceramic Raschig Ring can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Raschig Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.


Advantage of Ceramic Pall Ring ●High chemical stability ●High mechanical strength ●Excellent heat endurance



Application of Ceramic Pall Ring ● Transfer towers both small and large diameter ● Deep vacuum towers where low pressure drop is crucial ● Distillation, absorption etc ● High pressure towers where capacity significantly exceeds conventional trays

Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 2
Chemical Specification
SiO2
Al2O3
Fe2O3
Other
65-85%
15-30%
<=1.5%
5-15%
Physical Properties
Specific weight
water adsorption
Acid resistance
Crushing strength
Temperature
Moh's hardness
Ignition lost
2.5g/cm3
<=0.5%
>99.5%
>=130MPa
>1400℃
>=7
<=5.0%
Specification of Ceramic Pall Ring
Name
Size
Diameter (mm)
Weight(kg/m3)
Pieces(m3)
Surface Area(m2/m3)
Void(%)
Ceramic Pall Ring
ø6
6*6*1
737
2640000
789
73
ø8
8*8*1.5
737
1210000
710
70
ø10
10*10*2
700
750,000
440
70
ø13
13*13*2.5
690
330,000
330
70
ø16
16*16*3
750
178,000
305
73
ø25
25*25*3
700
42,000
190
78
ø38
38*38*4
630
12,000
126
75
ø50
50*50*5
600
5,200
93
81
ø76
76*76*9
575
2,500
90
68
ø100
100*100*10
700
900-1030
70
70
ø150
150*150*15
790
270-300
50
68
Details Images
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 3
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 4
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 5
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 6
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 7
Recommend Products
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 8
Company Profile
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 9
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 10
Exhibition
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 11
Cooperation Case
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 12
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 13
Ceramic Raschig Ring Random 6mm 10mm 25mm 50mm Alumina Ceramic Tower Packing 14
FAQ
Q1:What are your main products?
A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc...
Q2:Why to choose us?
A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price
Q3:What is the MOQ?
A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton.
Q4:What is the delivery time?
A:It will takes about 3-5 days. But the exact time is according to actual situation.
Q5:How do I pay for my purchase order?
A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc...
Q6:Can I have my own customized product?
A:Yes, your customized requirements are welcome.
