| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | NAIKE |
| Model Number: | NK-CSP |
| Minimum Order Quantity: | 1 Cubic Meter/Cubic Meters (Min. Order) |
| Price: | CN¥4,902.66 - CN¥7,003.80 |
| Packaging Details: | carton box or wooden box or as per request |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 100 Cubic Meter/Cubic Meters per Month |
| Application: | Industrial Ceramic | Application: | Vacuum Treatment |
|---|---|---|---|
| Certificate:ISO9001: | ISO9001:2008 | Main Composition: | SiO2, Al2O3 |
| Shape: | Corrugated | Classification: | Ceramic Tower Packing |
| Product Name: | For Distillation Column Structured Packing Corrugated Plate | ||
| Highlight: | Corrugated Plate Ceramic Tower Packing,Distillation Column Ceramic Tower Packing,Distillation Column Structured Packing |
||

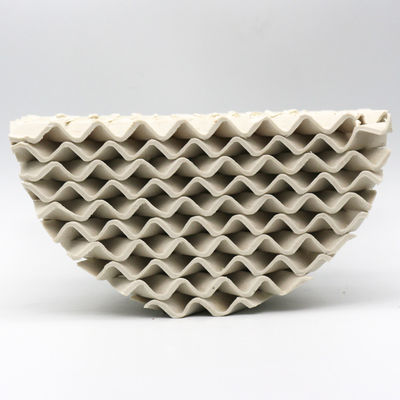

For Distillation Column Structured Packing Corrugated Plate
Introduction:
Ceramic structured packing is made up of many packing unit bodies that share the same geometry shape. Corrugated ceramic packing is called Kelapak packingabroad, it is also called high efficiency packing, because its separation-efficiency is several times to more than ten times of loose cops packing. Compared with loose cops plate tower packing. Corugated plate ceramic packing has a great number of advantages such as high-efficiency, large thruput, low liquid holdup, unsharp amplification and good operability.
Advantage:
The most economical range is F-factor 1.5-2.0
Pressure drop of each theoretical sheet is 0.3-1 mbar
Minimum liquid load is 2001/m2h
A distributor should be installed for evry 3-4 meters inside packing towers with diameters of more than 300 mm
Application:
Fining process of corrosive mixtures, which have strict requirements for pressure drop and number of theoretical sheets.
Vacuum treatment under absolute pressure higher than 1 mbar.
Fining and distillation of halogen organic compounds.
Tech Data
| Type | Specific Surface Area | Corrugated | Heaping weight | Void | Pressure | Theoretical | Liquid | Max |
| 100Y | 100 | 2.5±0.5 | 300 | 87.5 | 1.6 | 1 | 0.2-100 | 3.2 |
| 125Y | 125 | 2.5±0.5 | 330 | 85 | 1.8 | 1-1.5 | 0.2-100 | 3.0 |
| 160Y | 160 | 2.2±0.5 | 370 | 84 | 2 | 1.5-2 | 0.2-100 | 2.8 |
| 250Y | 250 | 1.4±0.5 | 420 | 80 | 2 | 2.2 | 0.2-100 | 2.6 |
| 350Y | 350 | 1.2±0.5 | 470 | 78 | 2.5 | 2.8 | 0.2-100 | 2.5 |
| 400Y | 400 | 1.2±0.2 | 500 | 75 | 3 | 3 | 0.2-100 | 2.0 |
| 450Y | 450 | 1.0±0.2 | 520 | 72 | 4 | 4 | 0.2-100 | 1.8 |
| 550Y | 550 | 0.8±0.2 | 620 | 74 | 5.5 | 5-6 | 0.18-100 | 1.4 |
| 700Y | 700 | 0.8±0.2 | 650 | 72 | 6 | 7 | 0.15-100 | 1.3 |
| 100X | 100 | 2.5±0.5 | 280 | 92 | 1.5 | 1 | 0.2-100 | 3.5 |
| 125X | 125 | 2.2±0.5 | 300 | 90 | 1.8 | 1.5 | 0.2-100 | 3.2 |
| 160X | 160 | 1.4±0.5 | 350 | 85 | 2 | 1.8 | 0.2-100 | 3.0 |
| 250X | 250 | 1.2±0.5 | 380 | 80 | 2.5 | 2.3 | 0.2-100 | 2.8 |
| 350X | 350 | 1.2±0.5 | 450 | 78 | 3 | 2.5 | 0.2-100 | 2.6 |
| 400X | 400 | 1.2±0.2 | 480 | 75 | 4 | 2.8 | 0.2-100 | 2.2 |
| 450X | 450 | 1.0±0.2 | 500 | 72 | 4.5 | 3-4 | 0.2-100 | 2.0 |
| 470X | 470 | 1.0±0.2 | 440 | 75 | 5 | 5 | 0.2-100 | 1.8 |
| 550X | 550 | 0.8±0.2 | 620 | 74 | 5.5 | 5-6 | 0.18-100 | 1.4 |
| 700X | 700 | 0.8±0.2 | 650 | 72 | 6 | 7 | 0.15-100 | 1.3 |
Service:
1.We promise to reply your inquiry within 24hours.
2.Experienced foreign trader with professional product knowledge.
3.Value on business credite , promise to protect your data, design,patent info.
welcome to inquiry our light corrugated ceramic structured packing price.
