| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | NK CHEM |
| Model Number: | Ceramic cross partition ring |
| Minimum Order Quantity: | >=1 Cubic Meters |
| Price: | CN¥7.01 |
| Packaging Details: | Jumbo bag or customerized. |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 300 Cubic Meter/Cubic Meters per Month |
| Material: | Alumina Ceramic | Application: | Industrial Ceramic, Desiccation,absorption,cooling,washing |
|---|---|---|---|
| Apply Industrial: | Petrochemical,chemical,metallurgy,gas An Oxygen Generation | ||
| Highlight: | Ceramic Cross Partition Ring,Tower Packing Partition Ring |
||
A kind of random packing increases its surface area, improving significantly the mass transfer efficiency of vapor and liquid.

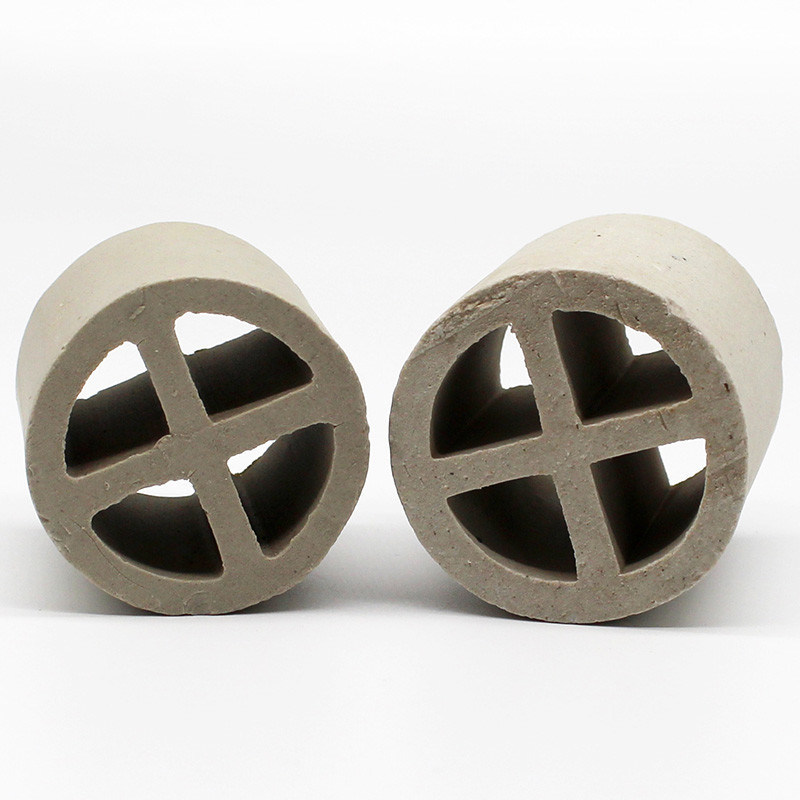

Ceramic Cross Partition Ring is a kind of random packing further improved on the basis of Raschig Ring, adding the cross clapboard inside the ring. It increases the ring’s surface area, improving significantly the mass transfer efficiency of vapor and liquid.
Generally, cross partition ring is required to stack orderly in the column due to its big size. Currently, cross partition rings, size between Φ80-Φ150mm, are used as the support material of other random packing at the bottom of column, which accumulation voidage is over 60%.
With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Cross Partition Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.
Technical Date:
| Name | Normal mm |
Diameter*Height* Thickness mm |
Surface area m2/m3 |
Void space % |
Bulk density kg/m3 |
No.elements per/m3 |
Packing factor m-1 |
| Cross-partition ring | ø50 | 50*50*5 | 135 | 50 | 520 | 5600 | 1080 |
| ø80 | 80*80*8 | 120 | 53 | 780 | 2100-2500 | 806 | |
| ø100 | 100*100*10 | 110 | 56 | 750 | 900-1000 | 626 | |
| ø150 | 150*150*15 | 60 | 58 | 680 | 270-300 | 308 |
