| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NAIKE |
| Certification: | ISO |
| Model Number: | NK-CRR |
| Minimum Order Quantity: | 1 cubic metre |
| Price: | depends on quantity |
| Packaging Details: | woven bag/jumbo bag |
| Delivery Time: | 12 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Ceramic Super Intalox Saddle Ring | Material: | Ceramic |
|---|---|---|---|
| Diameter: | 16mm, 25mm, 38mm, 50mm, 76mm | Application: | Distillation Column |
| Classfication: | Tower Packing, Random Packing, Column Packing | ||
| Highlight: | Ceramic Random Packing,Super Intalox Saddle Ring |
||
Ceramic Random Packing Super Intalox Saddle Ring For Packing Tower
Product description
Ceramic Super Intalox saddle is a kind of random packing further developed on the basis of Saddle Ring, which both smooth edges are changed to hackly or ripple edges.Comparing with normal saddle, such structure of super saddle can ensure that interspace will be increased a lot when saddles are stacked in the column randomly.
Therefore, the resistance to vapor-liquid is decreased and it facilitates flow and distribution of vapor-liquid through the packing bed. As a result, pressure drop is low and mass transfer efficiency is high.
With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Super Saddle can resist high or low temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.
Ceramic Intalox Saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Chemical Composition:
| SiO2 | Al2O3 | SiO2+Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
| >69% | 15-23% | >92% | <1% | <0.25% | <0.2% | 2-4% | <1% |
Physical properties
| Index | Value |
| Specific gravity(g/cm3) | 2.25-2.35 |
| Water absorption(%) | <0.5 |
| Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 |
| Firing temperature(Degree C) | 1280-1320 |
| Softening point(Degree C) | >1400 |
| Density(kg/m3) | 2350 |
Size & Specification:
| Name | Normal mm |
Diameter*Height* Thickness mm |
Surface area m2/m3 |
Void space % |
Bulk density kg/m3 |
No.elements per/m3 |
Packing factor m-1 |
| Super Intalox | ø25 | 25*19*3 | 160 | 78 | 530 | 52000 | 337 |
| ø38 | 38*30*4 | 102 | 80 | 480 | 16000 | 199 | |
| ø50 | 50*40*5 | 88 | 81 | 450 | 7300 | 166 | |
| ø76 | 76*57*9 | 58 | 82 | 430 | 1600 | 105 |
Package info
woven bag, 25kg/bag
jumbo bag, 1000kg/bag

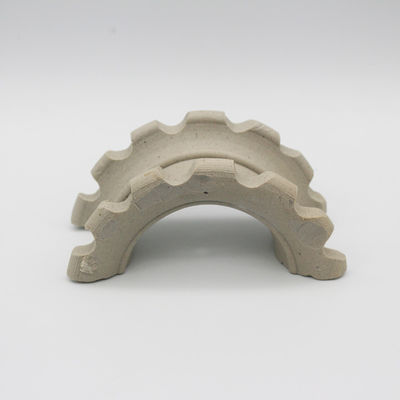

Product photo
Production and shipment
Other metal random packing products
Pall ring, Raschig ring, Cascade ring, Intalox saddle ring, Super intalox saddle ring, cross partition ring,
conjugate ring, ceramic berl saddle
