| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Model Number: | NK-PSR |
| Minimum Order Quantity: | 1 cubic metre |
| Price: | depends on quantity |
| Packaging Details: | woven bag |
| Delivery Time: | 10 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Intalox Saddle Ring | Material: | PP |
|---|---|---|---|
| Diameter: | 25mm, 38mm, 50mm, 76mm | Application: | Absorption And Stripping Service |
| Classfication: | Tower Packing, Random Packing, Column Packing | ||
| Highlight: | Plastic Intalox Saddle Ring,Intalox Saddle Ring Tower Packing,PVDF Intalox Saddle Ring |
||
PP Plastic Tower Packing Super Saddle Ring 25mm, 38mm, 50mm, 76mm
Product description
Plastic intalox saddle ring has the characteristic of low pressure drop, large void space, large flux, high efficiency, low energy consumption etc. Furthermore excellent distribution in tower packing, it is widely apply in the separation and absorption process, device of reducing pressure. The system of deviating sulfur. Isolation of Ethylbenzene Toluene, Trimethylpentane etc.
Advantage: low pressure drop, large void space, large flux, high efficiency, low energy consumption
Application: Absorption,
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 |
0.93-0.94 |
1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Main technical index:
| Dia | Surface area (m²/m³) | Void Space (%) | Number per m³ | Bulk density (kg/m³) | F Factor m-1 |
| 25 | 288 | 85 | 97680 | 102 | 467 |
| 38 | 265 | 95 | 25200 | 91 | 309 |
| 50 | 250 | 96 | 9400 | 75 | 282 |
| 76 | 200 | 97 | 3700 | 59 | 220 |
Note: The above data are reference to material PP.
Package info
| package | volume | volume/bag | |
| 20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
| 40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
| 40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |

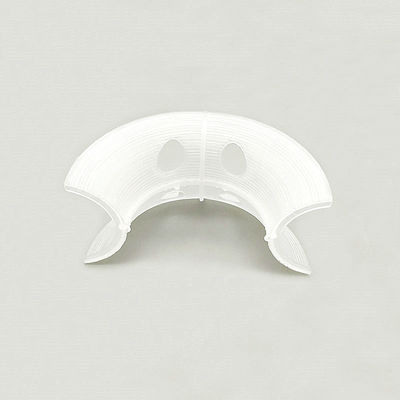

Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Other plastic random packing products
Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,
hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing
