| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | NAIKE |
| Model Number: | NK-MSP |
| Minimum Order Quantity: | 1.0 Cubic Meter/Cubic Meters (Min. Order) |
| Price: | CN¥4,902.66 - CN¥10,505.70 |
| Packaging Details: | wooden box, as the customers' requirements |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 150 Cubic Meter/Cubic Meters per Month |
| Shape: | Metal Structured Packing | Material: | Stainless Steel, Copper, Alumina |
|---|---|---|---|
| Diameter: | 100-12000mm | Liquid Load: | 0.2 To More Than 300 |
| Application: | Absorption, Desportption | Type: | 125Y, 250Y, 350Y, 500Y, Etc |
| Highlight: | Metal Column Packing Metal,Metal Structured Packing,Metal Tower Packing |
||
METAL STRUCTURED PACKINGS,METAL COLUMN PACKING metal structured packing metal tower packing
Metal Structured Packings,Metal Column Packing
-------It keeps the properties of gauze packing and mellapale packing.
Geometric Character Parameter:
| Name | Size | Peak Height mm |
Surface Area n/m3 |
Theory Sheet Numbers 1/m |
Void Rate % |
Pressure Drop Mpa/m |
F Factor m/s(kg/m3)0.5 |
| MCP | CP-1 | 4.5 | 651 | 6-8 | 7.6 | 2-3.5×10-4 | 1.4-2.2 |
| CP-2 | 6.5 | 454 | 4.5 | 8.6 | 1.6-1.8×10-4 | 2-2.4 |
Metal Structured Packing detail:

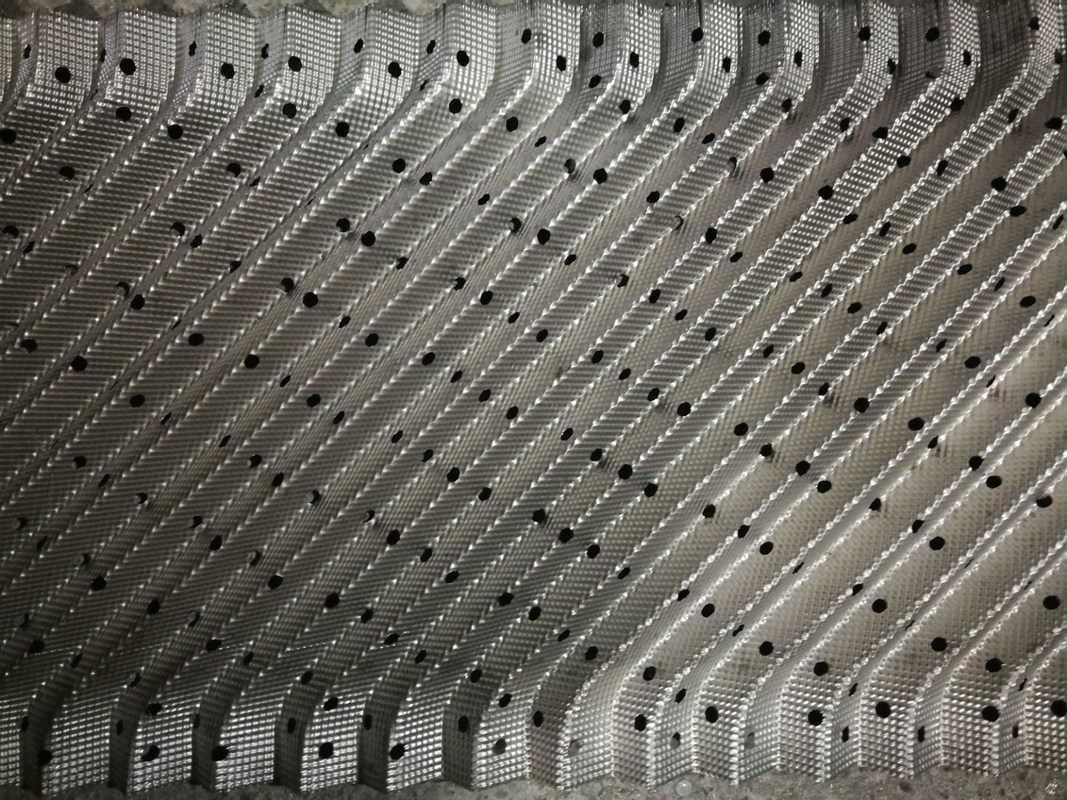

Metal Structured Packing (Metal Perforated Plate Corrugated Packing) is made of perforated plate with channel corrugation on surface, and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.
Material
Metal perforated plate corrugated packing is available in a wide range of materials, including stainless steels, 304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.
Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
The technical specification:
|
Type |
specific surface are m2/m3 |
Void Volume % |
Heaping Weight Kg/m3 |
Wave Height mm |
Theoretical plate number m-1 |
Δ P Pa/m |
Max F-factor m/s(kg/m3)0.5 |
| 125Y | 125 | 98 | 85-100 | 25.4 | 1.0-2.0 | 150 | 3.0 |
| 250Y | 250 | 97 | 170-200 | 12.5 | 2.0-3.0 | 200 | 2.6 |
| 350Y | 350 | 94 | 240-280 | 9 | 2.0-2.5 | 300 | 2.0 |
| 500Y | 500 | 92 | 360-400 | 6.3 | 4.0-5.0 | 180 | 1.8 |
