| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO |
| Model Number: | metal pall ring |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $900.00 - $1,500.00/ cubic meter |
| Packaging Details: | Enhanced plastic super sacks on a wooden pallet or carton.Other packing is available upon your request . |
| Delivery Time: | 15 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Metal Pall Ring, Pall Packing Ring, Packing Pall Ring | Material: | SS304, SS 304L, SS316, SS316, Carbon Steel |
|---|---|---|---|
| Diameter: | 38mm | Application: | Distillation Column |
| Classfication: | Tower Packing, Random Packing, Column Packing | Size: | 16,25,38,50,76,80,90mm |
| Advantage: | Suit For Deeper Beds | ||
| Highlight: | Carbon Steel Metal Random Packing,Metal Pall Ring Packing 76mm,Metal Pall Ring Packing 25mm |
||

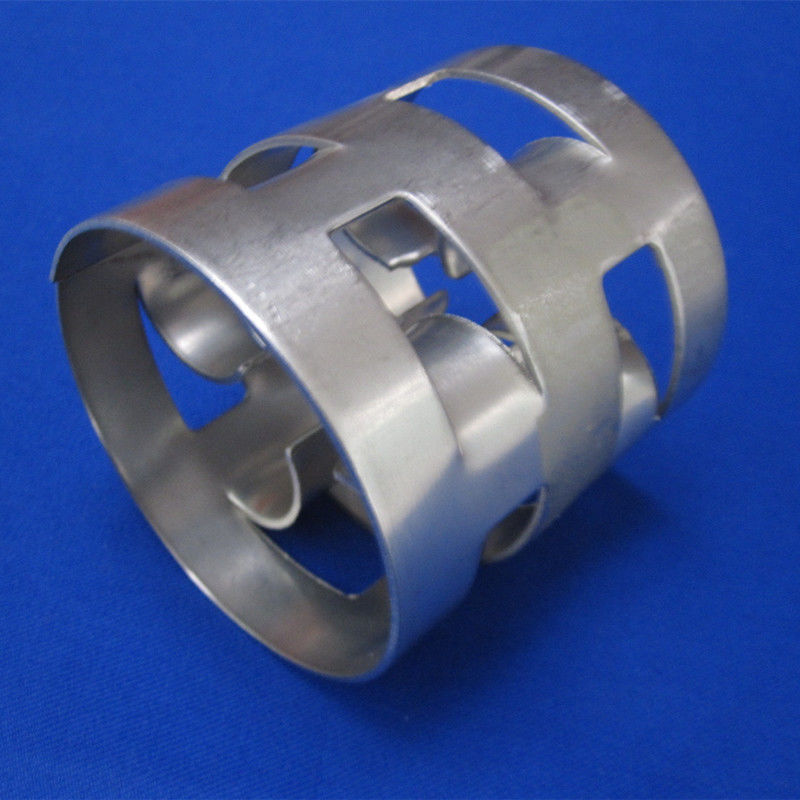

Metal Packing Metal Pall Ring
37 years' experiences in manufacturing
Size: 16mm,25mm,38mm,50mm
Material:304,304L,410,316,316L,carbon steel
| Name | Normal mm |
Diameter*Height* Thickness mm |
Surface area m2/m3 |
Void space % |
Bulk density kg/m3 |
No.elements per/m3 |
Packing factor m-1 |
Metal Packing Metal Pall Ring |
ø16 | 16*16*0.4 | 239 | 92.8 | 365 | 205000 | 299 |
| ø25 | 25*25*0.6 | 219 | 93.4 | 427 | 55900 | 269 | |
| ø38 | 38*38*0.8 | 129 | 94.5 | 365 | 13000 | 153 | |
| ø50 | 50*50*1.0 | 112.3 | 94.9 | 395 | 6500 | 131 |
Note:The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L
