| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Model Number: | NK-MSR |
| Minimum Order Quantity: | 1 cubic metre |
| Price: | depends on quantity |
| Packaging Details: | jumbo bag and pallet, one 20ft can load 20m3 |
| Delivery Time: | 15 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Metal Intalox Saddle Ring | Material: | Stainless Steel, 304 |
|---|---|---|---|
| Diameter: | 25mm, 38mm, 50mm, 76mm | Application: | Distillation Column |
| Classfication: | Tower Packing, Random Packing, Column Packing | ||
| Highlight: | 304 Metal Intalox Saddle Ring,Metal Intalox Saddle Ring,Intalox Saddle Ring Tower Packing |
||
304 Metal Intalox Saddle Ring Tower Packing For Distillation And Absorption Tower
Product description
Metal Intalox Saddle Ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays. Metal Intalox Saddle Ring or metal saddle is available in various sizes, which give different combinations of efficiency and pressure drop.
Advantages:
low pressure drop and high efficiency
large effective interfacial area
high mechanical strength
low cost
Application:
Transfer towers both small and large diameter
Deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays
Distillation, absorption etc
High pressure towers
Technical data
| Name | Normal mm |
Diameter*Height* Thickness mm |
Surface area m2/m3 |
Void space % |
Bulk density kg/m3 |
No.elements per/m3 |
Packing factor m-1 |
| Intalox saddles | ø25 | 25*20*0.6 | 185 | 96 | 409 | 101160 | 209 |
| ø38 | 38*30*0.8 | 112 | 96 | 365 | 24680 | 137 | |
| ø50 | 50*40*1.0 | 75 | 96 | 291 | 10400 | 85 | |
| ø76 | 76*60*1.2 | 58 | 97 | 245 | 3320 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Material available:
carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Package info
| package | bags | loaded volumn | |
| 20GP container | jumbo bag | 20 | 20m3 |
| 40GP container | jumbo bag | 44 | 44m3 |
| 40HQ container | jumbo bag | 44 | 50m3 |
One jumbo bag can load 1-1.5m3 metal pall ring.

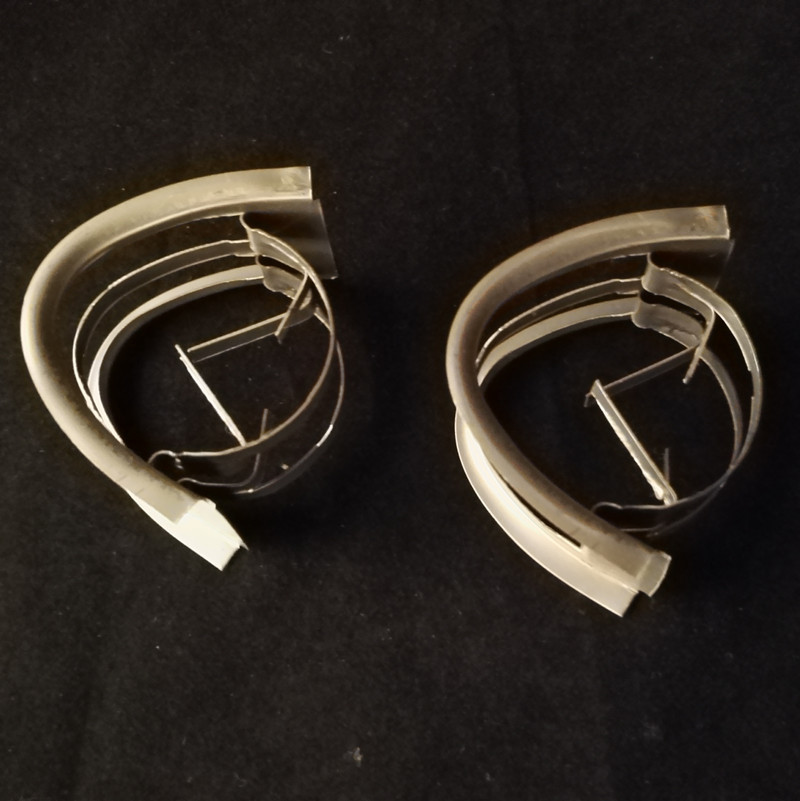

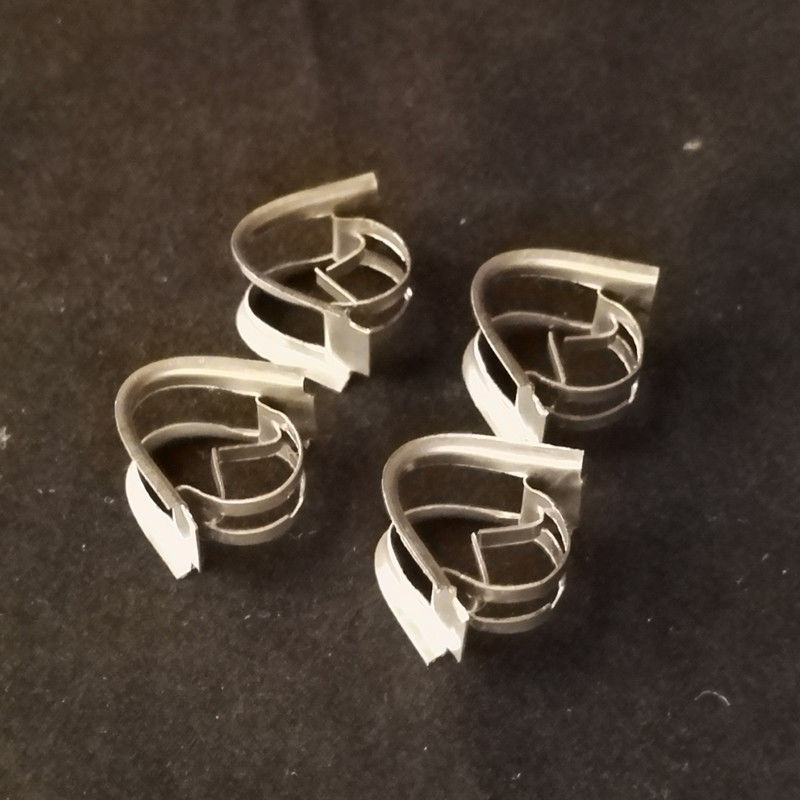

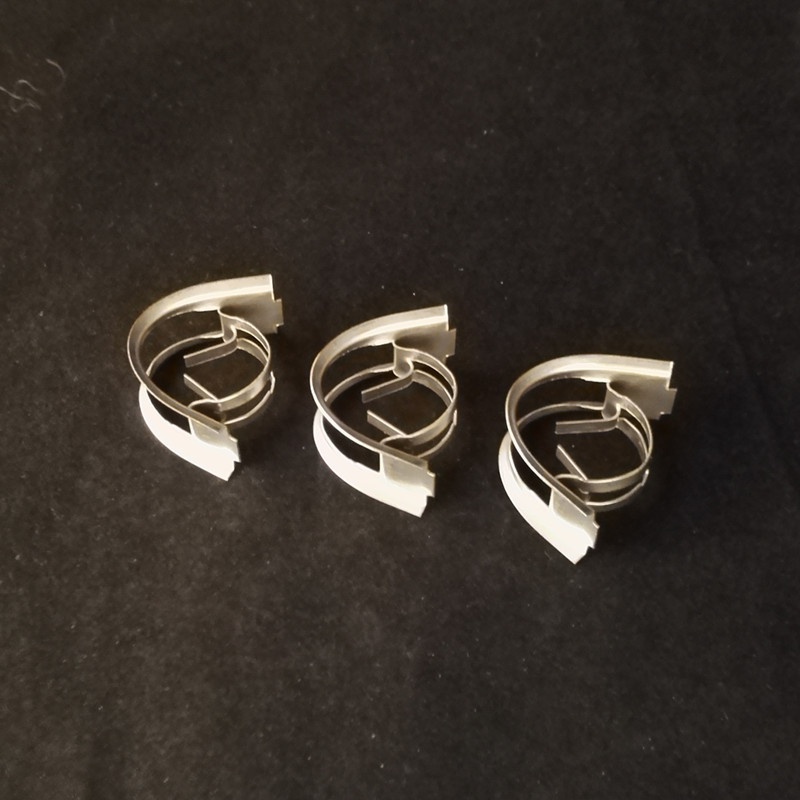

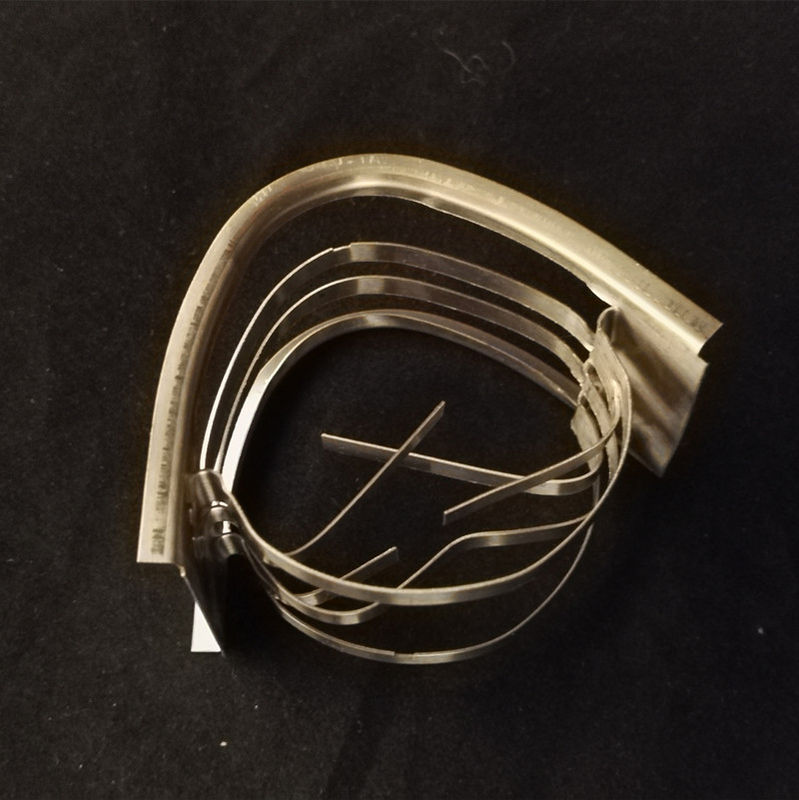

Product photo
Production and shipment
Other metal random packing products
Pall ring, Raschig ring, Super raschig ring, Cascade ring, Intalox saddle ring, IMTP packing, Conjugate ring, VSP ring, metal improved inner arc ring
