Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp

Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp
Basic Information
Place of Origin: CHINA JIANGXI
Brand Name: NKCHEM
Certification: ISO
Model Number: zsm-5, zeolite zsm-5
Minimum Order Quantity: 1 ton
Price: $1,800.00 - $2,400.00/ ton
Packaging Details: Conventional packing
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability: 1 - 1000+kilograms+PER DAY
Contact Now
CAS No.: 63231-69-6 Other Names: Zeolite 13X
MF: Na2O. Al2O3. (2.8±0.2) SiO2. (6~7)H2O Purity: >92%
Type: Adsorbent Adsorbent Variety: Molecular Sieve
Usage: Paper Chemicals, Petroleum Additives, Plastic Auxiliary Agents, Water Treatment Chemicals Static Water Adsorption (%): ≥27
Static CO2 Adsorption (%): ≥18.5 Bulk Density (g/ml): 0.65-0.70
Highlight:

Pas Oxygen Concentrator Molecular Sieve

,

13x-hp Molecular Sieve

Molecular Sieve Maily Used in Pas Oxygen Concentrator Hot Sale 13x-hp Chemical Auxiliary Agent Pellet & Sphere & Powder

Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 0
Product Parameters
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 1
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.it also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.

Typical Chemical Formula
Na2O . Al2O3 . (2.8±0.2) SiO2 . (6~7)H2O
SiO2 : Al2O3 ≈2.6-3.0

Technical Parameter

Item
Unit
Technical data
Shape

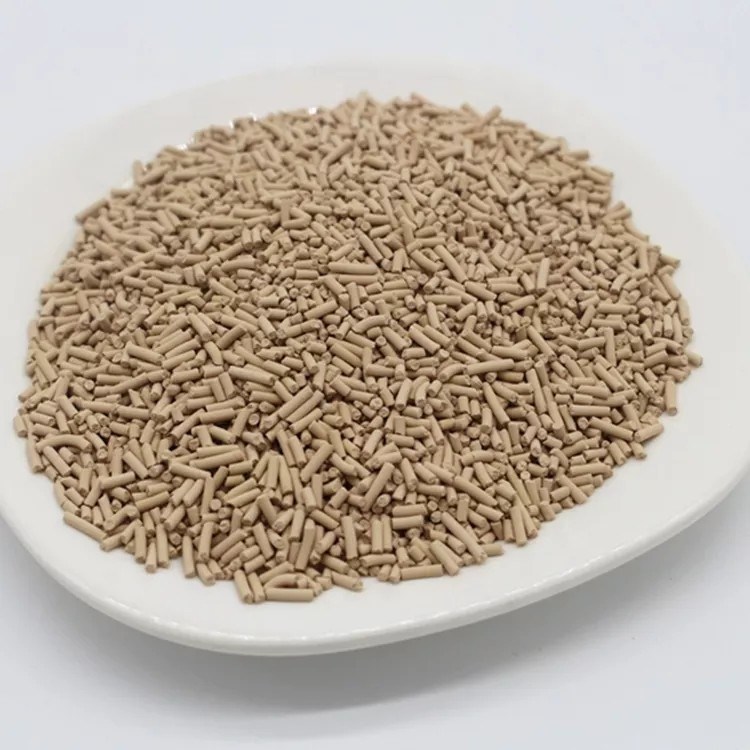

Pellet
Sphere
Diameter
mm
1.5-1.7
3.0-3.3
1.7-2.5
3.0-5.0
Size ratio up to grade
%
≥98
≥98
≥96
≥96
Bulk density
g/ml
≥0.68
≥0.68
≥0.68
≥0.68
Wear ratio
%
≤0.10
≤0.20
≤0.10
≤0.10
Crushing strength
N
≥30/cm
≥45/cm
≥25/piece
≥65/piece
Static water adsorption
%
≥23.5
≥23.5
≥23.5
≥23.5
Static CO2 adsorption
%
≥18
≥18
≥18
≥18
Water content, as shipped
%
≤1.5
≤1.5
≤1.5
≤1.5

Application
1) Removal of CO2 and moisture from air (air pre-purification) and other gases.
2) Separation of enriched oxygen from air.
3) Removal of mercaptans and hydrogen sulphide from natural gas.
4) Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)
5) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
6) Removal of n-chained compositions from aromatics.
7) Production of bulk oxygen in PSA units .
8) Production of medical oxygen in small scale oxygen concentrators

Regeneration
molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process

Size
13X - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.

Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.

Pingxiang Naike Chemical Industry Equipment Packing Co., Ltd. (also known as NKCHEM), the top leading mass transfer product manufacturer of tower packing (column packing) and chemical ceramic. NKCHEM was established from the consortion of several existing factories with a long history.




NAIKE Molecular Sieves are normally used in the process of drying gases and liquids.Molecular Sieves are a crystalline composition with uniform pores that is measured in angstroms.
This composition makes Molecular Sieve more effective than other types of desiccants.

Molecular Sieve Desiccants are extremely effective at removing water from liquids and gases. They are even more effective silica gel or activated alumina, because of their crystalline composition; they can create virtually water-free products. These sieves are veryuseful in cryogenic operations where liquefaction of gases is required and water must be eliminated to avoid freezing.

Molecular sieves offer a variety of adsorption selectivity based on molecular size. molecular affinity for the sieve crystal surface, and shape of the molecule. Using this type of system is exceptionally uncomplicated for diminishing impurities to practically indiscernible levels compared to other liquid separation systems. The ease of use and superior efficiency when compared to other adsorptionsystems makes the most popular engineering solution a molecular sieve system.

Molecular sieves are used for drying gas streams with in the petroleum industry; used todry solvent within a laboratory along with a extensive range of catalytic applications. Additionally, Molecular Sieves are used in a great many air filtration and liquid filtration scenarios.

Type of molecular sieve:3A,4A,5A,13X,Carbon
Package:Carton box;Carton drum;Steel drum;Jumbo bag
Details Images
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 2
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 3
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 4
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 5
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 6
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 7
Recommend Products
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 8
Company Profile
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 9
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 10
Exhibition
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 11
Cooperation Case
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 12
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 13
Molecular Sieve Used In PSA Oxygen Concentrator Hot Sale 13x-Hp 14
FAQ
Q1.Q:What are your main products? A:Our main products are molecular sieve, ceramic ball, plastic,ceramic and metal tower packing, column internal parts, MBBR, etc... Q2:Why to choose us? A:Naike Chemical established since 1973. * Factory direct selling * High quality control * Promopt delivery and competitive price Q3:What is the MOQ? A:Our MOQ is 1 cubic meter or 1 ton. The price will be a little higher is the quantity is less tan 1 cubic meter or 1 ton. Q4:What is the delivery time? A:It will takes about 3-5 days. But the exact time is according to actual situation. Q5:How do I pay for my purchase order? A:T/T, L/C at sight, paypal, Alibaba Trade Assurance, etc... Q6:Can I have my own customized product? A:Yes, your customized requirements are welcome.
