| Place of Origin: | JIANGXI |
|---|---|
| Brand Name: | NAIKE |
| Certification: | SGS |
| Model Number: | NKDP-010 |
| Minimum Order Quantity: | 1 Set/Sets (Min. Order) |
| Price: | USD200-USD2000 |
| Packaging Details: | carton box, wooden box |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 5000 Set/Sets per Month |
| Material: | PP, PVC, PTFE | Application: | Petrochemical Industry,Chemical Industry,gasoline |
|---|---|---|---|
| Type: | Column Internal | Size: | Customized |
| Usage: | Towers,vacuum Distillation Tower,Towers &RTO Media,vapor Liquid Seperation | Package: | Wooden Box,Ton Bags+Palletize,On Request |
| Shape: | Customized Shape,Cyliner | Response Time: | Within 24 Hours |
| After-sales Service Provided: | Yes | Advantages: | Big Operation Flexibility |
| Highlight: | Kinitted Mesh Demister Pad,PP Mesh Demister Pad,Wire Mesh Demister Pad |
||

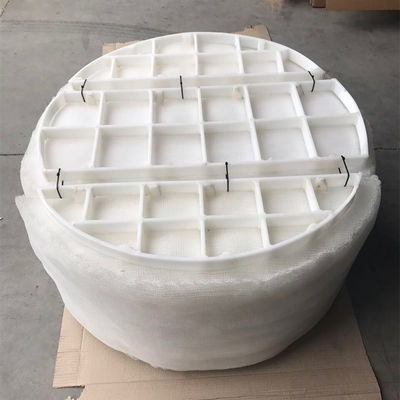

Tower Internals & Pad Mist Eliminator
Wire mesh demister, also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.
Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
Specifications
| Net Block | Grid | ||||
| Material | Code | Standard NO. | Material | Code | Standard NO. |
| Q235-A | Q235-A | GB434 | Q235-A | Q235-A | GB327 |
| 20 | 20 | BG3206 | 20 | 20 | GB711 |
| 0Gr18Ni10Ti | 321 | 0Gr18Ni9 | 304 | GB423 | |
| 0Gr17Ni12Mo2 | 316 | 0Gr18Ni10Ti | 321 | ||
| 00Gr19Ni11 | 304L | 00Gr17Ni12Mo2 | 316 | ||
| 00Gr17Ni14Mo2 | 316L | 00Gr17Ni14Mo2 | 316L | ||
| RS-2 | RS-2 | Steel Grades | 00Gr17Ni14Mo2 | 316L | |
| NS-8 | NS-80 | Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on. Note: use other materials bearing the note when ordering |
|||
| NS-80A | NS-80A | ||||
| Brass Wire | H68, H65 | GB310 | |||
| Tin-copper Wire | QSn | GB3128 | |||
| Nickel | N4, N6, N7, N8 | GB3120 | |||
| Titanium and Titanium Alloy | TA2, TA3, TC3, TC4 | GB3623 | |||
Standard type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
High efficient type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m3
Specific surface area: 403.5 m2/m3
Porosity : 0.9839ε
High Running type
Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
