| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Model Number: | NK-PCB |
| Minimum Order Quantity: | 1 cubic metre |
| Price: | depends on quantity |
| Packaging Details: | woven bag |
| Delivery Time: | 10 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Cage Ball | Material: | PP |
|---|---|---|---|
| Diameter: | 50mm | Application: | Water Treatment |
| Classfication: | Tower Packing, Random Packing, Column Packing | ||
| Highlight: | Openable Plastic Cage Ball,Cage Ball Bio Media 50mm,Plastic Cage Ball Bio Media |
||

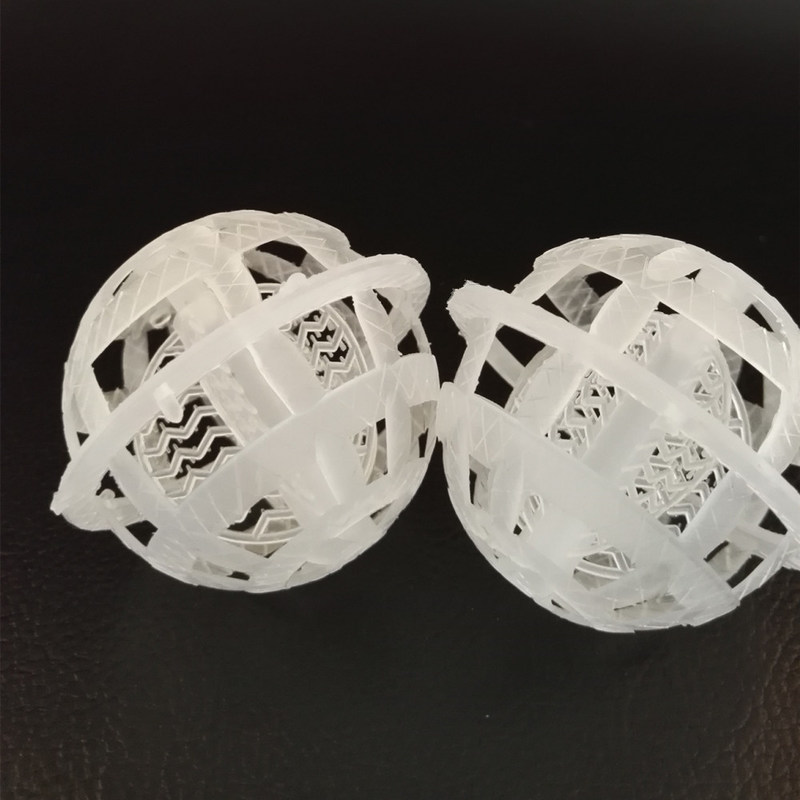

Openable Plastic Cage Ball Bio Media 50mm For Water Treatment
Product description
Plastic cage ball has these characteristics,large voidage,heat resistance,chemical corrosion resistance,low pressure drop and mass transfer unit height,high pan-point,vapor and liquid contacted fully,small proportion,high mass transfer efficiency,etc...
In a variety of media,the operation temperature is 60-150°c,it is widely usded in the packing tower in pertroleum,chemicals,chlor-alkaki,gas and environmental industries.
Besides,it can be usded in a variety of horizontal acid tanks and condensate and desalting water tanks in water treatment.This packing reduces the heat loss in large extent and the pullution of dioxide carbon and oxygen o water in acid mist and air,and protects operator's health,so as to maintain the water quality,save energy and clean up the environment.
This packing can be usded in a variety of horizontal acid tanks and condensae and desalting water tanks in water treatment. It reduces the heat loss in large extent and the pollution of dioxide carbon and oxygen to water in acid mist and aire.
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 |
0.93-0.94 |
1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Main technical index:
|
Type |
specifific surface are m2/m3 |
Void Volume % |
Heaping Weight Kg/m3 |
No.of elements n/m3 |
Packing factor m-1 |
| Φ38 | 96 | 88 | 110 | 22000 | 141 |
| Φ50 | 82 | 90 | 88 | 10480 | 112 |
Note: The above data are reference to material PP.
Package info
| package | volume | volume/bag | |
| 20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
| 40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
| 40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |
Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Other plastic random packing products
Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,
hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing
